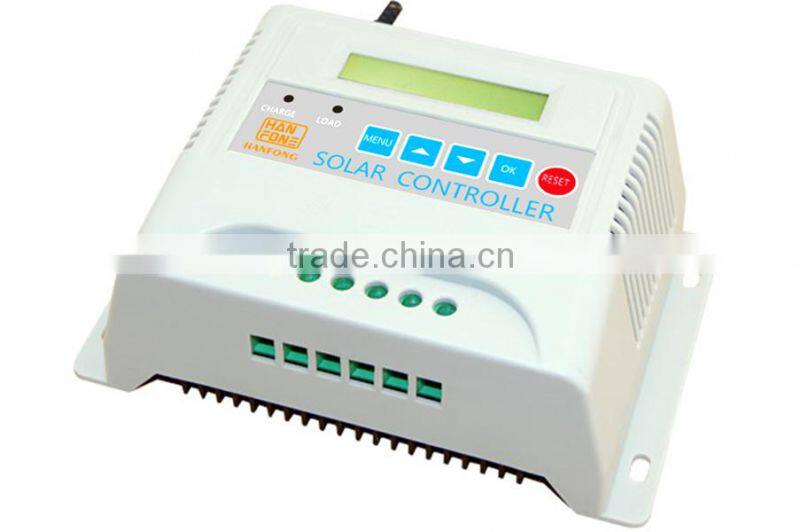

50A 12V solar battery controller with LCD display for home solar system
Charge controllers are vital components in battery-based PV systems, keeping the PV array from overcharging the batteries and optimizing charge current. Winiversal solar controller is superior in quality and compatible with most types of solar inverters. SR50 charge controller has all-around protecting functions and MPPT function for better charging the battery and protecting electrical devices. The mutual operation feature helps user regulate the charging current, charge-off voltage, etc. The efficiency is 30% more than early-developed charge controllers.
Model |
50A |
||
Rated voltage |
12V/24V Automatic voltage recognition |
||
Max charge current |
50A |
||
Max discharge current |
50A |
||
Full charge cut |
13.7V/27.4V recognize tacitly |
||
Low voltage cut |
10.5V/21V Recognize tacitlyw |
||
Low voltage restore |
12.6V/25.2V Recognize tacitly |
||
Temperature compensation |
-3mv/℃/cell |
||
Static current |
≤45mA |
||
Voltage drop |
<200mv |
||
Wire area max |
10mm² |
||
Weight |
0.82KG |
||
Size(L*W*H) |
183*120*69mm |
||
Package |
20Piece/Carton |
||
1. CPU controlled with MPPT function: able to adjust the charge current and decide if to supply the loads electricity according to the voltage of battery;
2. Compensation charging: according to various system temperatures, the controller will automatically compensate the temperature of the charging voltage;
3. LCD monitor: showing the charging current, battery voltage, environment temperature and real-time data of the charging process;
4. Temperature sensor: probing the temperature of environment and indicating the degree of charging.

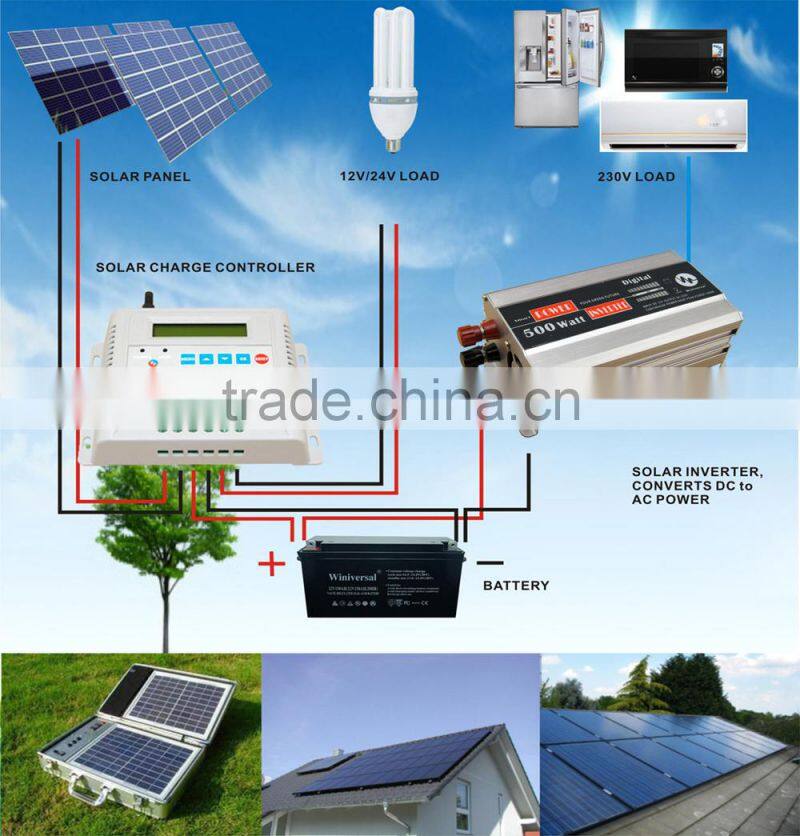

This solar charger controller is suitable for solar panel system
Over the past 19 years, we have earned many honors and certificates for company and also the products, such as Canton Fair Excellent supplier, CE, RoHS and patents certificates.
In our factory, we have most dedicated employees who work professionally in the area of PCB design, SMT mounting, welding, lead wire cutting, general assembly, testing and packing.
Guangzhou Winiversal Electric Co., Ltd was established in 1996, specializing in researching, developing, manufacturing and marketing of modified sine wave and pure sine wave power inverters.
With a skillful technical team and sales team, we are confident to provide various services to you, including design, procurement, consulting, maintenance and logistics services.
Winiversal with 19 years professional experienced in power inverter, hope we can do some support for you in the future.
