30A Solar Charge Controller With LCD Monitor 12v 24v Solar Charge Controller
US$ 1 - 50
MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Winiversal
Model Number:
SR30
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
25A Solar Charge Controller With LCD Monitor Remote Controlled CarNegotiableMOQ: 20 Pieces -
20A Wind Solar Hybrid Charge Controller Hybrid Solar Charge Controller InverterUS$ 1 - 20MOQ: 40 Pieces
-
35A Solar Mppt Charge Controller Inverter Charger and Solar Charger ControllerUS$ 1 - 20MOQ: 40 Pieces
-
20amp Solar Charge Controller Remote Control Solar Umbrella 20a Solar Charge ControllerUS$ 1 - 50MOQ: 40 Pieces
-
10amp 12v 24v 48v Solar Charge Controller LCD Display Remote Control Fishing Bait Boat Auto-recognize for Easy ControlNegotiableMOQ: 100 Pieces
Place of Origin
Guangdong, China
Brand Name
Winiversal
Model Number
SR30
Application
Charger Controller
Rated Voltage
12V
Maximum Current
30A
Specifications
1. CPU controlled with PWM function2. Compensation charging
3. LCD monitor
4. Temperature sensor
Product Description
Specifications:
Specifications: | |
Model: |
SR-30 |
Rated voltage: |
12/24V automatic voltage recognition |
Max charge current: |
30A |
Maximum discharge current: |
30A |
Full charge cut: |
13.7/27.4V recognize tacitly |
Low-voltage cut: |
10.5/21V recognize tacitly |
Low-voltage restore: |
12.6/25.2V recognize tacitly |
Temperature compensation: |
-3mv/°C/cell |
Static current: |
≤45mA |
Voltage drop: |
<200mV |
Wire area maximum; |
10mm² |
Weight: |
0.35KG |
Size (L*W*H): |
164*111*48.5mm |
Package: |
20 pieces/carton |
-
Features:
- MPPT charge mode, conversion efficiency up to 99%, can save 30-60% of 2 the power than traditional controller
- With high-efficiency MPPT operating scheme and adopting TI28035 chip, make the solar panels utilization rate up to 99%
- Intelligent design, the device can be upgraded online, customers' enjoy the lifelong upgrade service
- Compliance with the 2002/95/EC environment protecting demand, doesn’t include the cadmium , hydride and fluoride
- Adopting the well-known brand components, the devices can suffer the temperature not less than 105°C
- The service lifespan is designed to extend to 10 years in theory
- Charge mode: three stages (fast charge, constant charge, floating charge)
- 12/24/48V system auto recognize for easy control
- Nominal maximum solar input: 150V DC
- Connected battery type of the batteries can also be defined
- LCD and LED show all kinds of parameter like products model, PV input voltage, battery voltage, charge current, charge power, working condition, and also can add customers’ name and Website
- Communication port RS232 communication can provide communication protocol, this make the unified and integrated management more convenient to customers'
- With providing a Microsoft's by connecting with PC that can show the working state and all parameters in 7 languages
- Extensible LAN remote control
- Equipment integrity: controller+ CD-ROM microcomputer software) + communication wire + Anderson terminals
- With CE, RoHS , FCC, PSE marks
- The device also can supports to pass the other certifications and 3-10 years extended warranty service also can be provided
- Temperature sensor: probing the temperature of environment and indicating the degree of charging
- Applications:
- Ideal for off-grid solar system that loads are normally on or controlled by manual
- Solar traffic system
- Solar home system
- Unattended CCTV equipment
- Wild automatic detection equipment

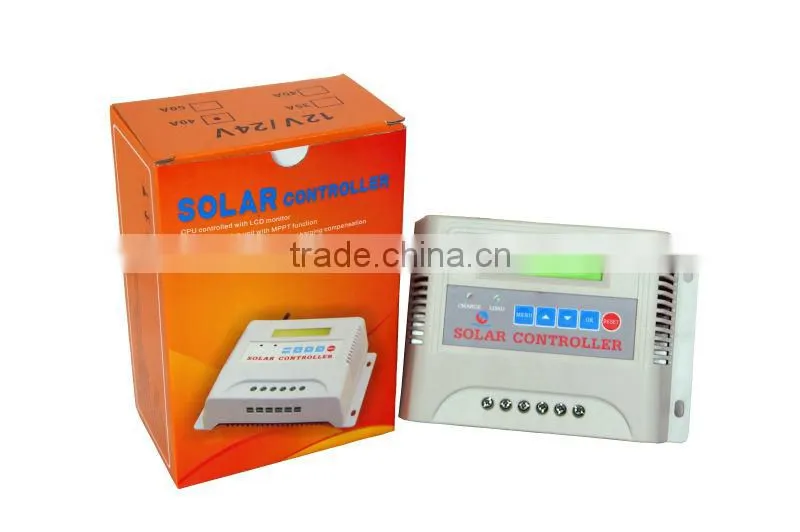

Packing box:

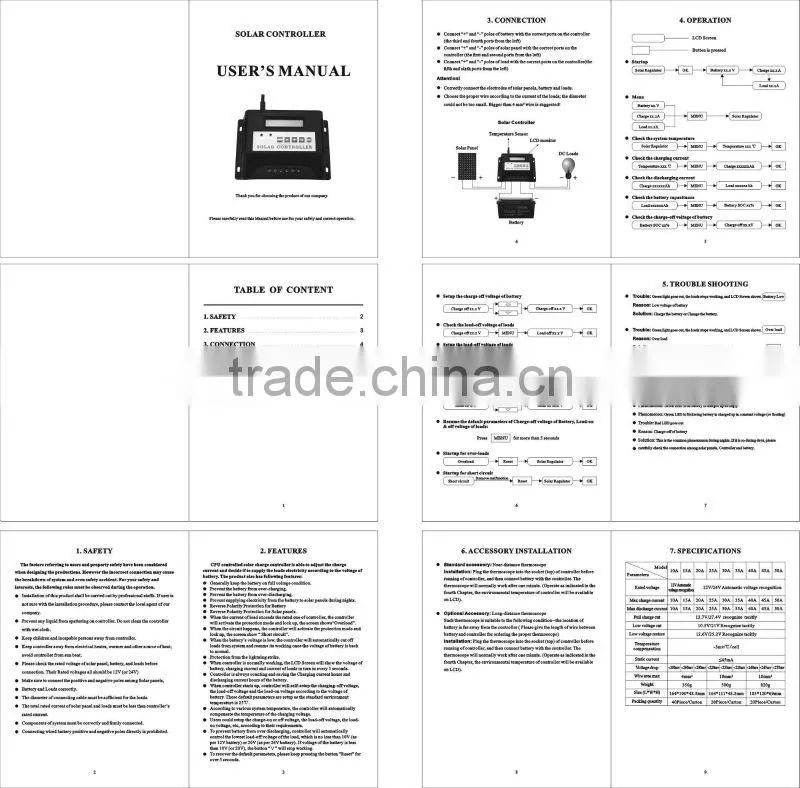

User's manual:
