China time-honoured brand Shunlong brewery1000l for sale
China time-honord brand Jinan Shunlong Machinery Co.,Ltd located in the beautiful Spring City-Jinan. It is the most influential and professioanl beer equipments company in China which integrates with R&D, Production and Sale. We are professional in making the beer machinery,fermentation machinery, saccharification and so on.We have the technological engineers that have the rich experiences,best after-sales services and professional producing craft.
As we have our own factory , so we have
- the source,
- the competive price,
- the professional timely service
Component parts of each system:
1.Mashing system includs malt mill machine, mashing boiling tank, filtering lauter tun, board cooling machine, wort oxygenator, sheet yeast pitching device, draining vapor system and equipment base.
2.Fermentation system includs fermentation tank, top tank components, equipment base and pipeline.
3.Auxiliary system includs alkali tank, acid tank, detergent filter, pipeline and so on .
We can configure various specifications according to the requirement of the customers.
4.The filter part includs filtering machine and pump of diatomite rough and refined filter as a whole.
5.Refrigeration system includs refrigeration unit , evaporator, cooling water tank and equipment base.
6.Control system includs PLC semi-automatic system -Our technical personnels program according to the technology, so it can realize different process purposes.
(1). Characteristics of the system: centralized management, discrete control, strong anti-interference, high reliability; international dimensions, open structure, convenient system extension .
(2). Manual control system-the characteristics: centralized management strong anti-interference, high reliability, international dimensions and convenient operation .
Shunlong Hot Sale Model Specification | |||||||
Brewery |
Fermenter |
Number of |
Beer Output |
Whole |
Cellar |
Power |
Beer Fermentation |
100L |
200L |
6 |
100L |
20 m2 |
1.6M |
15KW |
7-12days |
300L |
600L |
6 |
300L |
40 m2 |
2.2M |
25KW |
7-12days |
500L |
1000L |
6 |
500L |
70 m2 |
2.5M |
35KW |
7-12days |
1000L |
2000L |
6 |
1000L |
100 m2 |
3.1M |
40KW |
7-12days |
2000L |
4000L |
6 |
2000L |
140 m2 |
4.0M |
45-50KW |
8-14 days |
Note: 1hl=100liter; 1Gallon=3.7854liter; 1Barrel (BBL) =117Liter;
1) Main raw material of our equipment: Food grade stainless steel SUS304 or red copper;
2) Main ingredients used by our equipment: Malt, Yeast, Hops and Water
3) Beers which could be brewed by our equipment: different Lager, Ale, Stout, Bock, Porter and different Green beer, Red beer,Dark beer, Yellow beer, Juice Beer, etc. classic beers and new type beers.
- We are the most professional. Just contact us freely, you may receive ideal equipment.
*Mash/Lauter tank:
Double walled with insulation layer
Equip with agitator
Grist case for large capacity tank(optional)
Milled false bottom
Side door for spent grains (automatic device for large capacity optional)
Raker with variable speep drive
Recirculation with sight glass
Ring of sparging
Buffer/grant&Wort collection outlets (optional)
*Kettle/whirlpool tank:
Double walled with insulation layer
Equip with agitator
Heating elements/heating jacket, depend on heating method adopt
Optional:
3-vessel: mash tun-lauter tank-kettle/whirlpool tank
mash/kettle tank-lauter tank-whirlpool tank(combination type optional)
4-vessel: mash tun-lauter tank-kettle-whirlpool tank
Hot water tank, Screw conveyer, Grist case optional
Process: mirro polishing, pure argon gas protecting welding, double face forming
Panel: Mirro/wire-drawing/2B optional

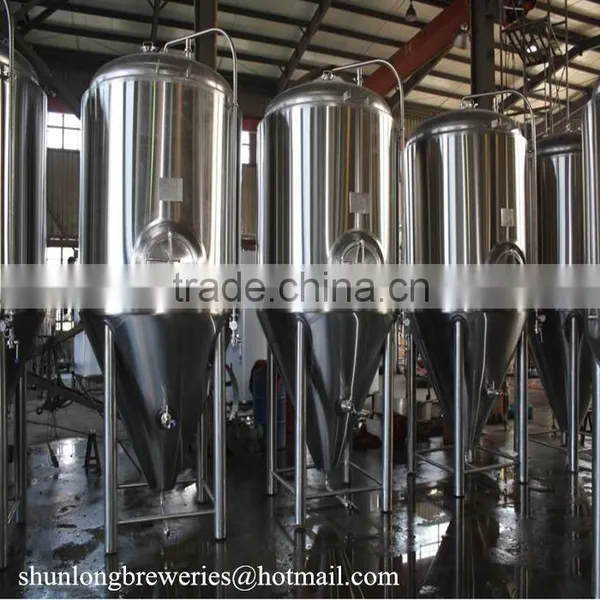

1) Shunlong-Tank has cone angle between the bottom 60-90 degrees, 70 degrees is best conducive to yeast sedimentation and emissions.
2) Shunlong-Tank has a cooling jacket or coil pipe to meet the cooling requirements of the process.
3) Shunlong-Conical tank is closed tank, the carbon dioxide can be recovered, the carbon dioxide can also be washed; the fermentation tank can also be as storage tanks.
4) In order to reduce the cost to build, and more conical fermenter set in the open air, so there is good fermentation tank insulation. Polyurethane insulation materials commonly used in insulation layer thickness of 70-100cm.
pressure tanks with a dished bottom and tank lid
- working pressure in tank: 0/+1 bar, option 0/+2,5 bar
- made of stainless steel
- with laser welded cooling jacket (pillow plate)
- equipped with a CIP (clean in place) tube and a cleaning head
- the materials used and the surface finishing depend on the intended application and the customer's specifications
- insulated tanks make work more efficient and contribute to a more economical use of energy
- The tanks LT are available in two designs:
- tank without insulation - model LTX
- tank with insulation - model LTI
1. Main tanks, vessels and machines will be packaged with painted steel frames.
2. All spare parts, accessories and fittings will be packaged with painted steel box.
3. All items wrapped with soft package for protection.
4. Standard shipping containers will be used for general purpose.
5. All equipments will be loaded into containers according to exact container layout drawings.
6. After loaded into containers, all equipments will be well fixed to the containers.
Pre-sale service:
1. Provide quotation proposal/offers, 3D and CAD layout drawings and details specifications, craft and technical guidance of beer brewery system, Cost and Prospects Analysis and so on.
If you are interested in any product, please don't hesitate to contact us. We will make the best suitable brewing plan and equipment line during our talks. We will quote you, and give you all the details you need at first time
2. We can provide company’s qualification certification and customers reference if you need.
All of our products are passed CE, ISO test. We can show you our qualification and certification, to ensure provide the best quality equipment for you and all the materials are made of foodgrade, safe and durable
3. We can also make customized products according to customer’s needs.
We accept OEM production. You can inform us all you need. We'll make our best efforts to make your satisfaction.
After-sale service:
1. We provide long-term after-sale service.
We do not just sell products to you, the most important is help you achieve your brewing dream.
2. Owing to the quotation of our equipment is FOB price which excluded charges of door-to-door service. Thus, if necessary, we can appoint our technician to debug the machine with air ticket, visa,
accommodation and labor cost provided by your party. Or you can send your technician to our company to learn techniques.
3. Meanwhile, you can call or Email to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.
4. The main equipment have three years warranty, auxiliary engine and accessory have one year warranty.
high quality beer brewery equipment is here, waiting for you
