500w Inverter With Charger for Battery Charging, dc to ac Battery Charger Inverter

500w Inverter With Charger for Battery Charging, dc to ac Battery Charger Inverter photo-1
500w Inverter With Charger for Battery Charging, dc to ac Battery Charger Inverter photo-2
500w Inverter With Charger for Battery Charging, dc to ac Battery Charger Inverter photo-3
US$ 15.5 - 27.5 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HANFONG
Model Number:
THCA500
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name HANFONG
Model Number THCA500
Output Power 401 - 500W
Output Type Single
Size 250*130*65mm
Weight 1600g
Input Voltage 12V/24V/48VDC
Output Voltage 110VAC/220VAC
Type DC/AC Inverters
Output Frequency 50Hz/60Hz
Output Current 2.27A/4.55A upon the load
Product Description

500w inverter with charger for battery charging, dc to ac battery charger inverter



500w inverter with charger for battery charging, dc to ac battery charger inverter
-Isolate
d output

-Soft start

-Low interference technology

- Large factory, strong technical support

-USB charging port +5VDC, 500mA

- Aluminum case

- Earth ground terminal for safety

-Smart fan

500w inverter with charger

500w inverter with charger for battery charging, dc to ac battery charger inverter500w inverter with charger for battery charging, dc to ac battery charger inverter500w inverter with charger for battery charging, dc to ac battery charger inverter500w inverter with charger for battery charging, dc to ac battery charger inverter

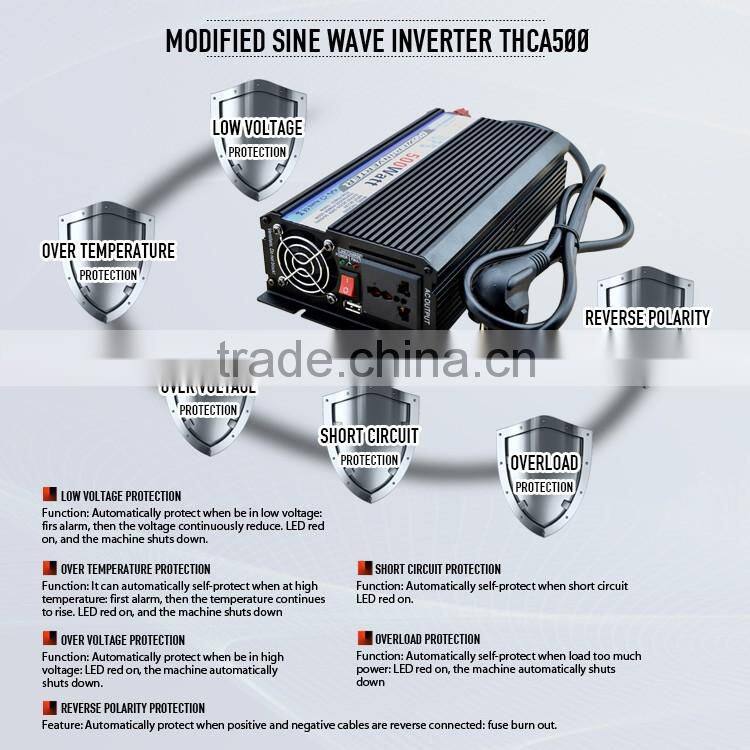

This power inverter is modified sine wave inverter which converts DC power to AC power. The power inverter is used for household appliances, solar devices and telecommunication and the other equipments when no grid power is available.  Its output voltage is always within 10% of rated voltage until it shutdown for overload or other reasons. The special design of circuit and tough components protect the power inverter from being easily damaged, even when the starting power of that equipment is more than 3 times of that of the inverter. Besides these advantages, THCA series power inverter also has grounding devices to improve safety and excellent component to lower interference; inner fan is intelligent and will not work until the wattage reaches 1/3 of inverter. All these designs are made to prolong its span.



500w inverter with charger for battery charging, dc to ac battery charger inverter
Input Output Package
Input voltage:DC 12V(24V/48V) Continuous power:500W  Net weight:1600g
Input voltage range:DC 9.5V-15.5V Peak power:1000W Gross weight:1920
Load controlled fan : Yes Output voltage:AC 220V/110V Product Size:250*130*65mm
Fuse : 30A*2 Output voltage Regulation : +/-10% Packing size:350*175*110 mm
Peak efficiency:>90% USB Charging port:5VDC,800mA Packaging : 10 Pcs per carton
Working temperature : 0-40 deg C Output Frequency:50Hz/60Hz Packaging carton : 560*360*370mm
Charger: 10A Output wave form:Modified sine wave

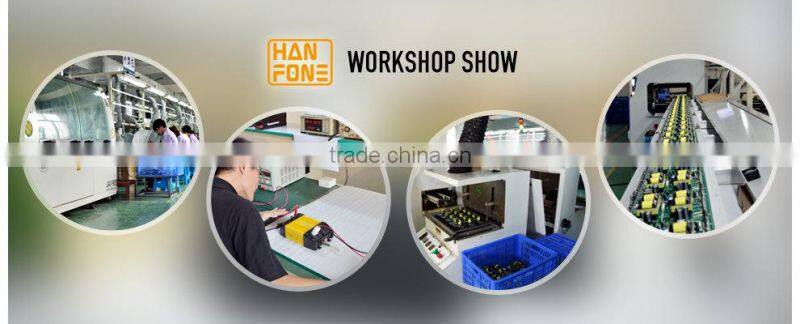

Production Flow



500w inverter with charger for battery charging, dc to ac battery charger inverter500w inverter with charger for battery charging, dc to ac battery charger inverter500w inverter with charger for battery charging, dc to ac battery charger inverter500w inverter with charger for battery charging, dc to ac battery charger inverter

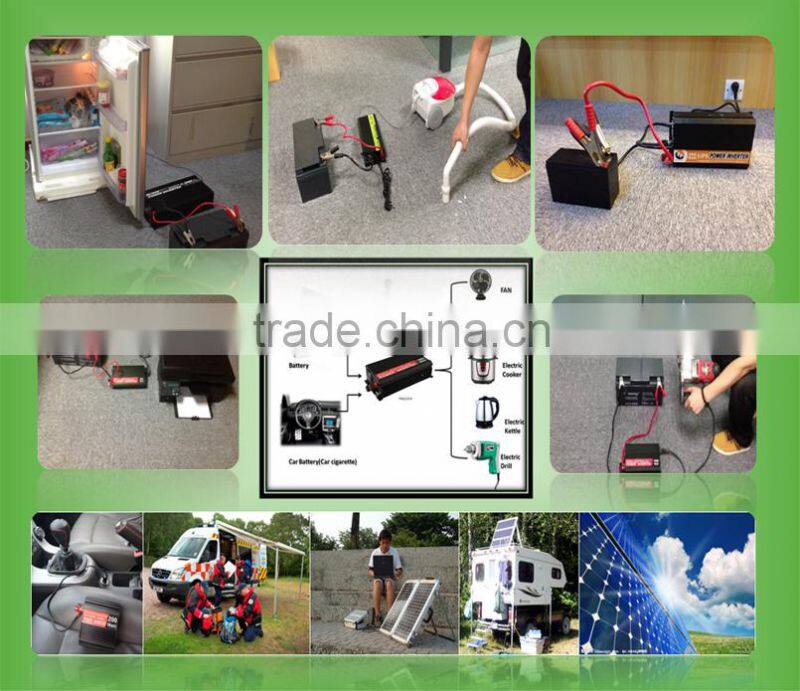

Application

This inverter is suitable for Mobile phone ,12inch color TV, video games console, Electric light, Satellite TV receiver, CD or DVD player. HIFI, Electric fan, Notebook, 19 inch color TV, Small-medium printer, Home theater system, Power drill, Rice cooker, Small coffee machine, Refrigerator, Small microwave oven, and so on.  500w inverter with charger for battery charging, dc to ac battery charger inverter

Packaging & Shipping

500w inverter with charger for battery charging, dc to ac battery charger inverter







Our Services

Over the past 19 years, we have earned many honors and certificates for company and also the products, such as Canton Fair Excellent supplier, CE, RoHS and patents certificates.



Certifications

  500w inverter with charger for battery charging, dc to ac battery charger inverter



Trade Shows



500w inverter with charger for battery charging, dc to ac battery charger inverter





Company Information



In our factory, we have most dedicated employees who work professionally in the area of PCB design, SMT mounting, welding, lead wire cutting, general assembly, testing and packing.

500w inverter with charger for battery charging, dc to ac battery charger inverter
