2016 popular model air hammer op-2
Usage:
1) It can be applied to break the old roadway, to break the original concrete ground for mining enterprise.
2) It can be applied to break firm and freezed ground in civil engineering,substruction and civil air defence works and so on.
3) It can be applied to cut coal layer and break soft mineral in mining industry.
Product details:

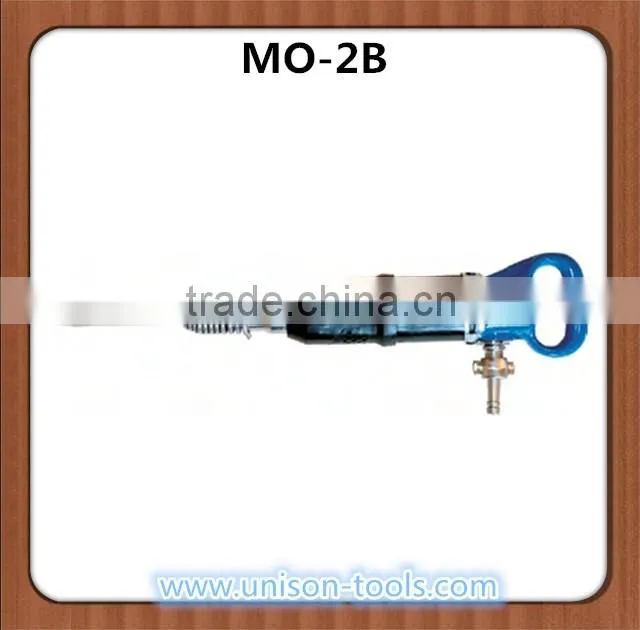

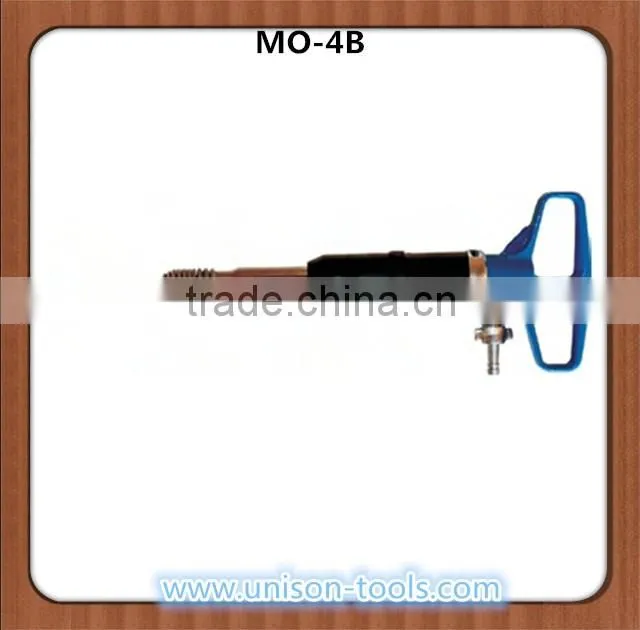

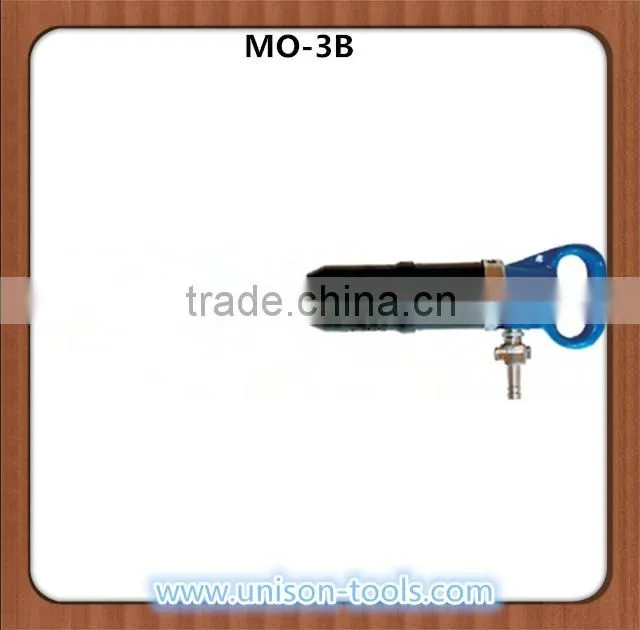

| Technical parameters | MO-2B | MO-3B | MO-4B |
| Impacting Frequency | 22.5HZ | 19.2HZ | 17HZ |
| Impact Energy | 39J/min | 44J/min | 55J/min |
| Weight of Breaker(w/o tool) | 8.5kg | 9kg | 9.6kg |
| Specific consumption of free air | 1.5m3/dcm•kw | 1.5m3/dcm•kw | 1.5m3/dcm•kw |
| Rated Pressure | 0.63Mpa | 0.63Mpa | 0.63Mpa |
| Min. Pressure | 0.3Mpa | 0.3Mpa | 0.3Mpa |
| Dia. Of Tail Pick | 24mm | 24mm | 24mm |
| Length of Tail Pick | 70mm | 70mm | 70mm |

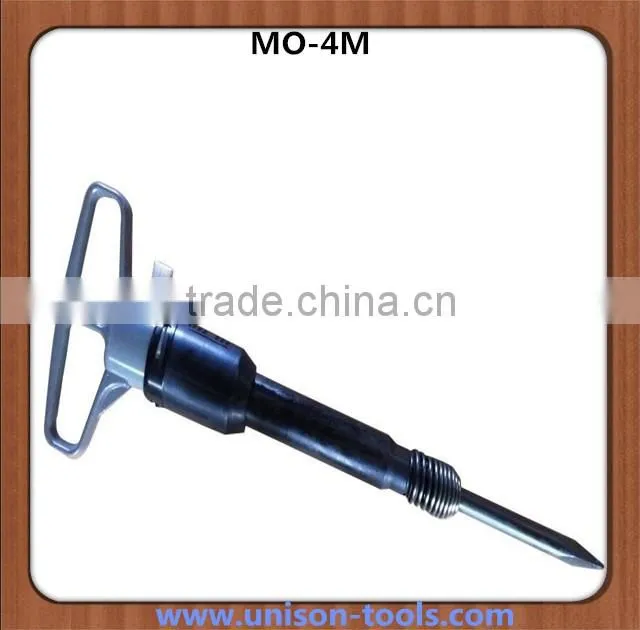

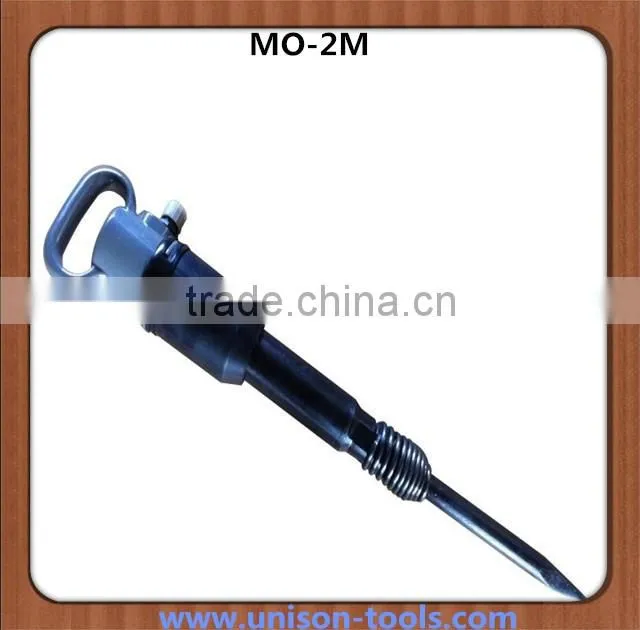

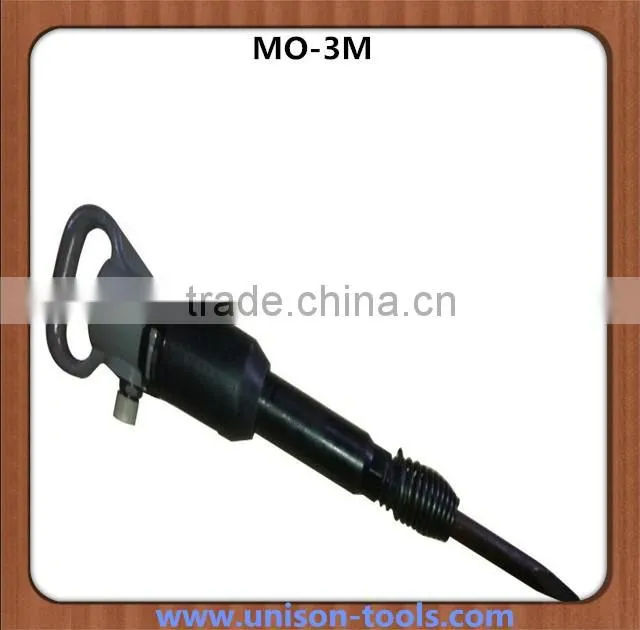

| Technical parameters | MO-2M | MO-3M | MO-4M |
| Impacting Frequency | 22.5HZ | 19.2HZ | 17HZ |
| Impact Energy | 39J/min | 44J/min | 55J/min |
| Weight of Breaker(w/o tool) | 8.5kg | 9kg | 9.6kg |
| Specific consumption of free air | 1.5m3/dcm•kw | 1.5m3/dcm•kw | 1.5m3/dcm•kw |
| Rated Pressure | 0.63Mpa | 0.63Mpa | 0.63Mpa |
| Min. Pressure | 0.3Mpa | 0.3Mpa | 0.3Mpa |
| Dia. Of Tail Pick | 24mm | 24mm | 24mm |
| Length of Tail Pick | 70mm | 70mm | 70mm |

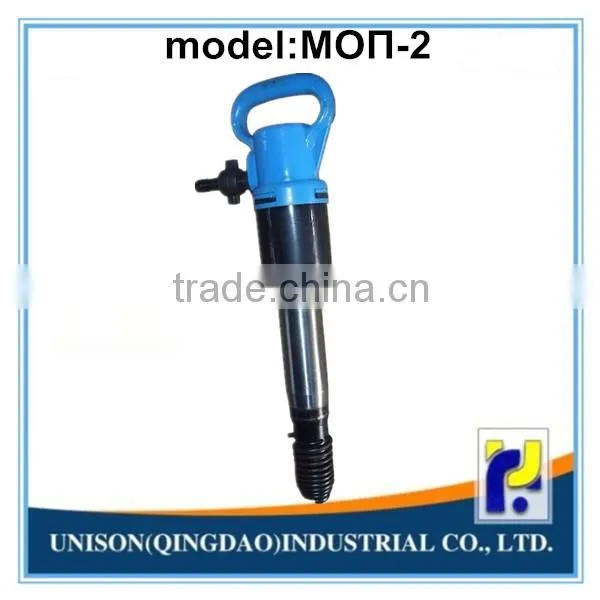

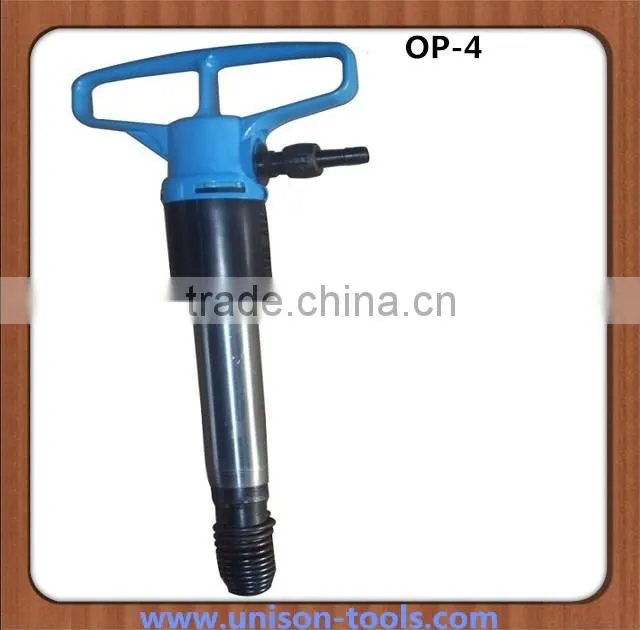

| Technical parameters | OP-2 | OP-3 | OP-4 |
| Impacting Frequency | 22HZ | 19HZ | 17HZ |
| Impact Energy | 43J/min | 48J/min | 56J/min |
| Weight of Breaker(w/o tool) | 8kg | 9kg | 9.5kg |
| Specific consumption of free air | 26m3/dcm•kw | 26m3/dcm•kw | 26m3/dcm•kw |
| Rated Pressure | 0.63Mpa | 0.63Mpa | 0.63Mpa |
| Min. Pressure | 0.3Mpa | 0.3Mpa | 0.3Mpa |
| Dia. Of Tail Pick | 24mm | 24mm | 24mm |
| Length of Tail Pick | 70mm | 70mm | 70mm |

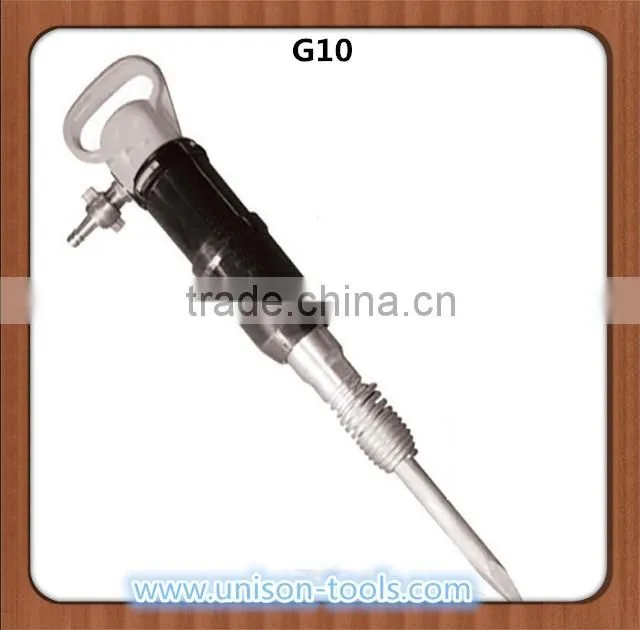

| Technical parameters | MO-2K(G10) |
| Impacting Frequency | 16HZ |
| Impact Energy | 43J/min |
| Air consumption | 26L/S Max |
| Cylinder dia. | 38mm |
| Inside dia.of sunction tube | 16mm |
| Total weight | 0.3Mpa |
| Dia. Of Tail Pick | 10.6KG |
| Length of Tail Pick | 70mm |
Unison (Qingdao) Industrial Co., Ltd. is a professional manufacturing company since 1980.
3)Approval: ISO9001:2008 / CE with 20YEARS production developments.
4)Product capacity: 300 works/ 100,000pcs per month.
5) Shipment: Quick shipment, around 7-25days depending on order q'ty.
6)Customers: More than 70 large-scale customers worldwide especially East-Europe.
1.skype is unison-qingdao-03
2.whatsapp:+008615063938931
4.QQ:2098680206
1. How long have your company produced and exported pneumatic angle grinder?
About 20 years.
2. Which paypment terms are you accept?
T/T, L/C, Western terms, or paypal...
4. After an order is placed, when to deliver?
It depends on whether the products you buy has stock. If we have stock,as usual we can arrange shipment after 3-5 days. If not, it will be decided by the time of the factory production.
5. Is your company accepting customization?
We accept OEM/ODM. You can choose print your logo and customize your packing.
6. If the products are not comformity with requirement, how to solve?
If the products are not conforming to customer samples or have quality problems, our company will be responsible for it.
