Rigid Film Forming and Packing Machine Big Blister Packing Machine

Rigid Film Forming and Packing Machine Big Blister Packing Machine photo-1
US$ 14,000 - 18,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Apparel, Beverage, Chemical, Commodity, Food, Medical
Packaging Type:
Bags, Barrel, Bottles, Cans, Capsule, Cartons, Case, Pouch, Stand-up Pouch
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port or ningbo port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Apparel, Beverage, Chemical, Commodity, Food, Medical
Packaging Type Bags, Barrel, Bottles, Cans, Capsule, Cartons, Case, Pouch, Stand-up Pouch
Packaging Material Glass, Metal, Plastic, Wood
Automatic Grade Automatic
Driven Type Other, Electirc & Pneumatic
Voltage 110V/220V
Power 1KW
Place of Origin Zhejiang, China
Brand Name Atpack
Model Number AP-RF
Dimension(L*W*H) 6200*1100*2350mm
Weight 1800KG
Certification ISO CE
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Applications:

FP-R rigid film forming filling sealing and cutting machine is the latest developed product of Atpack machinery, the forming material can be PET, PS, EVOH etc. It is widely used in packing all kinds of medical instrument products, cosmetic products, food products etc.



Function:

FP-R rigid film forming filling sealing and cutting machine is a kind of packing machine for multifunctional use, congregates some functions such as stretching, forming, filling, printing (optional), vacuum (optional), sealing, cutting and punching shear etc.

Picture for reference:





Features:

Machine combines function of forming, filling, printing, sealing and cutting etc. Avoid secondary pollution;

Machine can produce various products with different specifications if change the mould;

Easy to change different moulds, about 1 hour for professional worker to change a set of moulds

After forming, the bottom container is strong and can stand a certain pressure;

The maximum thickness of bottom film is 0.6mm;

The material for this machine includes PP, PS, PET, PVC, EVOH etc.



Technical Parameters:

Model

AP-RF

Formed Materials

PP, PS, PET, PVC, EVOH etc.

Formed Film

Rigid film

Paper for Sealing

Dialyzing Paper, Coated Paper, Tyvek, PP, PS, PE, etc.

Packing Capacity

10-14cycles/min

Bottom Film Thickness

 ≤0.6mm

Max. forming size

280*250mm

Max. forming depth

80mm

 Power Supply

AC 380V  50HZ(3 phase)

 Air Consumption

850L/min

Dimension

 7300*1100*1960mm

Weight

2000KG

Air Supply

≥0.6MPa

Power

12KW

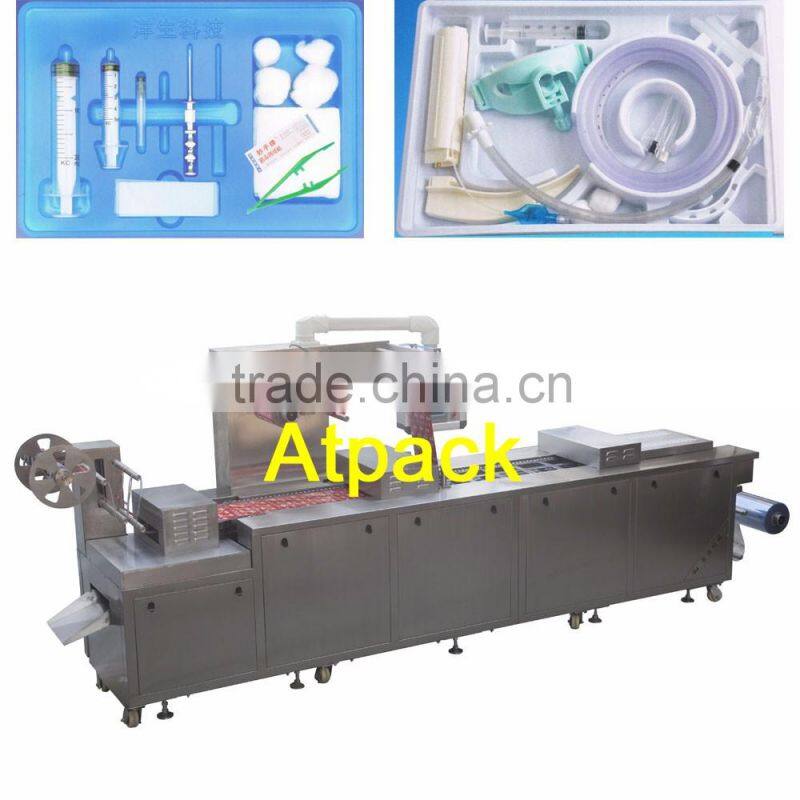

 Machine Pictures

 Rigid Film Forming and Packing Machine Big Blister Packing Machine

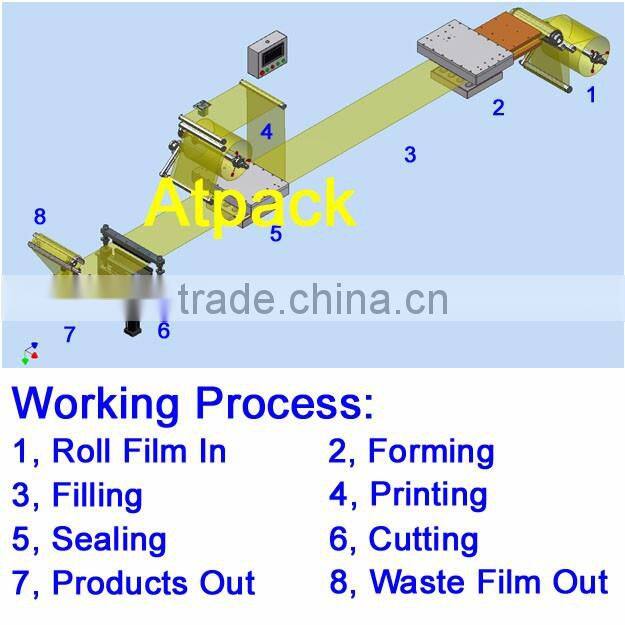

Working Process:

Rigid Film Forming and Packing Machine Big Blister Packing Machine





Rigid Film Forming and Packing Machine Big Blister Packing Machine

Packaging & Shipping

 Rigid Film Forming and Packing Machine Big Blister Packing Machine

Our Services

 Rigid Film Forming and Packing Machine Big Blister Packing Machine

Company Information

 Rigid Film Forming and Packing Machine Big Blister Packing Machine

FAQ

Rigid Film Forming and Packing Machine Big Blister Packing Machine
