Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Controller > 2016 Hot Sale Mppt Solar Charge Controller 60A 12/24V

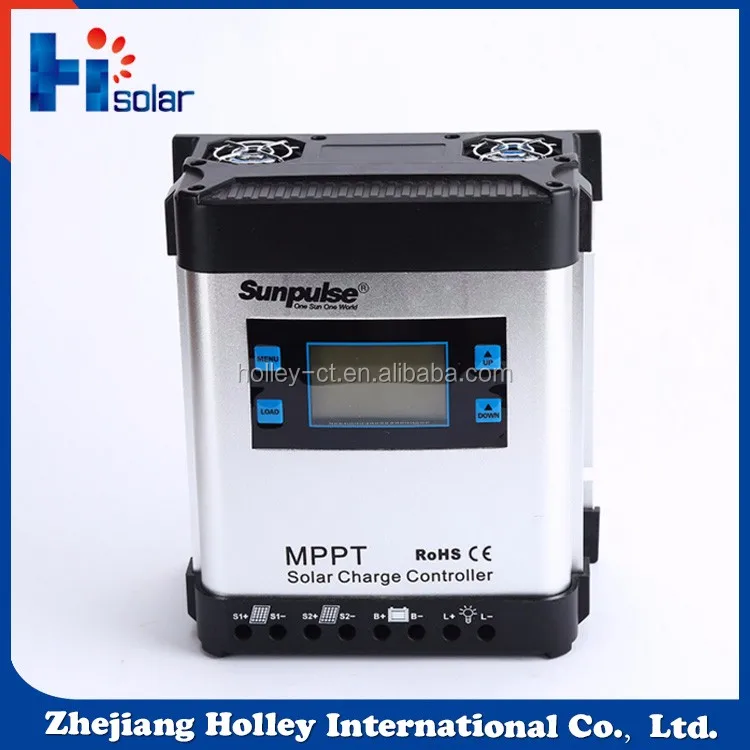

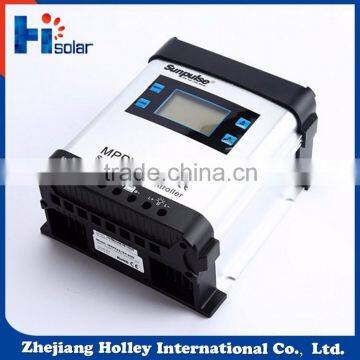

2016 Hot Sale Mppt Solar Charge Controller 60A 12/24V

Name: 2016 Hot Sale Mppt Solar Charge Controller 60A 12/24V
Brand: Holley / Hisolar
SKU: 127899441
Availability: InStock

2016 Hot Sale Mppt Solar Charge Controller 60A 12/24V thumbnail-1

2016 Hot Sale Mppt Solar Charge Controller 60A 12/24V thumbnail-2

2016 Hot Sale Mppt Solar Charge Controller 60A 12/24V thumbnail-3

2016 Hot Sale Mppt Solar Charge Controller 60A 12/24V thumbnail-4

2016 Hot Sale Mppt Solar Charge Controller 60A 12/24V thumbnail-5

2016 Hot Sale Mppt Solar Charge Controller 60A 12/24V thumbnail-6

2016 Hot Sale Mppt Solar Charge Controller 60A 12/24V photo-1

2016 Hot Sale Mppt Solar Charge Controller 60A 12/24V photo-2

2016 Hot Sale Mppt Solar Charge Controller 60A 12/24V photo-3

2016 Hot Sale Mppt Solar Charge Controller 60A 12/24V photo-4

2016 Hot Sale Mppt Solar Charge Controller 60A 12/24V photo-5

2016 Hot Sale Mppt Solar Charge Controller 60A 12/24V photo-6

US$ 170 - 170 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Holley / Hisolar

Model Number:

ENS12/24-60

Contact Supplier Request Quote Chat Now

Zhejiang Holley International Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Holley / Hisolar

Model Number ENS12/24-60

Application Collector Controller

Rated Voltage Other, 12/24V

Maximum Current 60A

Product Description

2016 hot sale mppt solar charge controller 60A 12/24V.

Features:

Overcharge protection.

Short circuit protection (automatic restoration).

Easy to install and use.

Save energy and electricity consumption.

Environment friendly, lower-cost.

Suitable for polytype battery.

Thunder protection.

Reverse polarity connection protection.

Detailed Images

Technical data

Model	ENS12/24-20	ENS12/24-30	ENS12/24-40	ENS12/24-50	ENS12/24-60
Normal Voltage	12/24V, automatic recognition
Nominal Battery Charge Current	20A	30A	40A	50A	60A
Max. PV Input Power	300W@12V 600W@24V	450W@12V 900W@24V	600W@12V 1200W@24V	750W@12V 1500W@24V	900W@12V 1800W@24V
Max. Solar Input Voltage Voc	>30V/48V
Min. Solar Input Voltage Vmp	>16V/32V
Power Conversion Efficiency	Max. 90%
Standby Power Consumption	<15mA	<15mA	<20mA	<20mA	<20mA
Length≤1m Charge Loop Drop	<0.25V
Length≤1m Discharge Loop Drop	<0.05V
Temperature Compensation	-3 mv/cell *K
Dimensions	172126.373mm(LWH)
Weight	0.35kg	0.36kg	0.38kg	0.4kg	0.4kg
Ambient Temperature Range	-40 to +50ºC
Case Protection	IP22
Float Charge	13.8V/27.6V
Constant Voltage Charge	14.6V( 14~15V settable )29.2V (28~30V settable)
Low Disconnect Voltage	11V( 10.4~11.4V settable)/ 22V( 20.8~22.8V settable)
Low Reconnect Voltage	12.8V( 12.2~13.2V settable)/ 25.6V( 24.4~26.4V settable)
Grounding	Positive grounding
Battery Type	GEL, AGM, Solar battery etc.

Certifications

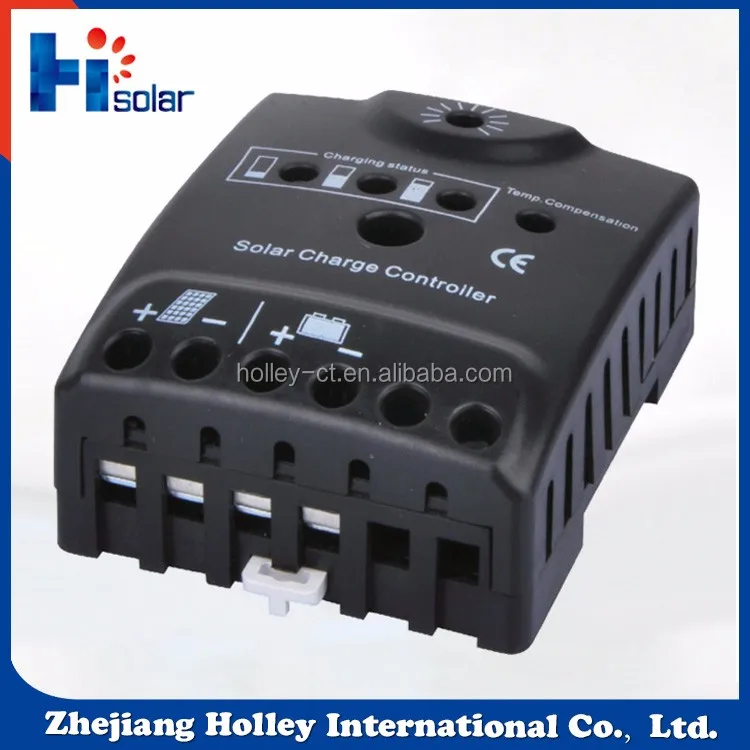

GEL, AGM, Solar battery 20A industrial solar charge controller.

Rated Voltage: 12/24V

Maximum Current: 20A

Trending hot products 2016 40 A waterproof mini solar charge controller.

Rated Voltage: 12/24V

Maximum Current: 40A

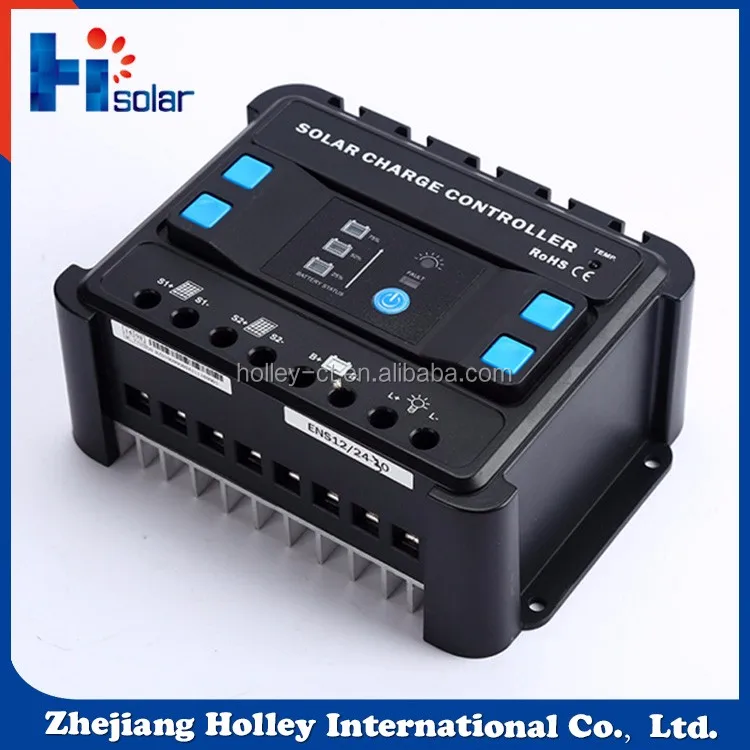

2016 New products 50A 12 / 24V led display solar charge controller ENS12/24-50.

Rated Voltage: 12/24V

Maximum Current: 50A

Packing & Delivery

Our Company

HOLLEYINTL, is a top-brand enterprise in China, is a professional diversified operating company specializing in international trade and overseas projects. We have been engaged in export and import of utility meters, new energy and natural resource products as well as overseas engineering EPC and investment. Meanwhile, our company is also the inverter,controller manufacturer; PV system integrator and photovoltaic power plant investment operator.

We actively carrying out the internationalization strategy and extending the domestic and overseas markets, have made great progress in the field of new energy and completed a number of photovoltaic system projects in Ethiopia, Uganda, Palestine as well as other countries, and initially formed the core competence both in PV system integration capabilities and customer service network.

As one of our global strategies, we are aiming to be an global excellent integrated expert in new energy field. We specialize in providing design, supply, installation, commissioning, after-sales service and project finance support of overseas new energy projects and our products have been spread all over Africa, Asia and South America.
