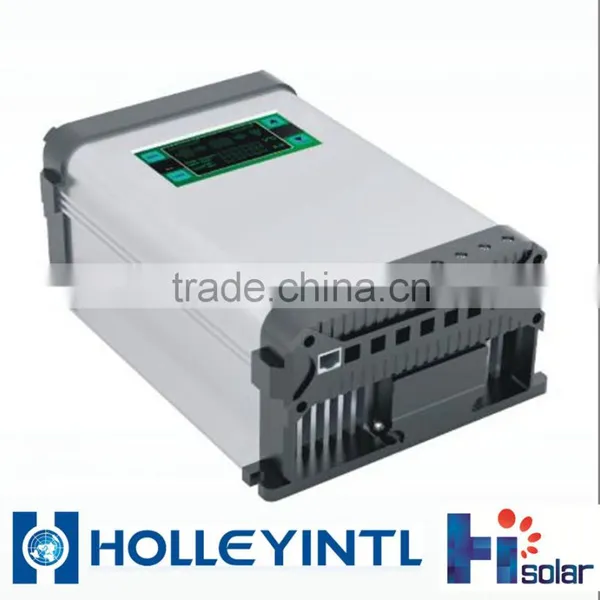

MPPT Solar charger controller 60A, 70A, 80A

Name: MPPT Solar charger controller 60A, 70A, 80A
Brand: HOLLEY
Price: USD $224 - 312 / Piece

FOB Price

USD $224 - $312 / Piece

50 Pieces(Min.Order)

Product Details

Place of Origin:	Zhejiang, China	Brand Name:	HOLLEY	Model Number:	HCM 60/70/80
Application:	Solar System Controller	Rated Voltage:	Other, 12/24/48Vdc	Maximum Current:	60A, 70A, 80A

Model	HCM 60	HCM 70	HCM 80
Charging Mode	MPPT
Nominal System Voltage	12/24/48Vdc
Rated Charge Current	60A	70A	80A
Max PV Input Power	720W@12V ×2@24V×4@48V	840W@12V ×2@24V×4@48V	960W@12V ×2@24V×4@48V
Max PV Input Voltage	150V
LCD Screen Display	Optional
Equalizing Charge Voltage	14.4V/28.8V/57.6V
Boost Charge Voltage	14.0V/28.OV/56.0V
Float Charge Voltage	13.8V/27.6V/55.2V
Over Voltage Protection	15.5V/31.0V/62.0V
Low Voltage Disconnect	11.0V/22.0V/44.0V
Low Voltage Recovery	12.6V/25.2V/50.4V
Self Consumption	<5% of rated power
Temper. Compensation	-3mV/℃/2V
Ambient Temper. Range	-25 to 50℃
Protection Level	IP 22
Battery Type	GEL/AGM/Solar Storage Battery, etc.
