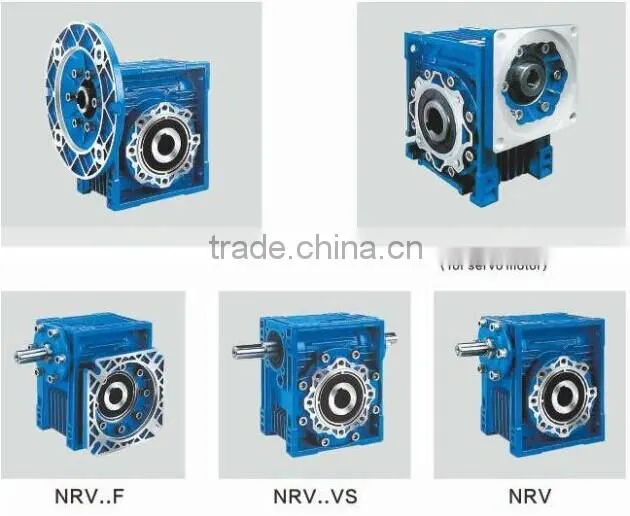

NMRV NRV Worm Gearbox Speed Reducer for Machine

US$ 25 - 35 MOQ: 2 Sets

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Model Number:

NMRV Worm gearbox

Hangzhou Tiankai Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name TK

Model Number NMRV Worm gearbox

Gearing Arrangement Worm

Output Torque 740-1050

Rated Power 1.7-16.1

Input Speed 1400

Output Speed 14-186.7

Specifications

Specifications
1.NMRV Worm gearbox
2.NAK Seal,HRE Bearing,45# Steel
3.ISO9001,Warranty-1year
4.Delivery on time

NMRV Worm gearbox Characteristics:

(1) With excellent quality

(2) Reasonableprice

(3) Promise todelivery on time

(4) Large outputtorque

(5) Safe,reliable, economical and durable

(6) Stabletransmission, quiet operation

(7) Highheat-radiating efficiency, high carrying ability

(8) Certificate ofquality: ISO9001:2008

(9) Every productmust be tested before sending

Specifiction:

Type:	NMRV Worm gearbox
Model:	NMRV030-130
Ratio:	7.5,10,15,20,25,30,40,50,60,80,110
Color:	Blue / Silver White
Material:	Housing-Casting iron-HT200# / Aluminium
	Worm Gear- Cooper-10-3 #
	Worm-20CrMnTi with carburizing and quenching, surface hardness is 56-62HRC
	Shaft-chromium steel-45#
Packing:	Paper carton,Plywood box / per set(With foam board inside)
Bearing:	Brand "HRE" Bearing
Seal:	NAK Seal from TAIWAN
Warranty:	1 year
Input Power:	0.55kw,0.75kw,1.1kw,1.5kw,2.2kw,4kw,5.5kw,7.5kw
Usages:	In industrial machine: Food stuff,Ceramics,chemical, aswell as packing, printing, dyeing,woodworking, glass and plastics…..
IEC Flange:	80B5,90B5,100B5,112B5,132B5.....
Lubricant:	Synthetic & Mineral
