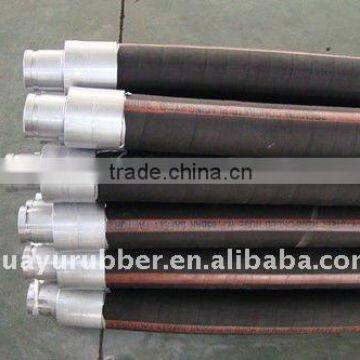

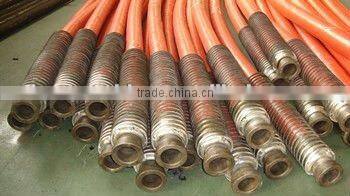

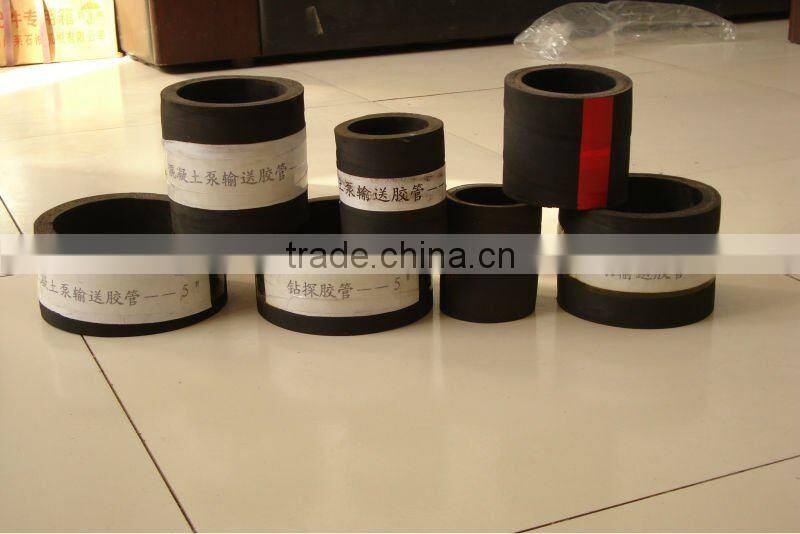

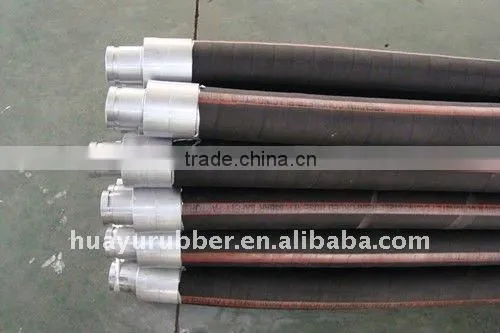

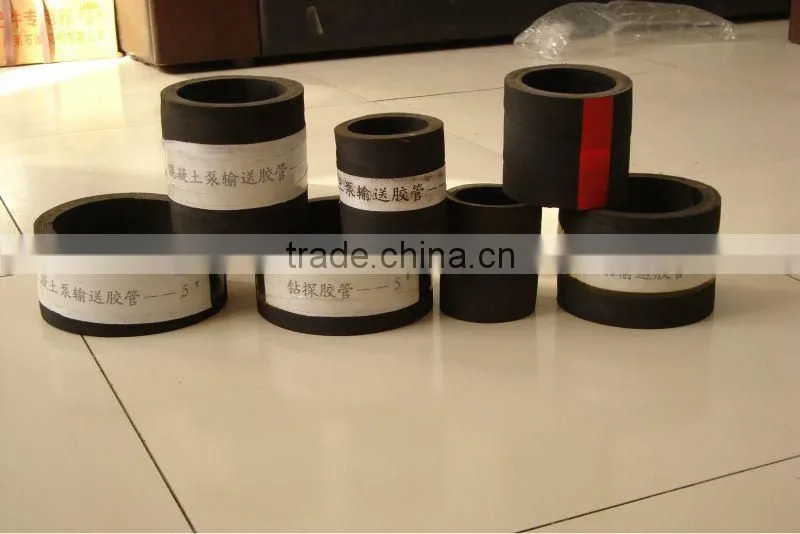

High Pressure Concrete Pump Hose

Specifications

1.Good quality
2.ISO9001:2008
3.Using for concrete pumping vehicle

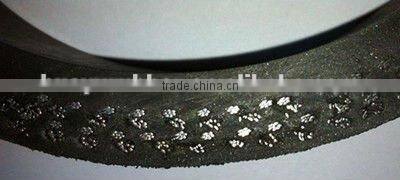

4.Steel wire reinforcement
Remarks:for mor details,pleas

Here is our detailed products information belows:



I.D inch	I.D (mm)	O.D (mm)	Working pressure (bar)	Burst pressure (bar0	Min ben radius(mm)	Wight (kg/m)
2	51	68±1.5	85	200	200	2.8
2.5	64	85±1.5	85	200	250	4.0
3	76	102±1.5	85	200	270	6.0
3.5	89	116±1.5	85	200	290	7.5
4	102	130±1.75	85	200	300	9.2
5	127	158±2	85	200	360	11.7
6	152	186±2	85	200	570	17.0























If any needs, just call me,  0086-15603181872, let's talk more!
