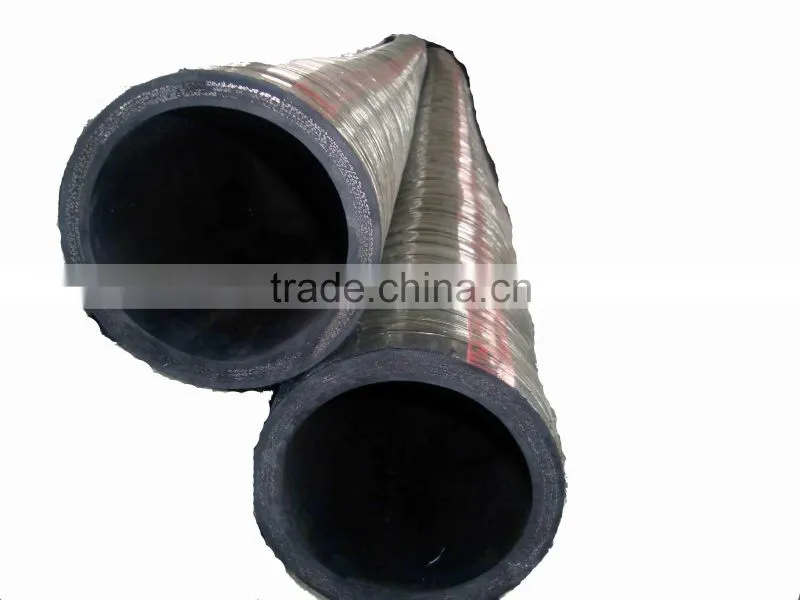

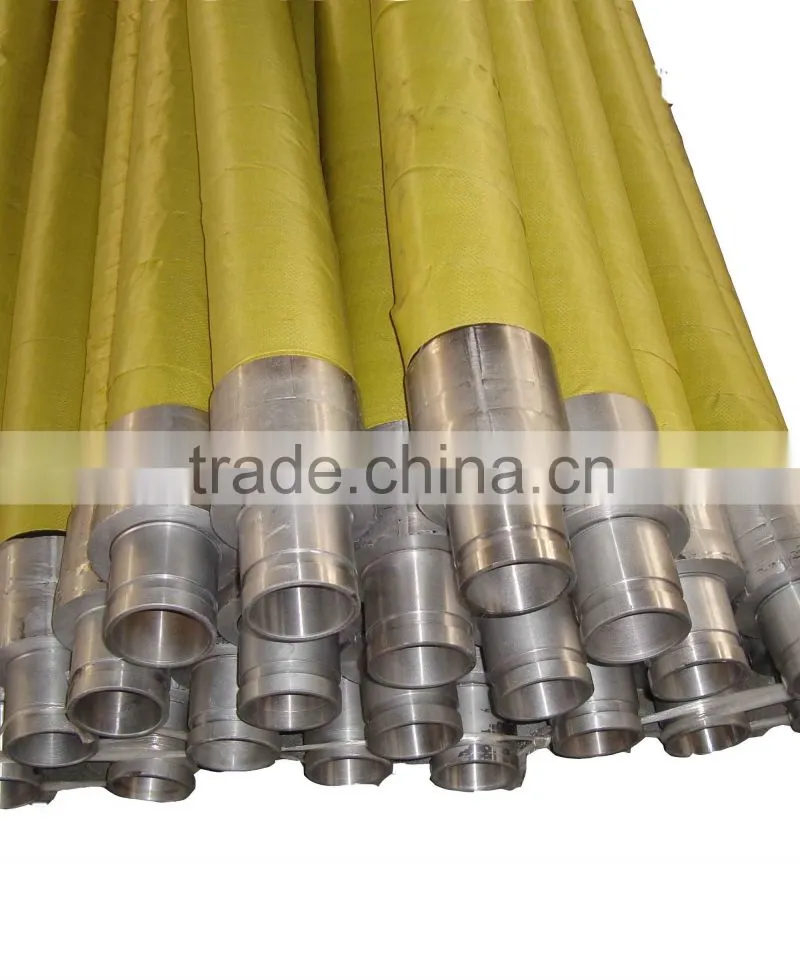

Concrete Hose 2.5"

Specifications

1.Using for concrete pumping vehicle
2.Steel wire reinforcement
3.Within 15 days after payment.
Remarks:for more details,

Concrete pump hose

Working pressure :85 bar

Safety rate:3:1

Size: from 2'' to 6''

Hose send: as to your request

Hose length :as to your request

Type	I.D (mm)	O.D (mm)	Working pressure (bar)	Burst pressure (bar0	Min ben radius(mm)	Wight (kg/m)
2	51	68±1.5	85	240	200	2.8
2.5	64	85±1.5	85	240	250	4.0
3	76	102±1.5	85	240	270	6.0
3.5	89	116±1.5	85	240	290	7.5
4	102	130±1.75	85	240	300	9.2
5	127	158±2	85	240	360	11.7
6	152	186±2	85	240	570	17.0
