Specifications
tect power supply.2.waterproof and dustproof design
3. Low noise
4. travel time less than 20s
5.automatically switch

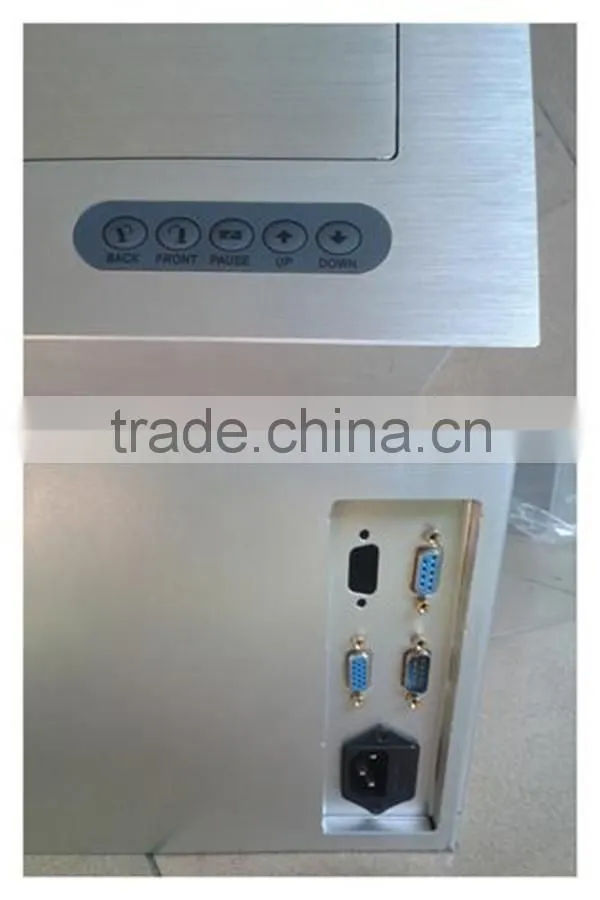

Lcd monitor lift
Introduction
LCD Lift is designed for advanced video conferencing system. For the ordinary meeting, the LCD monitors are inside the LCD Lift to keep
the tabletop even & neat;
For the multimedia meeting, the LCD Monitors can be lifted up separately, grouply or all to display the multimedia information including meeting
content, information hint and picture information, etc.
Its widely used for Video conferencing system, TV conferencing system, and financial analyzing system and so on.
Functions:
*Waterproof protection for electrical components .
*Function of automatically tilting angle of the monitor .
*Function of automatically power connection & disconnection for the LCD monitors .
*Less than 20 seconds for single way rising up or down.
*Function of automatically opening & closing the door .
*Implementing the unity of distant control by connecting RS-485 communication cable and controlling keyboard or central control system.
Parameters
ITEM NAME |
LCD/LED Monitor Lift |
|||
Refer photo |
|
|||
MODEL NO. |
JN-17 |
JN-19 |
JN-22 |
JN-24 |
PANEL DIMENSION |
490×158×4mm |
550×158×4mm |
620×190×4mm |
665×200×4mm |
LIFTING HOLE SIZE |
420×81mm |
480×81mm |
540×105mm |
590×105mm |
CASE DIMENSION |
464×144×650mm |
524×144×650mm |
600×175×665mm |
640×183×760mm |
WEIGHT |
20kg |
22kg |
26kg |
30kg |
PANEL MATERIAL |
Aluminum Alloy(Wire-drawing) |
|||
PANEL COLOUR |
Black / Silver |
|||
CASE MATERIAL |
Iron |
|||
MOTOR |
2 Units |
|||
OPERATE VOLTAGE[AC] |
110v±10% / 220v±10% |
|||
MAX POWER |
25w |
|||
LOADING CAPACITY |
≤8.5kg |
|||
TILT ANGLE |
≤15° |
|||
SINGLE LIFTING TIME |
20s |
|||
CONTROL MODE |
1.Manual 2.Remote 3.RS232/485 |
|||
Power protection
1,When the monitor lifted up, it can be supplied for power automatically
2,In the contrast, the power can be cut when the monitor is lifted down
3,lt can reduce the loss of electrical energy.
Working environment
1,In the working room, temperature should be -10°C--40°C and relative humidity is about or below 95%.
2,There should not be corrosive gas, Organic solvent vapor mist, inflammable and explosive things here.
3,It is better to avoid fierce vibration and crash.

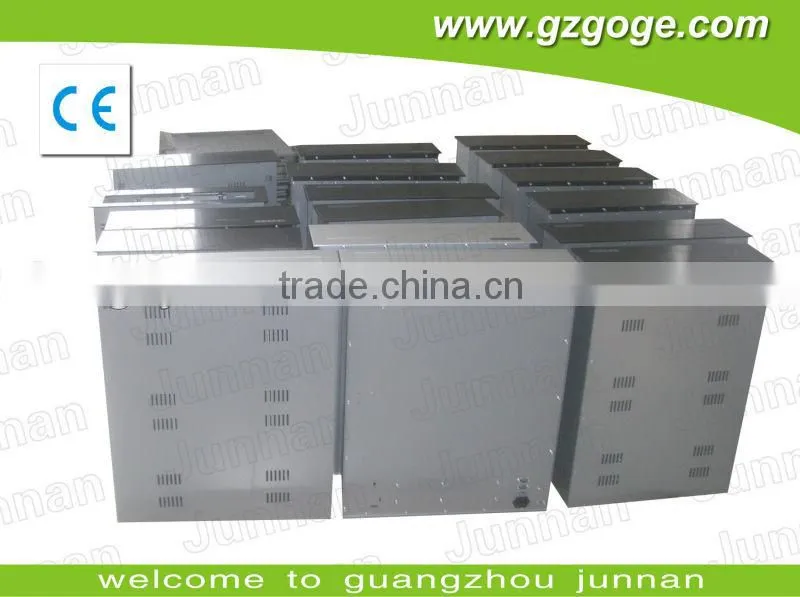

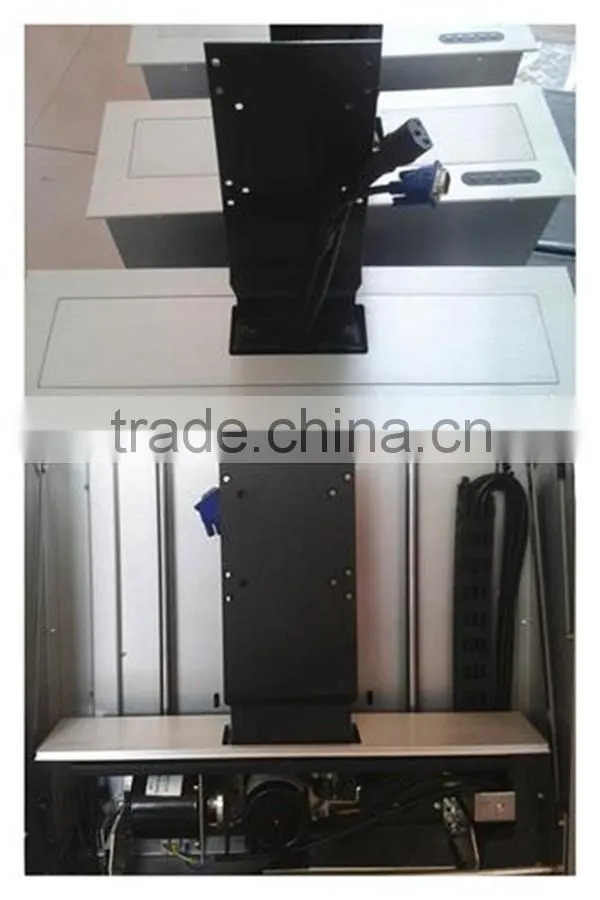

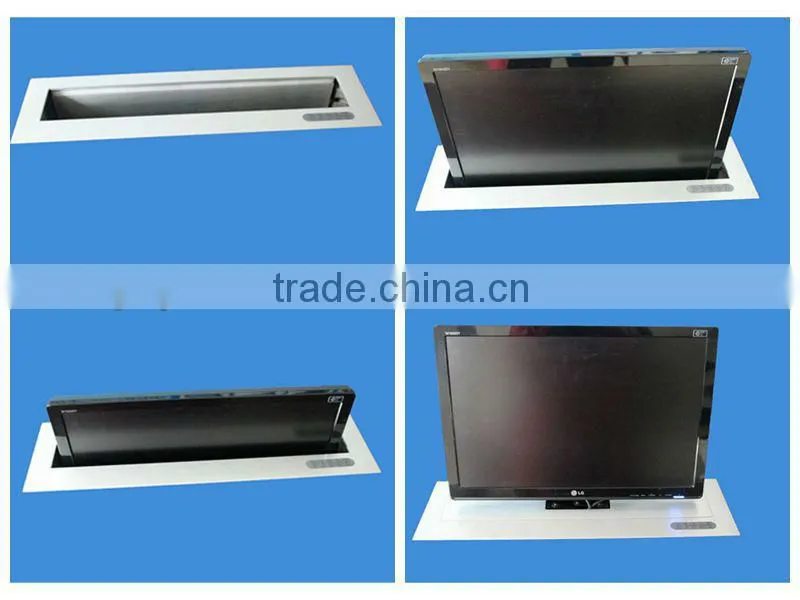

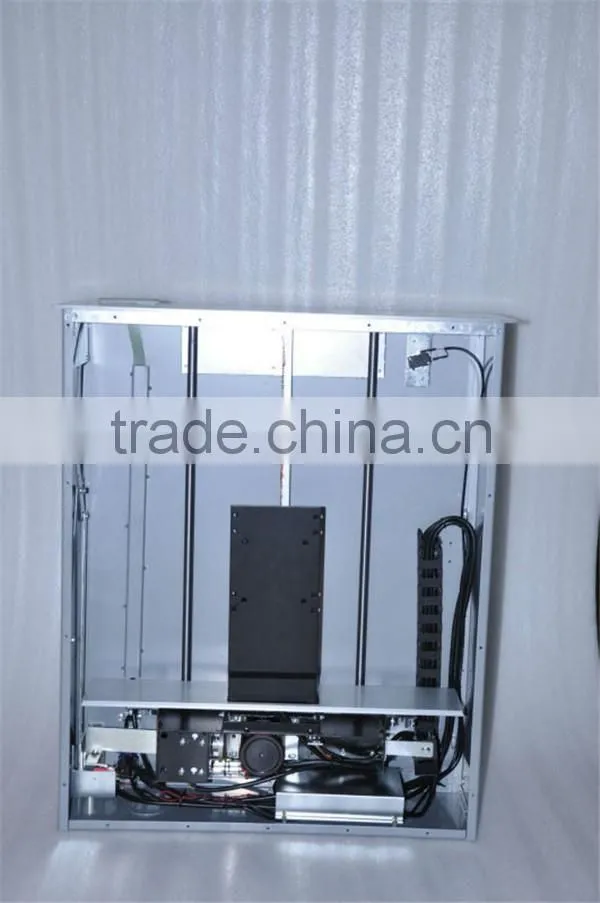

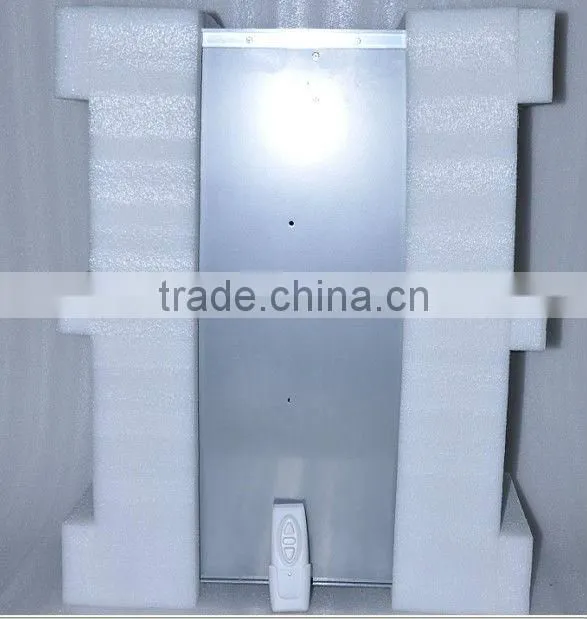

Detail show&package

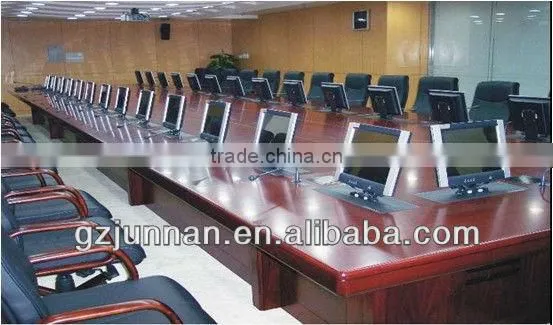

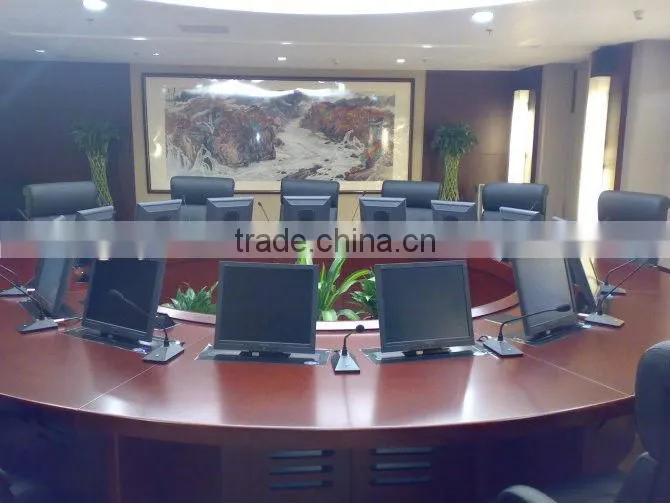

project case show
OEM IS AVAILABLE !!!PLS DO FEEL FREE TO CONTACT ME !
CE approval
