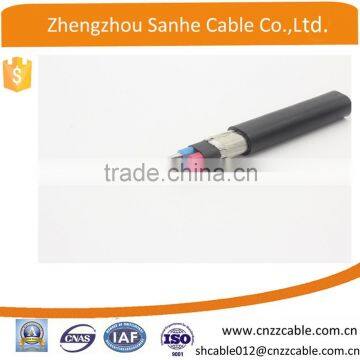

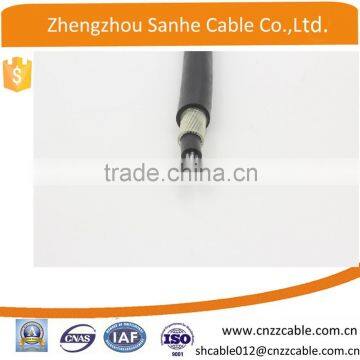

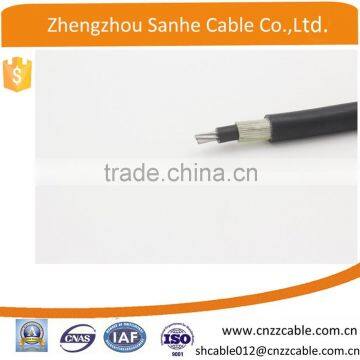

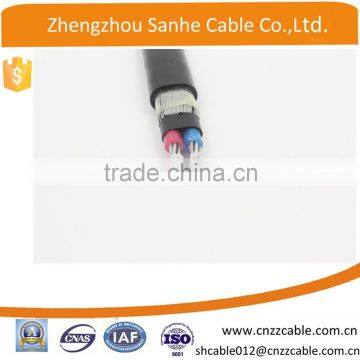

This specifications is for PVC insulated single phase concentric cables with circular stranded aluminum conductors for operation up to and including 1000 volts between phases and 600 volts to earth .The cable shall have a central phase single-wire aluminum conductor insulated with red PVC and concentric layer comprising bare aluminum wires (combined neutral—earth conductor) and outer sheath in black PVC.
ASTM 600/1000v | |||||||||
Core | AWG | Structure Size (mm) | Copper cable (kg/km) | ||||||
Conductor | Insulation | Concentric conductor | Outer sheath | ||||||
Single wire | XLPE | Single wire | UV-PVC | ||||||
No. | Dia. | Thick | No. | Dia. | Thick | Dia. | |||
1 | 16 | 7 | 0.49 | 1.14 | 39 | 0.321 | 1.14 | 6.82 | 81.46 |
1 | 10 | 7 | 0.98 | 1.14 | 34 | 0.511 | 1.14 | 8.67 | 172.04 |
1 | 8 | 7 | 1.23 | 1.14 | 25 | 0.643 | 1.14 | 9.68 | 221.58 |
1 | 6 | 7 | 1.55 | 1.14 | 25 | 0.813 | 1.14 | 10.98 | 160.50 |
1 | 4 | 7 | 1.96 | 1.14 | 27 | 1.020 | 1.14 | 12.62 | 509.26 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
IEC 60502-1 IEC 60228 600/1000v | |||||||||
Size (mm2) | Structure Size mm | Copper cable (kg/km) | |||||||
Concuctor | Insulation | Concentric conductor | Outer sheath | ||||||
Single wire | Dia. | PVC | Single wire | UV-PVC | |||||
No. | Dia. | Thick | No. | Dia. | Thick | Dia. | (kg/km) | ||
10 | 7 | 1.35 | 4.05 | 1.55 | 20 | 0.85 | 1.4 | 11.79 | 301.55 |
16 | 7 | 1.7 | 5.1 | 1.55 | 32 | 0.85 | 1.4 | 12.84 | 431.7 |
25 | 7 | 2.14 | 6.42 | 1.6 | 29 | 1.13 | 1.5 | 15.02 | 647.46 |
|
|
|
|
|
|
|
|
|
|
16 | 7 | 1.7 | 5.1 | 1.55 | 26 | 1.13 | 1.4 | 13.42 | 244.16 |
25 | 7 | 2.14 | 6.42 | 1.6 | 29 | 1.13 | 1.5 | 15.02 | 307.3 |
35 | 19 | 1.53 | 7.65 | 1.65 | 27 | 1.35 | 1.6 | 16.99 | 390.15 |
|
|
|
|
|
|
|
|
|
|
