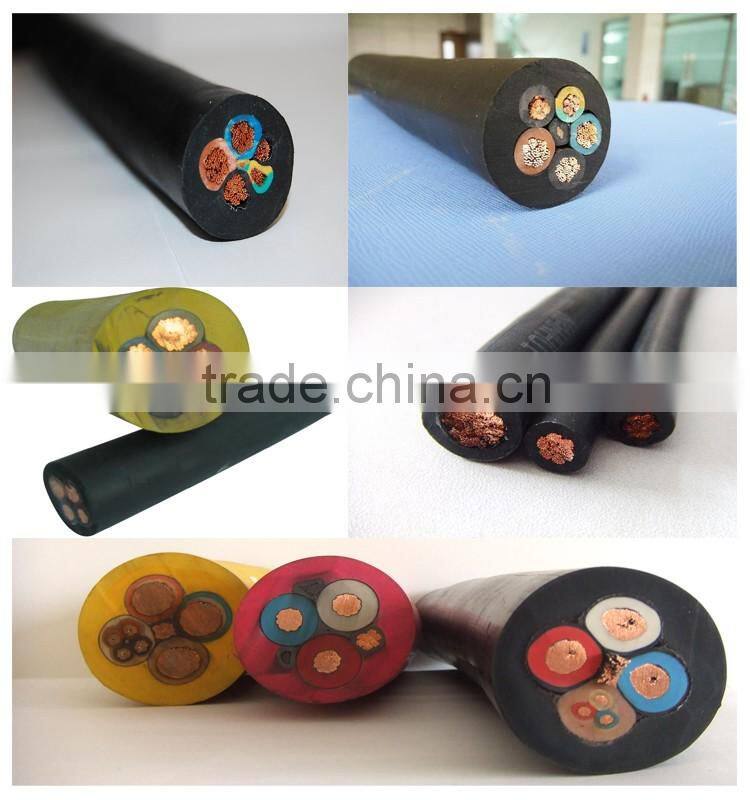

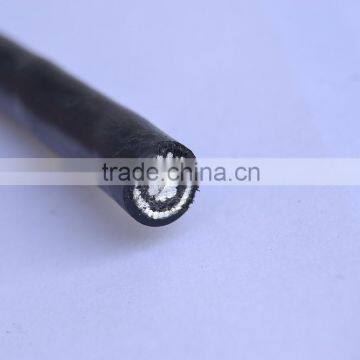

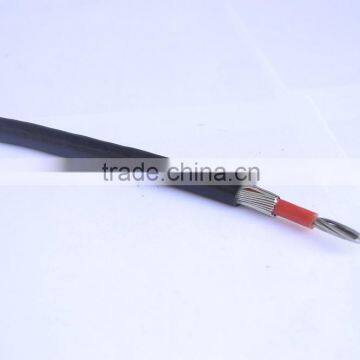

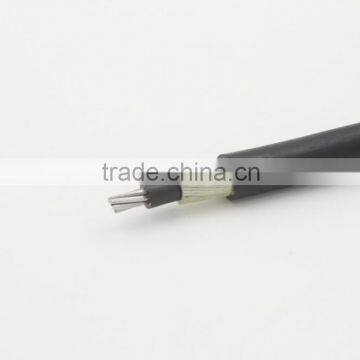

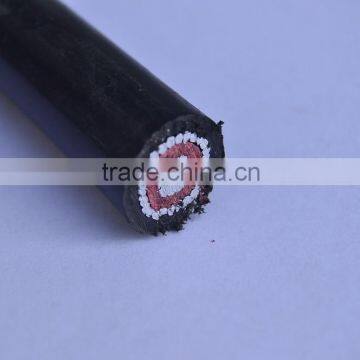

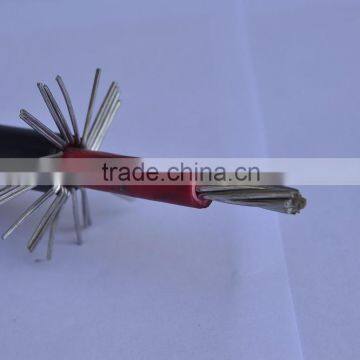

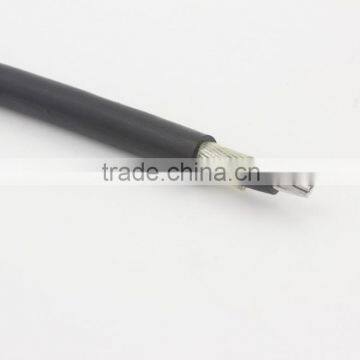

Copper Aluminum Alloy Conductor Xlpe/pe/pvc Insulated Concentric Cable 2*8awg

 Power cables for energy supply are used for industry and distribution boards, power stations, house connecting boxes and street lighting as well as control cable for the transmission of control impulses and test data. Overall, where increased electrical and also mechanical protection are required. Those cables are installed in open air, in underground, in water, indoors and in cable ducts. The concentric conductor (C) is allowed to use as PE-, PEN-conductor or as shield. due to the typical construction of concentric conductors it is possible to obtain many more cable joints, without cutting any conductor. In that way the operating reliability is guaranteed.

Copper aluminum alloy conductor xlpe/pe/pvc insulated concentric cable 2*8awg

Standard:
Low votage polymeric insulated cables for use by distribution and generation utilities. Specification for distribution cables of rated voltage 0.6/1 kV. XLPE insulated combined neutral and earth copper wire concentric cables with copper or aluminium conductors

Conductors: Stranded Annealed Copper

Insulation: XLPE (Cross-linked Polyethylene)
Concentric layer: Single layer of plain annealed copper wires

Sheath/Jacket: PE(Polyethylene) or XLPE (Cross-linked Polyethylene)

Voltage: 600/1000v

Operating temperature: Maximum 90°C, minimum -30°C

Common Used Colours:

For insulation: Black, Blue and Red.

For external jacket: Black

Copper aluminum alloy conductor xlpe/pe/pvc insulated concentric cable 2*8awg

Packing:

Wooden DrumOr length to the client's requirement.

Available Size: MM2, AWG or MCM

2 x 8 2 x 6 2 x 4 2 x 2 2 x 1/0 2 x 2/0 2x8 2x10

3 x 8 2x6 3 x 6 2x4 3 x 4 2x2 3 x 2

3 x 1/0 3 x 2/0 4 x 8 4 x 6 4 x 4 4 x 2

 2*4mm2 2*6mm2 2*10mm2 2*16mm2

 3*4mm2 3*6mm2 3*10mm2 3*16mm2

 4*4mm2 4*6mm2 4*10mm2 4*16mm2

 Copper aluminum alloy conductor xlpe/pe/pvc insulated concentric cable 2*8awg

Zhengzhou sanhe cable co.,ltd.was founded by one of the most professional manufactures in Wires & Cable Indusrty –Zhengzhou sitong cable co.,ltd.

We specialize in producing and exporting all kinds of wires and cables.We have advance tech-staff and advanced equipment.

Since we were founed,we have been built favorable business relationship with many customers from different markets all over the word,such as Middest East,Africa,Europe,South America,Australia ,Sotheast Asia ,etc.

Our main products include PVC insulated wire & cable,0.6/1kV XLPE insulated power cable,(ABC cable),Service Drop(Single,Duplex,Triplex,)

AAC,AAAC,ACSR,Concentric cable.Building wire,Welding cabel,etc.we have the capcity to design and produce all kinds of wires and cables according to your special requirements.

Our factory could produce the wires and cables according to many standards including GB,IEC,ASTM,DIN,JIS,NF,IS,CSA,AS/NES and soon.we will do our best to meet your requirements.

 Copper aluminum alloy conductor xlpe/pe/pvc insulated concentric cable 2*8awg

 Copper aluminum alloy conductor xlpe/pe/pvc insulated concentric cable 2*8awg

1. What is the min.order quantity ?
It depends on the type and size of electrical wires and cables. For some small electrical wires, 100 meters can be accepted .But for the power cables with medium or high voltage, that should comply with the property of installed equipments. Anyhow,we will try our best to solve the problem and meet with the requirement If you have special request.

2. What is the production capacity per week or per month ?
For the bare conductor, we can finish 3000 tons within one month. For power cables, that depends on the type and size. The total output value per month is approx. USD3,000,000.00 for insulated aluminum cables and that is approx. USD8,000,000.00 for insulated copper cables.

3.How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.

1. What is the min.order quantity ?
It depends on the type and size of electrical wires and cables. For some small electrical wires, 100 meters can be accepted .But for the power cables with medium or high voltage, that should comply with the property of installed equipments. Anyhow,we will try our best to solve the problem and meet with the requirement If you have special request.

2. What is the production capacity per week or per month ?
For the bare conductor, we can finish 3000 tons within one month. For power cables, that depends on the type and size. The total output value per month is approx. USD3,000,000.00 for insulated aluminum cables and that is approx. USD8,000,000.00 for insulated copper cables.

3.How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.

Copper aluminum alloy conductor xlpe/pe/pvc insulated concentric cable 2*8awg
