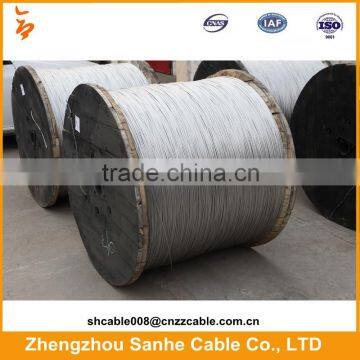

ACSR Bare BS EN ASTM DIN Conductor
US$ 0.2 - 20
MOQ: 5000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
Sanhe
Model Number:
acsr
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High-quality ACSR Conductor/overhead Cable /ASTM B232 Dove With Best PriceUS$ 0.2 - 20MOQ: 5000 Meters -
ACSR Bison ConductorUS$ 0.2 - 20MOQ: 5000 Meters
-
Bare Conductor 477 Mcm ACSR Hawk Conductor PriceUS$ 0.2 - 20MOQ: 5000 Meters
-
Aluminum Cable 240mm2 ACSR Overhead Line ConductorUS$ 0.2 - 20MOQ: 5000 Meters
-
Aluminum Conductor Steel Reinforced ACSR DIN Bare ConductorUS$ 0.2 - 20MOQ: 5000 Meters
Place of Origin
Henan, China
Brand Name
Sanhe
Model Number
acsr
Insulation Material
Other, Non
Type
High Voltage
Application
Overhead
Conductor Material
Aluminum
Jacket
Other, Non
ACSR is used in power transmission lines. We are in the production base and have decades of experience.
AAC, AAAC, ACSR, ACSR/AW, AACSR&ACAR conductor widely used in power transmission lines with various voltage levels. Since they have such good characteristics as simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity and are also suitable for laying across rivers and valleys where special geographical teatures exist.
1. Specification:
(1) all aluminium conductor (AAC)
(2) all aluminimum alloy conductor(AAAC)
(3) aluminum conductor steel reinforced (ACSR)
(4) anti-corrosion type ACSR
(5) aluminimum conductor aluminimum clad steel reinforced(ACSR/AW)
(6)rear earth aluminimum conductor steel reinforced(ACSR/RE)
(7)aluminimum conductor aluminimum alloy reinforced(ACAR)
2. Elative manufacturing standards: IEC83, IEC1089, 31, B232, BS215, DIN48204
1). Standard: IEC61089, BS215 part2, ASTM B232, DIN48204, BS EN50182
2). Specification: ACSR is composed by bare concentric-lay-stranded galvanized steel wire(s) with aluminum wires surrounded by one or more layers of helically. Greased ACSR can also be supplied.
3). Application: ACSR is widely used in overhead electric power transmission and distribution lines with various voltage levels
All Aluminum Conductor(AAC)& Aluminum Conductor Steel Reinforced(ACSR))for ASTM (AAC, ACCR, AAAC, ACSR) Generally Confirming to IS 398 (Part-I, II, IV), IEC-228
(ACSR) as per IS: 398-II: 1976 & IS: 398-V: 1992
(ACSR) BS-215-II-1970
(AACSR) as per IEC-1089-1191
AAC(All aluminum conductor) are suited for overhead power line.
We can supply this conductor according to different recognized standards, such as IEC61089, BS215, BS EN 50182: 2001, STM B231, CSA C49, DIN480201, JIS C3109, customer special specification also can be satisfied.
ACSR or ACSR cable or ACSR conductor used for Overhead electrical distribution and transmission lines for distributing power
1. Applications
Used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.
2. Construction
Aluminum alloy 1350-H-19 wires, concentrically stranded about a steel core. Core wire for ACSR is available with class A, B, or C galvanizing; ""aluminized"" aluminum coated (AZ); Or aluminum-clad (AW). Additional corrosion protection is available through the application of grease to the corer or infusion of the complete cable with grease.
3. Specifications
ACSR bare conductor meets or exceeds the following ASTM specifications:
B-230 Aluminum Wire, 1350-H19 for Electrical Purposes
B-231 Aluminum Conductors, Concentric-Lay-Stranded
B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR)
B-341 Aluminum-clad Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AW)
B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ)
B-500 Zinc Coated and Aluminum Coated Stranded Steel Core for Aluminum Conductors Steel Reinforced
| ASTM B232/B232M-99 ACSR | ||||||
| Size | stranding & wire diameter | Approximate overall diameter | ||||
| Aluminum | steel | |||||
| Cmils or AWG | mm2 | Number | mm | Number | mm | mm |
| 3/0 | 85.14 | 6 | 4.25 | 1 | 4.25 | 12.75 |
| 4/0 | 107.2 | 6 | 4.77 | 1 | 4.77 | 14.31 |
| 1/0 | 53.52 | 6 | 3.37 | 1 | 3.37 | 10.11 |
| 2/0 | 67.32 | 6 | 3.78 | 1 | 3.78 | 11.34 |
| 2 | 33.59 | 6 | 2.67 | 1 | 2.67 | 8.01 |
| 477000 | 241.65 | 26 | 3.44 | 7 | 2.67 | 21.77 |
| 477000 | 241.27 | 30 | 3.2 | 7 | 3.2 | 22.4 |
| 795000 | 402.56 | 26 | 4.44 | 7 | 3.45 | 28.11 |
| 79500 | 402.33 | 24 | 4.62 | 7 | 3.08 | 27.72 |
Company Information
Zhengzhou Sanhe Cable Co.,Ltd. It was founded in 2008, which is a professional manufacturer and expoarter of cables for about 8 years, serving overseas clients only.
We have the mature technology,rich experience, good engineers, and establish business relationship with customers all over the world with good quality. Thay are from Asia, Middle East, Latin-America, etc.
We main products, including AAC, AAAC, ACSR, ABC Conductor, Concentric cable,PVC/XLPE/PE insulated Wire,Power cable
and so on.
Our Office
Our Factory
Our main products
Bare conductor: AAC, AAAC, ACSR, ACAR conductor;
ABC cable: duplex,triplex, quardruplex service drop;
Concentric cable: aluminum or copper conductor, one/ two/ multi-core optional;
PVC insulation wire: solid or flexible copper conductor wire;
Power cable: PVC/ XLPE insulated armoured/ non-armoured PVC sheathed, etc.
