Specifications
AAC tulip cable aluminum overhead cablesmall order can be accepted
best serive for you
factory direct sales
AAC bare conductor have been widely used in power transmission lines with various voltage levels,because it have such good characteristics as simple structure,convenient installation and maintenance,low cost large transmission capacity.And it is also suitable for laying across rivers valleys and the places where special geographical features exist.
AAC Conductor is mainly used as bare overhead transmission cable and as primary and secondary distribution cable.
IEC61089, BS215 , ASTM B231, DIN48204, BS EN50182,JIS C3109.

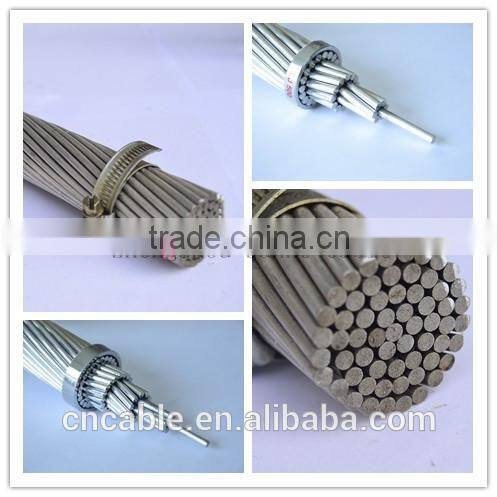

AAC tulip cable aluminum overhead cable is comply with ASTM B231
staranding no.: 19
wire diameter: 3.38074mm
approximate overall diameter:16.90mm
total area:170.56mm2
approximate weight: 469kg/km
rated strength :27.3kn
DC resistance at 20 ℃: 0.16949152Ω/km
current rating:364A
ALL ALUMINUM ALLOY CONDUCTOR (AAAC)
ALL ALUMIUNM CONDUCTOR (AAC)
ALUMINUM CONSUCTOR STEEL REINFORCED (ACSR)
ANTI-CORROSION TYPE ALUMINUM CONDUCTOR STEEL REINFORCED
ALUMINUM ALLOY CONDUCTOR STEEL REINFORCED
ALUMIUNM CONDUCTOR ALUMINUM ALLOY REINFORCED
ALUMINUM CONDUCTOR STEEL COATED ALUMINUM REINFORCED
- Are your company a factory?
Yes, we are a manufacture with rich experience. Our facory are located in zhengzhou,henan province, the center of China. And the transportation is convenient .
- How can I get the samples?
It's our pleasure to offer you the samples .We'd like to supply samples according to your requirement.
- What's the MOQ?
The MOQ is different as the size and type of wire and cable is differnent. Pls feel free to contact me to confirm it.
- What's your market?
Our products are mainly exported to the Middle-east, South Asia,Europe,Africa,North-America,South-America etc.
- What's the standard of your products?
Our products are comply with the GB,IEC,ASTM,DIN,BS standard etc.We can also produce according to our customer's special requirement.
If you want to know more information about AAC tulip cable aluminum overhead cable , pls feel free to contact me.
