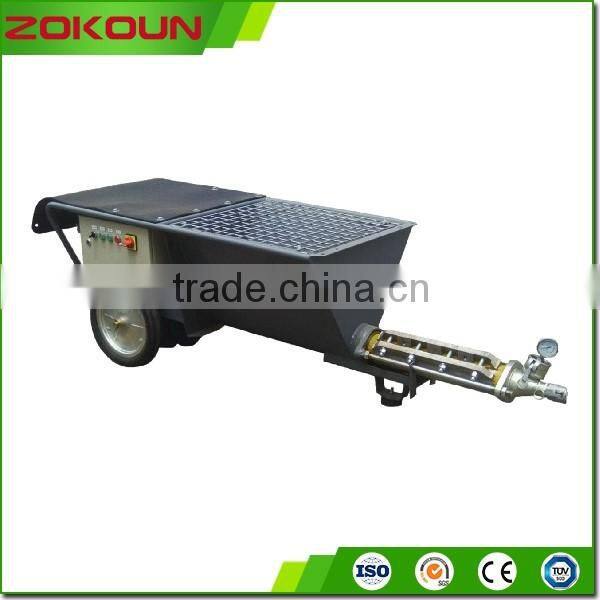

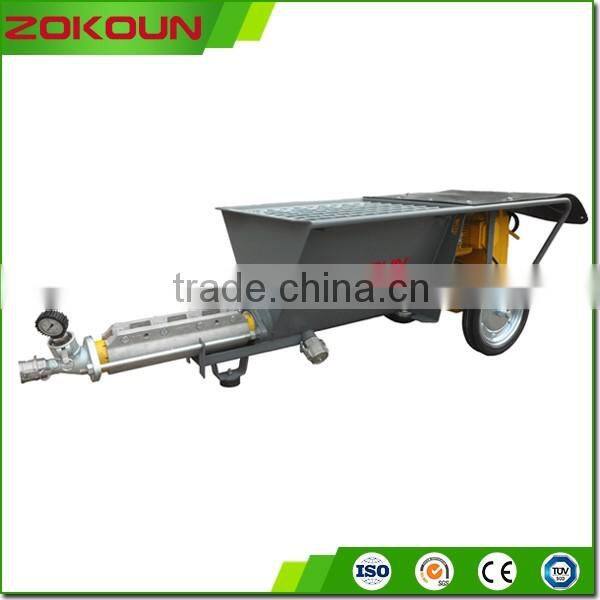

Automatic Wall Plastering Concrete Mixer High Pressure Pump Sprayer

Automatic Wall Plastering Concrete Mixer High Pressure Pump Sprayer photo-1
Automatic Wall Plastering Concrete Mixer High Pressure Pump Sprayer photo-2
Automatic Wall Plastering Concrete Mixer High Pressure Pump Sprayer photo-3
Automatic Wall Plastering Concrete Mixer High Pressure Pump Sprayer photo-4
Automatic Wall Plastering Concrete Mixer High Pressure Pump Sprayer photo-5
Automatic Wall Plastering Concrete Mixer High Pressure Pump Sprayer photo-6
US$ 2,759.4 - 5,518.8 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Mortar, paint, putty and kinds of waterproof or fireproof material
Place of Origin:
Shanghai, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo and any port of China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Mortar, paint, putty and kinds of waterproof or fireproof material
Place of Origin Shanghai, China
Brand Name ZOKOUN
Model Number ZKPS-S5
Dimension(L*W*H) 2200*900*1300mm
Weight 240kg
Certification ISO CE
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

Automatic wall plastering concrete Mixer high pressure pump sprayer

Mortar pump of Ad.
  • Application: spraying concrete construction in tunnel, culvert, railway, highway, water conservancy projects, underground projects, coal mine, moorland mine well and roadway.
  • Gun connection with the feeding tube can be separated easily and rotated for easy operation.
  • High efficiency, good quality.
  • Easy structure, easy to handling on-site,and accessories is cheap ,easy to maintenance.
  • Easy to operate, fast speed, saving materials, saving labor, saving money

 Automatic wall plastering concrete Mixer high pressure pump sprayerAutomatic wall plastering concrete Mixer high pressure pump sprayerAutomatic wall plastering concrete Mixer high pressure pump sprayerAutomatic wall plastering concrete Mixer high pressure pump sprayer

Technical data of S



Model

S5

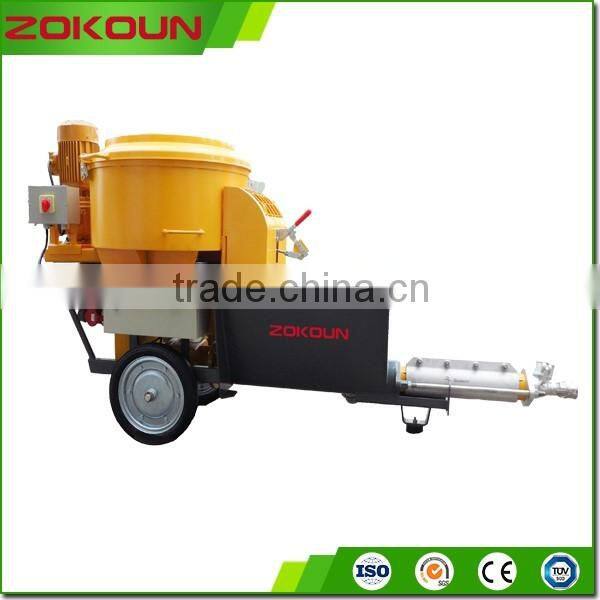

S5M

(WITH MIXER)

S7.5

S7.5M

(WITH MIXER)

Plastering capacity

7-50L/min.

7-50L/min.

7-55L/min.

7-55L/min.

Max. pressure

40bars

40bars

40bars

40bars

Max. grain

6mm

6mm

6mm

6mm

Voltage

380v, 50hz/60hz

380v, 50hz/60hz

380v, 50hz/60hz

380v, 50hz/60hz

Electricity phase

3

3

3

3

Pump

5.5kw,  German brand

5.5kw,   German brand

7.5kw,   German brand

7.5kw,   German brand

Variable speed control

Yes

Yes

Yes

Yes

Mixer power

/

2.2kw

/

2.2kw

Volume of storage bunker

120L

120L

120L

120L

Max. vertical distance

50m

50m

50m

50m

Max. horizontal distance

80m

80m

80m

80m

Net weight

240kg

280kg

300kg

300kg

Dimension(mm)

2200*900*1300

2200*900*1300

2200*900*1300

2200*900*1300

Cement : Sand

1:3

1:3

1:3

1:3

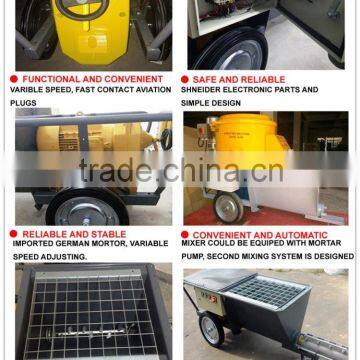

Profile of Sprayer

Automatic wall plastering concrete Mixer high pressure pump sprayerAutomatic wall plastering concrete Mixer high pressure pump sprayerAutomatic wall plastering concrete Mixer high pressure pump sprayerAutomatic wall plastering concrete Mixer high pressure pump sprayerAutomatic wall plastering concrete Mixer high pressure pump sprayerAutomatic wall plastering concrete Mixer high pressure pump sprayerAutomatic wall plastering concrete Mixer high pressure pump sprayerAutomatic wall plastering concrete Mixer high pressure pump sprayer
