Vertical Portable Concrete Mixer and Pump Lime Spray Plaster Machine
US$ 899.4 - 1,798.8
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Mortar, paint, putty and kinds of waterproof or fireproof material, Mortar, paint, putty and kinds of waterproof or fireproof material
Place of Origin:
Shanghai, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo OR any port in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Good Performance! Factory Cheap Price Small Concrete Mixer With PumpUS$ 899.4 - 1,798.8MOQ: 1 Unit -
Great Price Mobile Concrete Mixer Pump Gypsum Cement PlasteringUS$ 899.4 - 1,798.8MOQ: 1 Unit
-
Factory Price Electric Automatic Wall Concrete PumpUS$ 1,439.4 - 2,878.8MOQ: 1 Unit
-
Good Quality Automatic Small Concrete Pump With MixerUS$ 1,199 - 1,466MOQ: 1 Unit
-
Cheap Efficient BIG Capacity Wall Cement Mortar Pump With Best PriceUS$ 2,759.4 - 5,518.8MOQ: 1 Unit
Condition
New
Application
Mortar, paint, putty and kinds of waterproof or fireproof material, Mortar, paint, putty and kinds of waterproof or fireproof material
Place of Origin
Shanghai, China
Brand Name
ZOKOUN
Model Number
ZKPS-PL3
Dimension(L*W*H)
1100*600*1500 mm
Weight
60 kg
Certification
ISO CE
Warranty
12 months, 1 year after receipt of the equipment

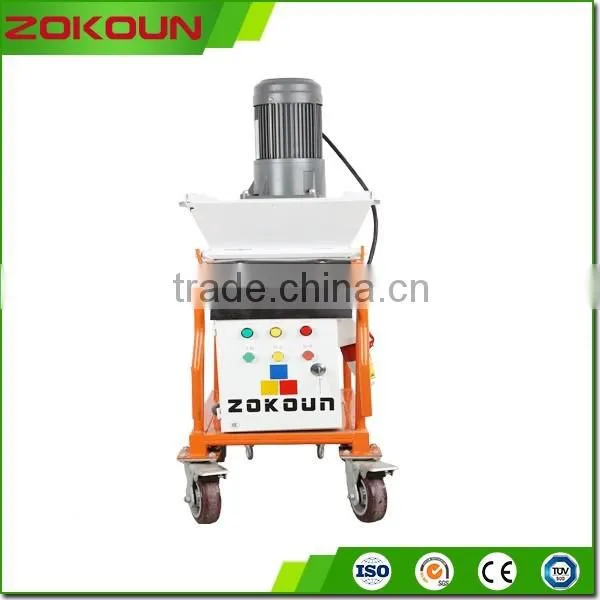

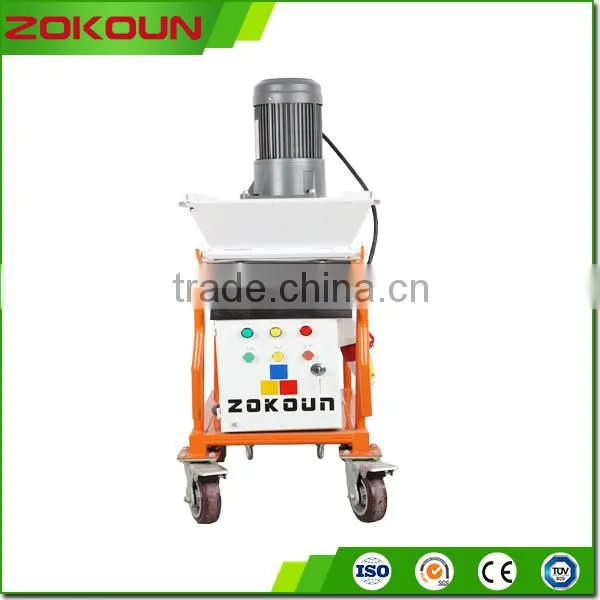

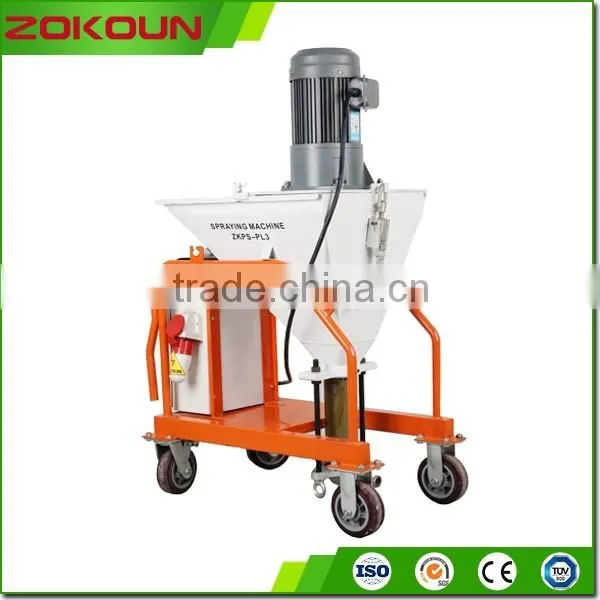

Vertical portable concrete mixer and pump lime spray plaster machine
Mortar pump of Ad.
- Application: spraying concrete construction in tunnel, culvert, railway, highway, water conservancy projects, underground projects, coal mine, moorland mine well and roadway.
- Gun connection with the feeding tube can be separated easily and rotated for easy operation.
- High efficiency, good quality.
- Easy structure, easy to handling on-site,and accessories is cheap ,easy to maintenance.
- Easy to operate, fast speed, saving materials, saving labor, saving money.
PL3/3B /3F sprayer
Specification |
PL3 |
PL3B |
PL3F |
Max. Plastering capacity |
15L/min. |
7-35L/min. |
7-35L/min. |
Max. grain |
4mm |
6mm |
6mm |
Pressure |
25 bars |
30 bars |
30 bars |
Voltage |
220 v |
380 v |
220 v |
Electricity phase |
1 |
3 |
1 |
Built-in air compressor |
YES |
Optional |
Optional |
Vibration sieve |
NO |
Optional |
Optional |
Total power |
3.0kw |
4.0kw |
4.0kw |
Rotate speed |
500 rpm |
500 rpm |
500 rpm |
Adjustable speed |
No |
Yes |
Yes |
Volume of storage hopper |
40 L |
50 L |
50 L |
Max. vertical distance |
15 |
15m |
15m |
Max. horizontal distance |
20m |
30m |
30m |
Net weight |
60kg |
80kg |
85kg |
Dimension(mm) |
1100*600*1500 |
1000*550*1300 |
1000*550*1300 |
Warranty |
12 months |
12 months |
12 months |
Profile of Sprayer
