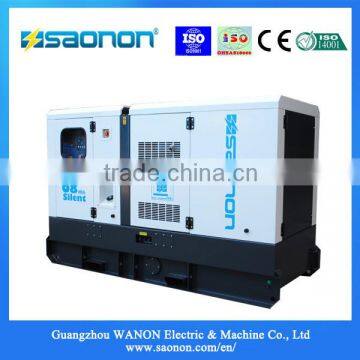

120kva Water Cooled Silent Diesel Generator Set for Bank , Buildings

120kva Water Cooled Silent Diesel Generator Set for Bank , Buildings thumbnail-1
120kva Water Cooled Silent Diesel Generator Set for Bank , Buildings thumbnail-2
120kva Water Cooled Silent Diesel Generator Set for Bank , Buildings thumbnail-3
120kva Water Cooled Silent Diesel Generator Set for Bank , Buildings thumbnail-4
120kva Water Cooled Silent Diesel Generator Set for Bank , Buildings thumbnail-5
120kva Water Cooled Silent Diesel Generator Set for Bank , Buildings thumbnail-6
120kva Water Cooled Silent Diesel Generator Set for Bank , Buildings photo-1
120kva Water Cooled Silent Diesel Generator Set for Bank , Buildings photo-2
120kva Water Cooled Silent Diesel Generator Set for Bank , Buildings photo-3
120kva Water Cooled Silent Diesel Generator Set for Bank , Buildings photo-4
120kva Water Cooled Silent Diesel Generator Set for Bank , Buildings photo-5
120kva Water Cooled Silent Diesel Generator Set for Bank , Buildings photo-6
US$ 14,000 - 37,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
United States
Brand Name:
SAONON
Model Number:
S120EP6S
Contact Supplier Request Quote Chat Now
Guangzhou Wanon Electric & Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou /Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin United States
Brand Name SAONON
Model Number S120EP6S
Output Type AC Three Phase
Speed 1800RPM
Frequency 60Hz
Rated Power 109kVA
Rated Voltage 480V
Rated Current 144A



Product Description



Reliable and efficient generating set equipped with world-famous  engine,  Leroysormer alternator and the world advanced control panel.



Product features:

Cabinet and base frame are made of high quality slabs and coated with excellent coating material, with three layers of bottom-medium-top spraying process.

Base frame is designed with two detachable sections.

High strength base frame material can significantly reduce the vibration during operation.

Marvelous spray coating technology can effectively prevent against rain and noise.

Special sound absorbing material and system can maximally reduce noises to 65 dB (A)/7m.



 Application scope:



It is suitable for environment with high requirement for noise reduction, such as residential area, high-end office buildings, hotels, scientific research institutes, hospitals, universities and colleges, etc.







Selection Table



GensetModel Standbypower PrimePower Dimension
L×W×H
(mm)		 Weight
(kg)		 EngineModel
kVA kW kVA kW
S12JSP6S 12 10 11 9 2200×1033×1304 946 403D-11G
S17JSP6S 17 13 15 12 2200×1033×1304 1006 403D-15G
S20JSP6S 20 16 18 14 2200×1033×1304 1006 403A-15G2
S26JSP6S 26 21 24 19 2200×1033×1304 1130 404D-22G
S35JSP6S 35 28 31 25 2200×1033×1304 1154 404D-22TG
S40EP6S 40 32 37 29 2200×1033×1304 1180 404D-22TAG
S60EP6S 59 47 53 42 2300×1133×1376 1484 1103A-33T/DK32045
S70EP6S 70 56 / / 2500×1133×1566 1590 1104D-44TG1
S75EP6S 75 60 68 54 2300×1133×1376 1484 1103A-33T/DK32046
S80EP6S 80 64 / / 2700×1133×1666 1780 1104D-E44TG1
S85JSP6S 83 66 75 60 2300×1133×1376 1553 1104A-44TG1
S100JSP6S 100 80 90 72 2300×1133×1376 1597 1104A-44TG2
S100JSP6S 100 80 90 72 2300×1133×1376 1597 1104C-44TAG1
S100EP6S 100 80 / / 2700×1133×1666 1805 1104D-E44TAG1
S125JSP6S 125 100 112 90 2700×1133×1666 1805 1104C-44TAG2
S125EP6S 125 100 / / 2700×1133×1666 1805 1104D-E44TAG2
S168JSP6S 168 135 153 122 3600×1333×2040 2820 1106A-70TG1
S178JSP6S 178 143 163 130 3600×1333×2040 2820 1106D-E70TAG2
S188JSP6S 188 150 170 136 3600×1333×2040 2845 1106A-70TAG2
S188JSP6S 188 150 170 136 3600×1333×2040 2845 1106D-E70TAG3
S220JSP6S 219 175 197 158 3600×1333×2040 2914 1106A-70TAG3
S270EP6S 269 215 245 196 4100×1490×2000 4500 1506A-E88TAG1
S315EP6S 313 250 281 225 4100×1490×2000 4500 1506A-E88TAG3
S345EP6S 344 275 313 250 4100×1490×2000 4500 1506A-E88TAG4
S375EP6S 375 300 341 273 4100×1490×2000 4600 1506A-E88TAG5
S438EP6S 438 350 400 320 4500×1583×2200 4774 2206A-E13TAG2
S438EP6S 438 350 400 320 4500×1583×2200 4774 2206A-E13TAG5
S438EP6S 438 350 / / 4500×1583×2200 4774 2206D-E13TAG2
S500EP6S 500 400 / / 4500×1583×2200 4800 2206D-E13TAG3
S500EP6S 500 400 438 350 4500×1583×2200 4800 2206A-E13TAG6
S550EP6S 550 440 / / 4700×1583×2200 5089 2506D-E15TAG1
S550EP6S 550 440 500 400 4700×1583×2200 5100 2506A-E15TAG3
S625EP6S 625 500 569 455 4700×1583×2200 5216 2506A-E15TAG4
S688EP6S 688 550 625 500 4700×1983×2200 5911 2806A-E18TAG1A
S688EP6S 688 550 / / 4700×1983×2200 5911 2506C-E15TAG4
S688EP6S 688 550 / / 4700×1983×2200 5911 2806C-E18TAG1A
S750EP6S 750 600 681 545 4700×1983×2200 5960 2806A-E18TAG3
S750EP6S 750 600 / / 4700×1983×2200 5960 2806C-E18TAG3







Details







Classic Cases

 120kva water cooled silent Diesel Generator Set for bank , buildings
