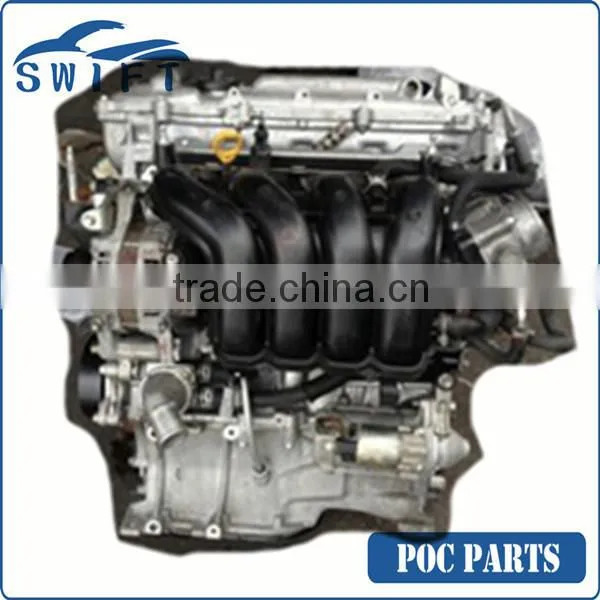

1ZZ Engine

1ZZ Engine thumbnail-1

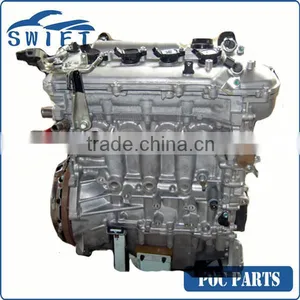

1ZZ Engine thumbnail-2
1ZZ Engine photo-1

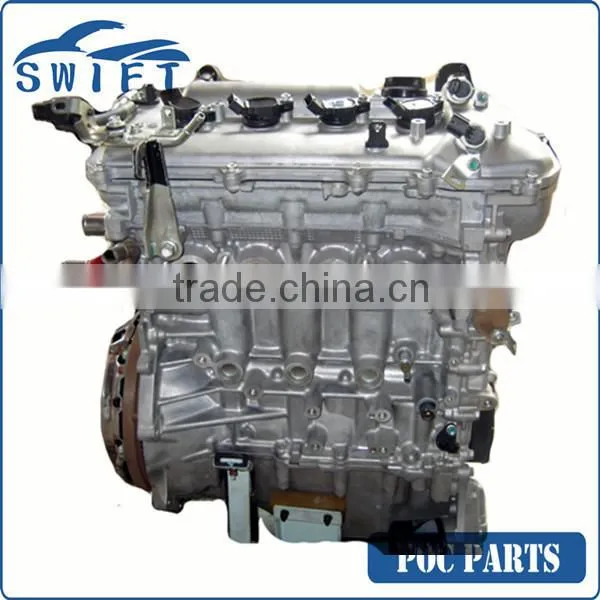

1ZZ Engine photo-2
US$ 1 - 2,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Other, Gas / Petrol Engine, DOHC,16V,CVVT
No. of Cylinders:
4 Cylinder
Power:
102KWS /6000RPM
Contact Supplier Request Quote Chat Now
Shenyang SWIFT Auto Parts Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
DALIAN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, Gas / Petrol Engine, DOHC,16V,CVVT
No. of Cylinders 4 Cylinder
Power 102KWS /6000RPM
Displacement 1.8L
Torque 172N.m/4200RPM
Place of Origin Liaoning, China
Brand Name POC
Model Number 1zz, 1zz
Warranty 12 Months
Product Description
The Toyota ZZ engine family is a straight-4 piston engine series. The ZZ series uses a die-cast aluminum engine block with aluminum silicon cylinder liners, and aluminum DOHC 4-valve cylinder heads, a first for Toyota.The camshafts are chain-driven. The two 1.8 L members of the family, the 1ZZ and 2ZZ, use different bore and stroke. The former was optimized for economy and torque, while the latter is a "square" design optimized for high-RPM power. The ZZ family replaced the extremely popular cast-iron block 4A engines.
1ZZ-FE
The 1ZZ-FE is a 1.8 L (1794 cc, 225 lb) version built in Buffalo, West Virginia. Its production in Cambridge, Ontario was discontinued in December 2007. Bore is 79 mm and stroke is 91.5 mm. Compression ratio is 10.0:1. Output is between 120 hp (89 kW) at 5600 rpm with 122 ft·lb (165 N·m) of torque at 4400 rpm, and 143 hp (105 kW) at 6400 rpm with 125.8 ft·lb (170.6 N·m) of torque at 4200 rpm. It uses multi-point fuel injection, has VVT-i and features fracture-split forged powder metal connecting rods, a one-piece cast camshaft, and either a cast aluminum intake manifold or a molded plastic one.

A bolt-on TRD supercharger kit is available on the 2003–2004 Corolla, Matrix, and Vibe. The bolt-on TRD supercharger kit can also run on other vehicles with the non VVT-i or VVT-i versions of the 1ZZ-FE. Custom fabrications are needed for those vehicles.

Applications:

Toyota Corolla CE/LE/S/VE, Fielder, Runx (Japan), Altis (Asia)
Toyota Allion
Toyota Premio
Toyota Vista and Vista Ardeo
WiLL VS
Toyota Caldina
Toyota Rav4
Chevrolet Prizm
Pontiac Vibe
Toyota Celica GT
Toyota Matrix XR
Toyota Avensis
Toyota Opa
Toyota Isis
Toyota Wish
Toyota announced a voluntary recall of 2005 to 2008 Toyota Corollas and Matrixes equipped with 1ZZ-FE engines. The issue involves the engine control module, and includes the potential for it to develop a crack on the module's circuit board, which can result in the car not starting, the transmission shifting harshly, or the engine stalling. Additionally, Pontiac announced a voluntary recall of Pontiac Vibes from years 2005 to 2008 for the same issue.
