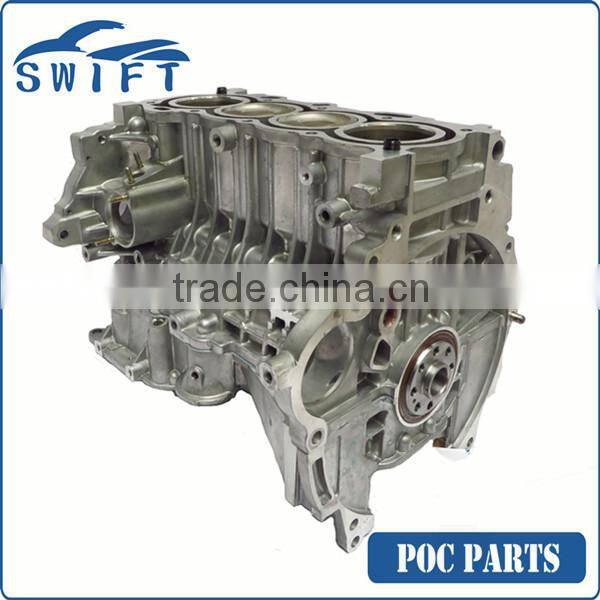

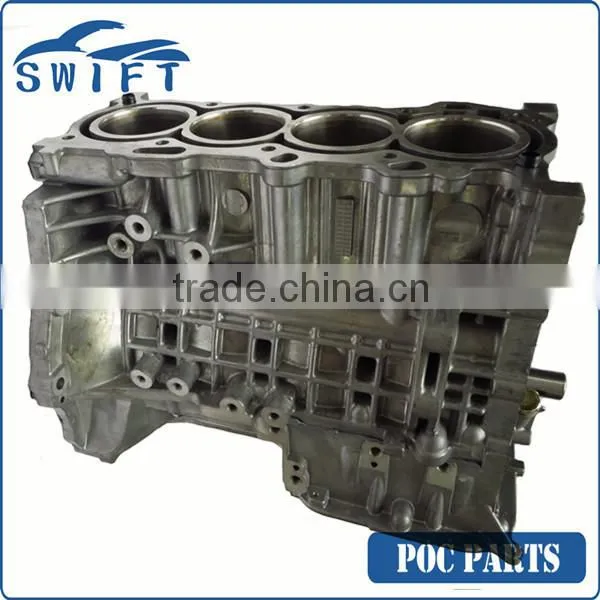

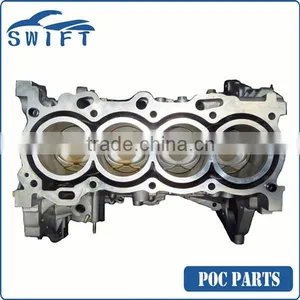

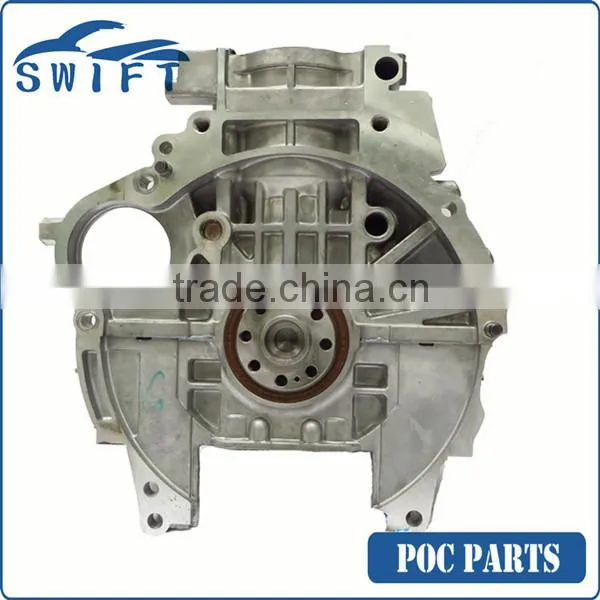

1ZZ-FE Engine Block for Toyota

1ZZ-FE Engine Block for Toyota thumbnail-1
1ZZ-FE Engine Block for Toyota thumbnail-2
1ZZ-FE Engine Block for Toyota thumbnail-3
1ZZ-FE Engine Block for Toyota thumbnail-4
1ZZ-FE Engine Block for Toyota photo-1
1ZZ-FE Engine Block for Toyota photo-2
1ZZ-FE Engine Block for Toyota photo-3
1ZZ-FE Engine Block for Toyota photo-4
US$ 1 - 500 MOQ: 10 Sets
Key Specifications
Get Latest Price
Type:
Other, Cylinder Block, Piston Cylinder 16V
Car Make:
Toyota Corolla
OE NO.:
11101-22081
Contact Supplier Request Quote Chat Now
Shenyang SWIFT Auto Parts Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
DALIAN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, Cylinder Block, Piston Cylinder 16V
Car Make Toyota Corolla
OE NO. 11101-22081
Place of Origin Liaoning, China
Brand Name POC
Model Number 1ZZ, 1ZZ
Warranty 12 Months
Product Description
The Toyota ZZ engine family is a straight-4 piston engine series. The ZZ series uses a die-cast aluminum engine block with aluminum silicon cylinder liners, and aluminum DOHC 4-valve cylinder heads, a first for Toyota.The camshafts are chain-driven. The two 1.8 L members of the family, the 1ZZ and 2ZZ, use different bore and stroke. The former was optimized for economy and torque, while the latter is a "square" design optimized for high-RPM power. The ZZ family replaced the extremely popular cast-iron block 4A engines.
1ZZ-FE
The 1ZZ-FE is a 1.8 L (1794 cc, 225 lb) version built in Buffalo, West Virginia. Its production in Cambridge, Ontario was discontinued in December 2007. Bore is 79 mm and stroke is 91.5 mm. Compression ratio is 10.0:1. Output is between 120 hp (89 kW) at 5600 rpm with 122 ft·lb (165 N·m) of torque at 4400 rpm, and 143 hp (105 kW) at 6400 rpm with 125.8 ft·lb (170.6 N·m) of torque at 4200 rpm. It uses multi-point fuel injection, has VVT-i and features fracture-split forged powder metal connecting rods, a one-piece cast camshaft, and either a cast aluminum intake manifold or a molded plastic one.

A bolt-on TRD supercharger kit is available on the 2003–2004 Corolla, Matrix, and Vibe. The bolt-on TRD supercharger kit can also run on other vehicles with the non VVT-i or VVT-i versions of the 1ZZ-FE. Custom fabrications are needed for those vehicles.

Applications:

Toyota Corolla CE/LE/S/VE, Fielder, Runx (Japan), Altis (Asia)
Toyota Allion
Toyota Premio
Toyota Vista and Vista Ardeo
WiLL VS
Toyota Caldina
Toyota Rav4
Chevrolet Prizm
Pontiac Vibe
Toyota Celica GT
Toyota Matrix XR
Toyota Avensis
Toyota Opa
Toyota Isis
Toyota Wish
Toyota announced a voluntary recall of 2005 to 2008 Toyota Corollas and Matrixes equipped with 1ZZ-FE engines. The issue involves the engine control module, and includes the potential for it to develop a crack on the module's circuit board, which can result in the car not starting, the transmission shifting harshly, or the engine stalling. Additionally, Pontiac announced a voluntary recall of Pontiac Vibes from years 2005 to 2008 for the same issue.




Company Information



SHENYANG SWIFT AUTO PARTS TRADING CO., LTD, Belong to Shenyang aerospace YUXING Machinery Manufactury.The later is a subsidiary of Chinese Aerospace Science and Industry Corporation gro.

Our main product are engines and vehicle parts.All of our products comply with international quality standards, and export to many countries. We have obtained ISO9001: 2000 and ISO / TS16949: 2002 certification up.

Company's existing production area 62,000 square meters, assets more than fifty million dollors, The main products for the 491Q, 4G22D4, 486Q, 4G20D4, 4A9, 4G6 and other engines Includ : engine, crankshaft, connecting rod, manifold, a chain wheel chamber assembly, chain wheel chamber cover assembly, oil seal, oil filter assembly, camshaft cover etc...

we also have ability to develop new proWe cooperate with many famous enterprice.Such as : Aerospace Mitsubishi china, Dalian diesel engine factory, FAW , Great Wall , Shenyang Xinguang company.

DUSTAS OTDER:

"excellence quality, exceed customer expectations"are our guidelines .Welcome to visit our factory and discuss cooperation with us.
