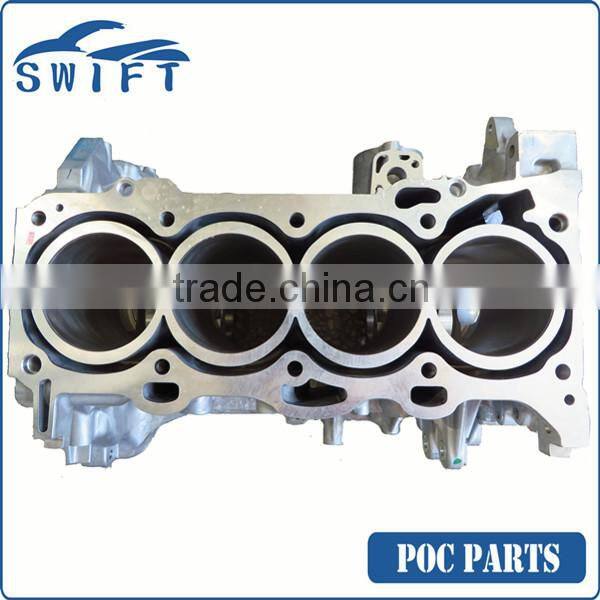

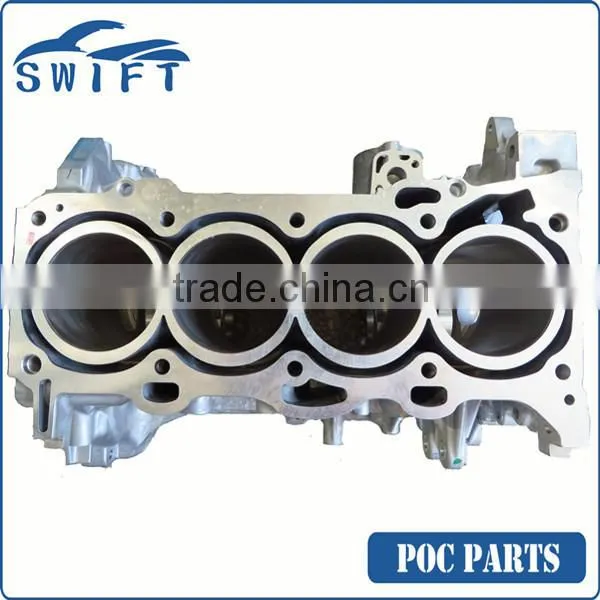

2AZ Engine Block for Toyota

2AZ Engine Block for Toyota thumbnail-1
2AZ Engine Block for Toyota thumbnail-2
2AZ Engine Block for Toyota thumbnail-3
2AZ Engine Block for Toyota thumbnail-4
2AZ Engine Block for Toyota thumbnail-5
2AZ Engine Block for Toyota thumbnail-6
2AZ Engine Block for Toyota photo-1

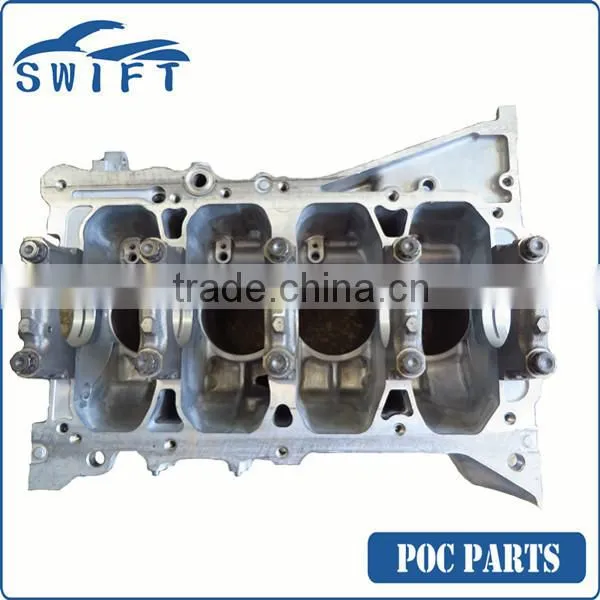

2AZ Engine Block for Toyota photo-2

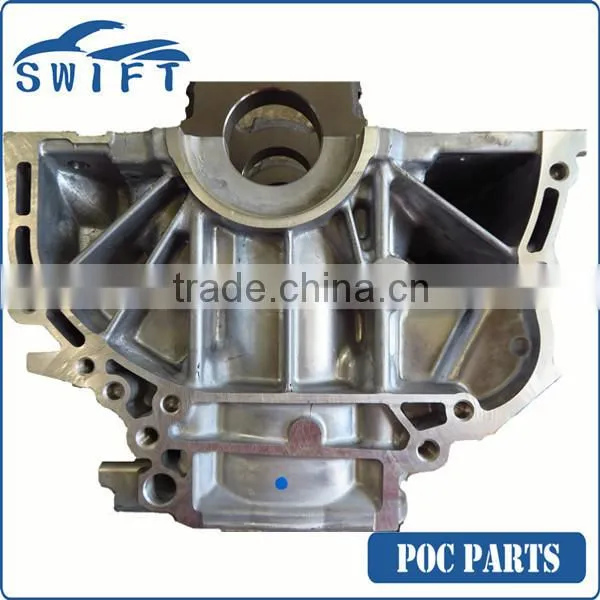

2AZ Engine Block for Toyota photo-3

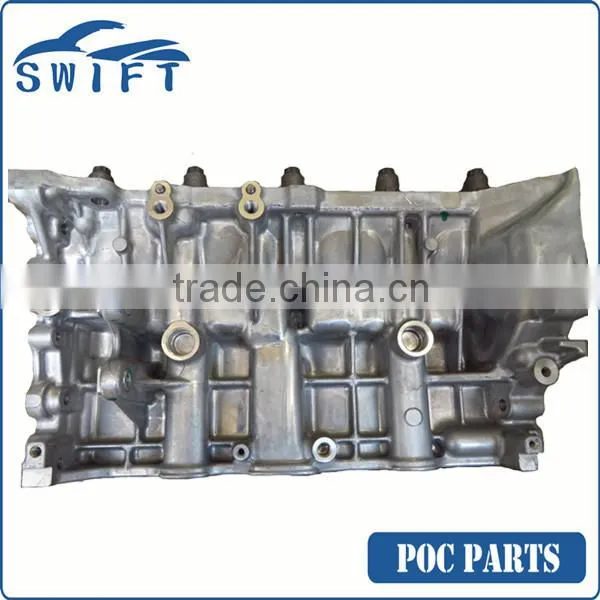

2AZ Engine Block for Toyota photo-4

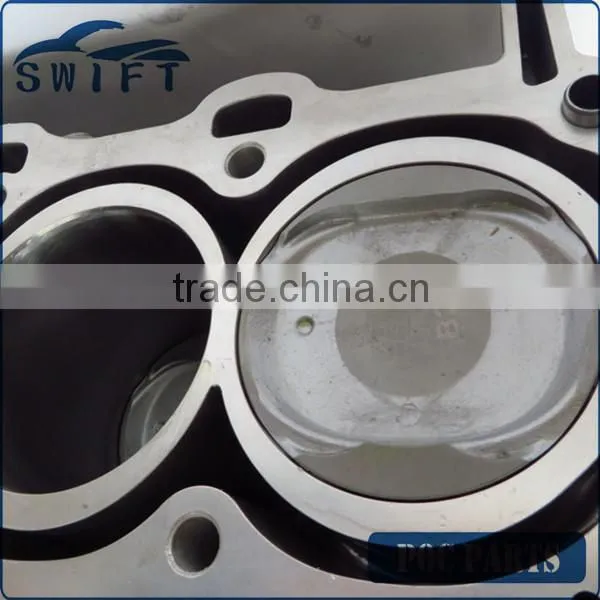

2AZ Engine Block for Toyota photo-5

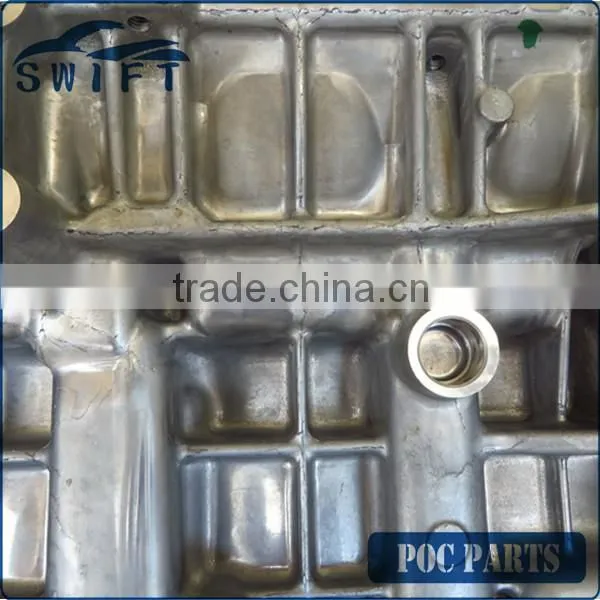

2AZ Engine Block for Toyota photo-6
US$ 1 - 1,000 MOQ: 10 Sets
Key Specifications
Get Latest Price
Type:
Other, Cylinder Block, Piston Cylinder DOHC,16V,VVTI
Car Make:
Toyota Camry/Corolla/RAV4/ Ipsum / Previa / Tarago4/Highlander
OE NO.:
11101-28012
Contact Supplier Request Quote Chat Now
Shenyang SWIFT Auto Parts Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
DALIAN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, Cylinder Block, Piston Cylinder DOHC,16V,VVTI
Car Make Toyota Camry/Corolla/RAV4/ Ipsum / Previa / Tarago4/Highlander
OE NO. 11101-28012
Place of Origin Liaoning, China
Brand Name POC
Model Number 2AZ, 2AZ
Warranty 12 Months
Product Description
2AZ-FE
The 2AZ-FE is a 2.4 L (2362 cc) version built in Japan (Kamigo Plant and by Toyota Industries Corporation), at TMMK in the USA and also built in China for select Scion xB models, obtains a total displacement of 2362 cc with 88.5 mm (3.5 in) bore and 96.0 mm (3.8 in) stroke, with a compression ratio of 9.6:1. Output is 160 hp (120 kW) at 5600 rpm;162 lb·ft (220 N·m) of torque at 4000 rpm.

Later versions of the 2AZ-FE engine were upgraded with 9.8:1 compression ratio, a slightly more aggressive intake cam profile, 6500 rpm red line, and piston oil squirters. These later versions are rated at 161 hp (120 kW) in the Scion tC, 177 hp (132 kW) in the Rav4, and 158 hp (118 kW) in the Camry, Corolla XRS, and Scion xB. However, these latter 2AZ-FE models were the first to be rated under the new SAE J1349 standard.[citation needed] The new standard usually produces more conservative numbers, though no definitive comparison is available since the two versions were never tested by the same standard.The Rav 4 uses a different timing chain cover than the Camry, they can however be interchanged.

A TRD supercharger was available for the Scion tC until Spring 2009.

There have been complaints of this engine "burning oil" in North America with the issue starting after 45k miles, though mostly after 60k-75k miles. This is nearly always the result of poor servicing on behalf of the owner. Toyota has even issued a TSB (Technical service bulletin) TSB #0094-11 in August 2011 but have refused to issue general recall. There are several class-action lawsuits underway regarding this widespread issue. In January 2015, Toyota North America caved in and issued extended warranty notification (ZE7) for this issue. However, Toyota still insists that burning 1 quart of oil every 1200 miles is "normal". This applies to Toyota North America vehicles only

Applications:

2002–2011 Toyota Camry
2009–2011 Toyota Matrix S (USA)/XR (Canada)/XRS
2009–2010 Pontiac Vibe
2009–2010 Toyota Corolla XRS (2011-2013 only in Mexico)
2002–2008 Toyota Camry Solara
2004–2007 Toyota RAV4
2001–2007 Toyota Highlander/Kluger/Harrier
Toyota Estima / Toyota Ipsum / Toyota Previa / Toyota Tarago
Toyota Alphard
Toyota Blade
Toyota Avensis
2005–2010 Scion tC
2008–2015 Scion xB
2007-2013 Toyota MarkX Zio
