Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > FOTON LOVOL OPEN TYPE GENERATOR SET LG50L 50KW

FOTON LOVOL OPEN TYPE GENERATOR SET LG50L 50KW

FOTON LOVOL OPEN TYPE GENERATOR SET LG50L 50KW thumbnail-1
FOTON LOVOL OPEN TYPE GENERATOR SET LG50L 50KW photo-1
US$ 3,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
LONGKAI, Longkai
Model Number:
LG18L-LG150L
Contact Supplier Request Quote Chat Now
Fuan Longkai Power Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FUZHOU
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name LONGKAI, Longkai
Model Number LG18L-LG150L
Output Type AC Three Phase
Speed 1500/1800
Frequency 50/60HZ
Rated Power 20KW to 1500KW
Rated Voltage 220/380V,230/400V,110/220V,240/416V, 254/440, 277/480V
Rated Current 36-1804A

FOTON LOVOL OPEN TYPE GENERATOR SET LG50L 50KW

MAIN SPECIFICATIONS OF GENERATOR SETS:

Lovol Diesel Generator Set
Model Prime Power Stanby Power Engine Alternator
KW/ KVA KW/ KVA Make Model Make Model
LG18L 18 23 20 25 Lovol 1003G LK Stamford LK184E
LG22L 22 28 24 30 Lovol 1003G LK Stamford LK184F
LG24L 25 31 28 34 Lovol 1003G LK Stamford LK184G
LG30L 30 38 33 41 Lovol 1004G LK Stamford LK184H
LG32L 32 40 35 44 Lovol 1004G LK Stamford LK184J
LG34L 34 43 37 47 Lovol 1004G LK Stamford LK224C
LG30L 30 38 33 41 Lovol 1003TG LK Stamford LK184H
LG32L 32 40 35 44 Lovol 1003TG LK Stamford LK184J
LG34L 34 43 37 47 Lovol 1003TG LK Stamford LK224C
LG40L 40 50 44 55 Lovol 1003TG LK Stamford LK224D
LG50L 48 60 53 66 Lovol 1004TG LK Stamford LK224E
LG58L 58 73 64 80 Lovol 1004TG LK Stamford LK224F
LG68L 68 85 75 94 Lovol 1006TG1A LK Stamford LK224G
LG80L 80 100 88 110 Lovol 1006TG2A LK Stamford LK274C
LG100L 100 125 110 138 Lovol 1006TAG LK Stamford LK274D
LG108L 108 135 119 149 Lovol 1006TAG LK Stamford LK274E
LG120L 120 150 132 165 Lovol 1106C-P6TAG2 LK Stamford LK274F
LG130L 130 163 143 179 Lovol 1106C-P6TAG3 LK Stamford LK274F
LG146L 146 183 161 201 Lovol 1106C-P6TAG4 LK Stamford LK274G

 The Generator sets are as per the specification :

A. FOTON LOVOL Generator sets
1- Brand new Lovol Water Cooled water cooled diesel engine
2- Brand new Original Stamford, LK Stamford, Leroy somer, Mecc Alte  AC Alternators 0.8PF, IP23, H insulation class
3- Radiator with engine driven fan mounted on skid.
4- Set mounted Deepsea & Comap & Smartgen auto start control panel
5- MCCB mounted
6- Anti-vibration mountings
7- 12/24V DC Electric start system with maintaince free starting batteries
8- Industrial silencers with flexible connects and elbow
9- Genset will be with a base fuel tank for 8 hours running, with fuel gauge integrated in the base frame of generating set
10- Test report of generator, Set of drawings and O&M manuals
11- Standard tools kit

LONGKAI  GENERATORS:

FOTON LOVOL OPEN TYPE GENERATOR SET LG50L 50KW

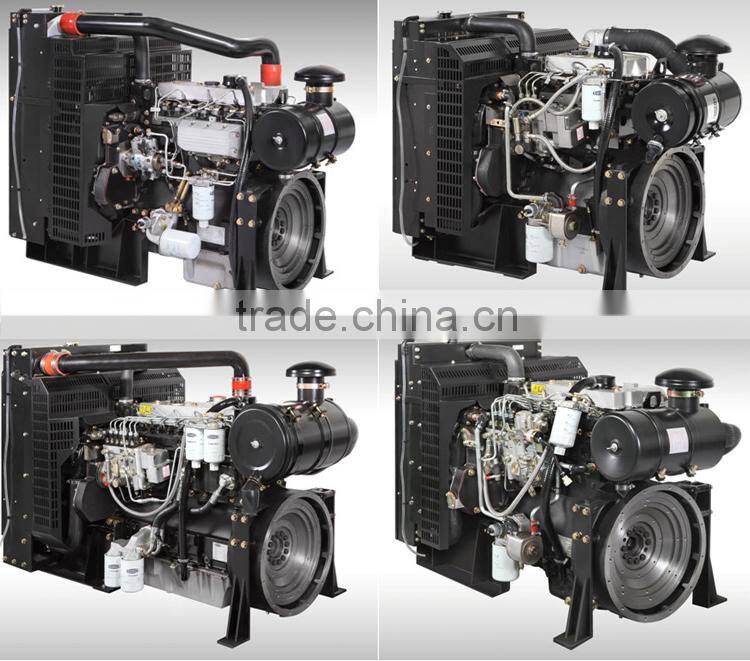

FOTON LOVOL Engine:(PREVIOUS CHINA PERKINS)

FOTON LOVOL OPEN TYPE GENERATOR SET LG50L 50KW

FOTON LOVOL OPEN TYPE GENERATOR SET LG50L 50KW



LOVOL Engine Technical Specifications:
LOVOL® 1000 Series
40 - 121kW @1500rpm
44 - 134kW @1800rpm



Technical Specifications

Item No. 1004G 1004TG 1006TG1A 1006TG2A 1006TAG
Speed - rpm 1500/1800
Cylinder number 4 4 6 6 6
Rated power - kW 40/44 65.7/75.6 84.3/97.6 92.3/108.4 121/134
Max. power - kW 44/48 72.3/83.2 92.7/107.3 102/119.2 134/147
Fuel consumption - g/kW.h ≤210 ≤205 ≤205 ≤205 ≤205
Net weight - kg 540 550 710 710 710
Dimension - mm 1253x706x946 1484x740x1107 1600x800x1064
Cylinder Bore x Stroke - mm 100x127 100x127 100x127 100x127 100x127
Displacement - L 3.99 3.99 5.99 5.99 5.99
Max. ambient temperature 50 ℃
Speed governing system type Mechanical Electronic - GAC
Speed governing rate ≤5% ≤5% ≤5% ≤5% ≤1%
Configuration in-line, direct injection, water cooled
Rotation of crankshaft Counter-clockwise - viewed from flywheel side
Aspiration Natural Turbocharged Turbo & A-A intercooled



Note: Turbo & A-A intercooled = Turbocharged & air to air intercooled

LOVOL® 1100 Series
130 - 158.4kW @1500rpm
143 - 174kW @1800rpm



Item No. 1106C -P6TAG2 1106C -P6TAG3 1106C -P6TAG4
Speed - rpm 1500/1800 1500/1800 1500/1800
Cylinder number 6 6 6
Rated power - kW 130/143 141/155.1 158.4/174
Max. power - kW 143/157.3 155.1/170.6 174/191.7
Net weight - kg 780 800 800
Dimension - mm 1667x800x1097 1803x911x1234 1803x911x1234
Cylinder bore x Stroke - mm 100x127
Displacement - L 5.98 5.98 5.98
Max. ambient temperature 55 ℃
Speed governing system type Electronic - GAC Electronic - GAC Electronic - GAC
Speed governing rate ≤1% ≤1% ≤1%
Configuration in-line, direct injection, water cooling
Rotation of crankshaft Counter-clockwise - viewed from flywheel side
Aspiration Turbocharged & air to air intercooled





Standard Configuration

  • 12V electric system (24V optional)

  • Cooling fan

  • SAE 3 flywheel housing

  • Cold start aid device

  • 10" & 11.5" flywheel

  • Front support for the engine

  • Fuel filter, air filter and oil filter

  • 12V start motor (24V optional), alternator, and solenoid valve

  • Qualification certificate, handbook and service manual

  • Radiator - fan guard and front guard included

  • Oil pressure and water temperature alarm switch & sensor unit (2 in 1) according to VDO parameter curve



FOTON LOVOL Open Type Generator:

FOTON LOVOL OPEN TYPE GENERATOR SET LG50L 50KW

 Silent Type Generator :

JAPAN DENYO TYPE DESIGN-1

FOTON LOVOL OPEN TYPE GENERATOR SET LG50L 50KW

EUROPEAN CURVE TYPE DESIGN-2

FOTON LOVOL OPEN TYPE GENERATOR SET LG50L 50KW

MODERN FACTORY AND EQUIPMENTS:

FOTON LOVOL OPEN TYPE GENERATOR SET LG50L 50KW

LONGKAI    ALTERNATORS:

FOTON LOVOL OPEN TYPE GENERATOR SET LG50L 50KWLONGKAI    ATS:

FOTON LOVOL OPEN TYPE GENERATOR SET LG50L 50KW

LONGKAI    TRAILERS :

FOTON LOVOL OPEN TYPE GENERATOR SET LG50L 50KW

SYNCHRONIZING SYSTEM PROJECTS:  4* 1000KW

FOTON LOVOL OPEN TYPE GENERATOR SET LG50L 50KW

CERTIFICATIONS:

FOTON LOVOL OPEN TYPE GENERATOR SET LG50L 50KW

STRATEGIC  PARTNER  OF  WORLD-CLASS  SUPPLIERS:

FOTON LOVOL OPEN TYPE GENERATOR SET LG50L 50KW

EXHIBITION:

FOTON LOVOL OPEN TYPE GENERATOR SET LG50L 50KW

Company Information :

FUAN LONGKAI POWER CO.,LTD become one of the professional players of generating set manufacturer in China. The factory of LONGKAI, occupying a total space of 10,000 M2, is located in Fuan City, Fujian Province, China. Now LONGKAI supplies generating sets ranging 9KVA—3,300KVA open type, soundproof type, trailer type, containerized type diesel generator sets, ATS Panel , Synchronizing Penel ,Also we suply Alternators . At present, there are 4 Assembly Lines in LONGKAI to enable us to produce 1000 sets for Industrial Gensets , Alternators,  per month. In partnership with our dealer over 40 countries, we keep moving to expand our business all over the world.

Our products have a good performance in quality. There are mainly 2 reasons: One is we have very good relationship with Cummins, Doosan Daewoo, Deutz, Lovol,Isuzu, Weichai, Shanghai engines and that of Stamford, Leroy Somer, Marathon alternators,also our own made high quality stamford technology generators. The other is we pay special attention to our technology innovation and quality control. To ensure the quality of our products, CNC machines, pretreatment and powder coating facilities for steel frame and silent canopy have been put into use in our base. There are about 150 staffs in LONGKAI, among whom, there are about 10 professional technicians, still there are many skilled and experienced workers. We treat our staff as our most important resource, and continue to train and improve every staff, that is the reason why most of them have been working with LONGKAI since the very beginning of its establishment.

Standard Supply Scope:
LG Generator set included: Diesel Power Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame .

Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables

Documents included: manual book, product qualified card of engine, alternator, controller, generator set.

Optional supply scope:

1.ATS 2. Synchronization System 3. External daily fuel tank 4. Silent Canopy 5. Trailer 6. Fuel Pump 7. Fuel and Water Separator 8. Lub Oil Heater 9. Coolant Heater 10. Fuel Drain Pump

Our Service :

Befor Service : According to the clients’ requirement and actual situation, we will furnish the technology consultation and kinds of information.
After Service : Guarantee for one year or 1200 running hours (accord to whichever reach first) from installed date. During the guarantee period, we will provide the free easy-damaged spare-parts for problems caused by our quality of production or raw material, except the damageable spare parts of diesel engine caused by customer's incorrect man-made operation. After expiration, our company provides cost spare-parts maintenance for gensets .

WELCOME TO FUJIAN ,WEICOM TO LONGKAI POWER !
