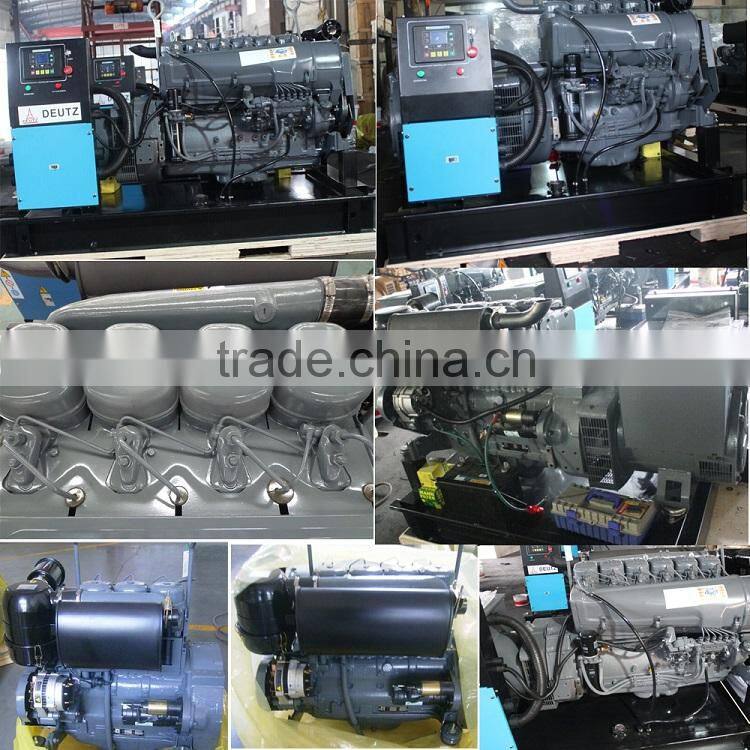

Deutz 25KVA diesel generator with ATS
MAIN SPECIFICATIONS OF GENERATOR SETS:
| Deutz Air Cooled Diesel Generator Set | ||||||||
| Model | Prime Power | Stanby Power | Engine | Alternator | ||||
| KW/ KVA | KW/ KVA | Make | Model | Make | Model | |||
| LG8DA | 8 | 10 | 14 | 11 | Deutz(Air cooled ) | F2L912D | LK Stamford | LK164B |
| LG10DA | 10 | 13 | 14 | 14 | Deutz(Air cooled ) | F2L912D | LK Stamford | LK164C |
| LG12DA | 12 | 15 | 14 | 17 | Deutz(Air cooled ) | F2L912D | LK Stamford | LK164D |
| LG15DA | 15 | 19 | 24 | 21 | Deutz(Air cooled ) | F3L912D | LK Stamford | LK184E |
| LG20DA | 20 | 25 | 24 | 28 | Deutz(Air cooled ) | F3L912D | LK Stamford | LK184F |
| LG24DA | 24 | 30 | 32 | 33 | Deutz(Air cooled ) | F4L912D | LK Stamford | LK184G |
| LG30DA | 30 | 38 | 34 | 41 | Deutz(Air cooled ) | F4L913D | LK Stamford | LK184H |
| LG40DA | 40 | 50 | 48 | 55 | Deutz(Air cooled ) | F6L912D | LK Stamford | LK224D |
| LG32DA | 32 | 40 | 41 | 44 | Deutz(Air cooled ) | F4L912TD | LK Stamford | LK224C |
| LG50DA | 50 | 63 | 61 | 69 | Deutz(Air cooled ) | F6L912TD | LK Stamford | LK224E |
| LG75DA | 80 | 100 | 88 | 110 | Deutz(Air cooled ) | BF6L913D | LK Stamford | LK274C |
| LG96DA | 100 | 125 | 114 | 138 | Deutz(Air cooled ) | BF6L913CD | LK Stamford | LK274D |
| LG100DA | 100 | 125 | 117 | 138 | Deutz(Air cooled ) | F8L413F | LK Stamford | LK274D |
| LG120DA | 120 | 150 | 147 | 165 | Deutz(Air cooled ) | BF8L513 | LK Stamford | LK274F |
| LG150DA | 150 | 188 | 176 | 206 | Deutz(Air cooled ) | BF8L513C | LK Stamford | LK274G |
The Generator sets are as per the specification :
| A. The Generator sets | ||||||
| 1- Brand new Deutz Air Cooled water cooled diesel engine | ||||||
| 2- Brand new Original Stamford, LK Stamford, Leroy somer, Mecc Alte AC Alternators 0.8PF, IP23, H insulation class | ||||||
| 3- Radiator with engine driven fan mounted on skid. | ||||||
| 4- Set mounted Deepsea & Comap & Smartgen auto start control panel | ||||||
| 5- MCCB mounted | ||||||
| 6- Anti-vibration mountings | ||||||
| 7- 12/24V DC Electric start system with maintaince free starting batteries | ||||||
| 8- Industrial silencers with flexible connects and elbow | ||||||
| 9- Genset will be with a base fuel tank for 8 hours running, with fuel gauge integrated in the base frame of generating set | ||||||
| 10- Test report of generator, Set of drawings and O&M manuals | ||||||
| 11- Standard tools kit |
LONGKAI GENERATORS:
DEUTZ AIR COOLED Open Type Generator:
Silent Type Generator :
JAPAN DENYO TYPE DESIGN-1
EUROPEAN CURVE TYPE DESIGN-2
MODERN FACTORY AND EQUIPMENTS:
LONGKAI ALTERNATORS:
LONGKAI ATS:
LONGKAI TRAILERS :
SYNCHRONIZING SYSTEM PROJECTS: 4* 1000KW
CERTIFICATIONS:
STRATEGIC PARTNER OF WORLD-CLASS SUPPLIERS:
EXHIBITION:
Company Information :
FUAN LONGKAI POWER CO.,LTD become one of the professional players of generating set manufacturer in China. The factory of LONGKAI, occupying a total space of 10,000 M2, is located in Fuan City, Fujian Province, China. Now LONGKAI supplies generating sets ranging 9KVA—3,300KVA open type, soundproof type, trailer type, containerized type diesel generator sets, ATS Panel , Synchronizing Penel ,Also we suply Alternators . At present, there are 4 Assembly Lines in LONGKAI to enable us to produce 1000 sets for Industrial Gensets , Alternators, per month. In partnership with our dealer over 40 countries, we keep moving to expand our business all over the world.
Our products have a good performance in quality. There are mainly 2 reasons: One is we have very good relationship with Cummins, Doosan Daewoo, Deutz, Lovol,Isuzu, Weichai, Shanghai engines and that of Stamford, Leroy Somer, Marathon alternators,also our own made high quality stamford technology generators. The other is we pay special attention to our technology innovation and quality control. To ensure the quality of our products, CNC machines, pretreatment and powder coating facilities for steel frame and silent canopy have been put into use in our base. There are about 150 staffs in LONGKAI, among whom, there are about 10 professional technicians, still there are many skilled and experienced workers. We treat our staff as our most important resource, and continue to train and improve every staff, that is the reason why most of them have been working with LONGKAI since the very beginning of its establishment.
Standard Supply Scope:
LG Generator set included: Diesel Power Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame .
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card of engine, alternator, controller, generator set.
Optional supply scope:
1.ATS 2. Synchronization System 3. External daily fuel tank 4. Silent Canopy 5. Trailer 6. Fuel Pump 7. Fuel and Water Separator 8. Lub Oil Heater 9. Coolant Heater 10. Fuel Drain Pump
Our Service :
Befor Service : According to the clients’ requirement and actual situation, we will furnish the technology consultation and kinds of information.
After Service : Guarantee for one year or 1200 running hours (accord to whichever reach first) from installed date. During the guarantee period, we will provide the free easy-damaged spare-parts for problems caused by our quality of production or raw material, except the damageable spare parts of diesel engine caused by customer's incorrect man-made operation. After expiration, our company provides cost spare-parts maintenance for gensets .
