Help CenterPhotoelectric Control
Related Products
Specifications
Time Delay 30~120 secondsScrew Thread & Zinc Alloy Nut
Additional Swivel Available
Neoprene Gasket

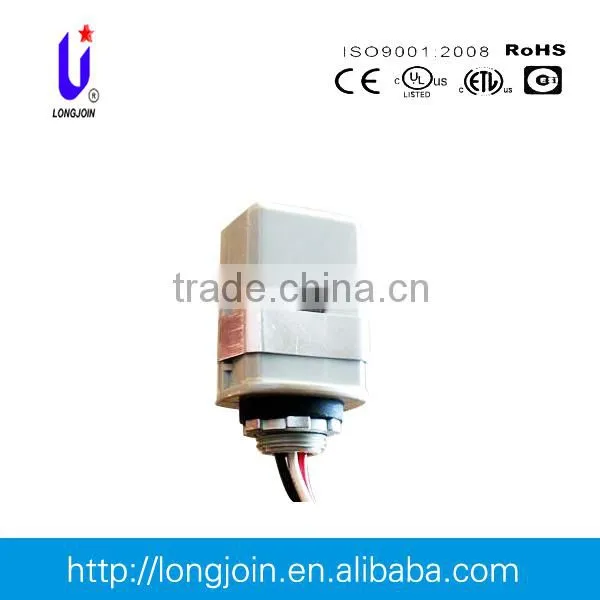

The photoelectric switch JL-118 series is applicable to control the street lighting, passage lighting and doorway lighting automatically in accordance with the ambient lighting level.
This product is designed on the basis of electrical heating structure that provides time delay over 30 seconds to avoid redundant switching against spotlight or lightning during the night time. A temperature compensator system provides consistent performance regardless of the ambient temperature.
JL-118 series is convenient direction adjustment after installation once an additional swivel is applied.
Model |
JL-118A |
JL-118B |
Rated Voltage |
100-120VAC, 50/60Hz |
200-240VAC, 50/60Hz |
Rated Loading |
1800W Tungsten 1100VA Ballast |
|
Power Consumption |
1.5VA |
|
On/Off Levels |
10~20Lx On (Dusk) 30~60Lx Off (Dawn) |
|
Ambient Temperature |
-40°C ~ +70°C |
|
Related Humidity |
95% |
|
Body Meas. |
41(wide) x 32(depth) x 72(height)mm |
|
Swivel Meas. |
65(L) x 35(Dia. Max.)mm; 180o |
|
Lead Length |
150mm or Customer request |
|
Approx. Weight |
55g (Body); 20g (Swivel) |
|
It is normal for the SWITCH to take several minutes to turn off when first installed.
To test “turn on” during daytime, cover its eye with sliding the metal strip mounted.
Do not cover with finger because light traveling through fingers may be great enough to keep the switch open.
Test will take approximately 2 minutes.
