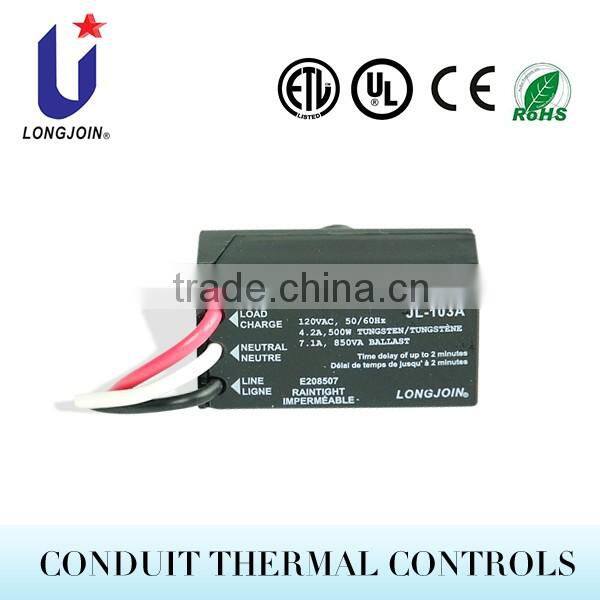

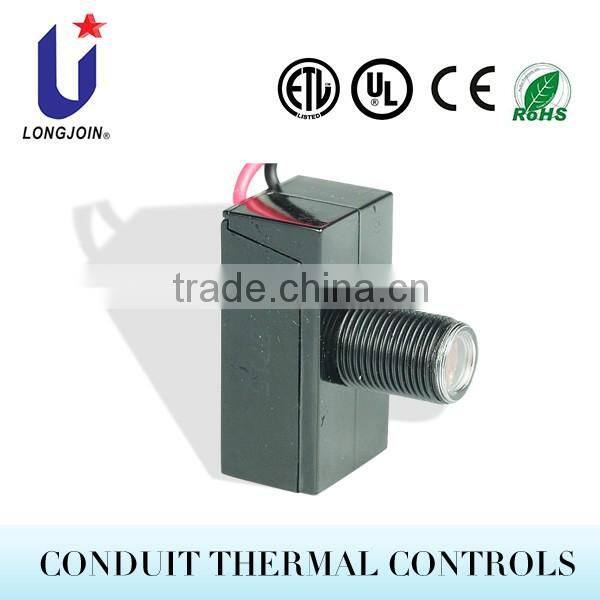

Help CenterEnergy-saving Sensor Switch Control Photocell
Related Products
-
Best Price Streetlight Switch PhotocellUS$ 2.1 - 2.1MOQ: 1000 Pieces -
Best Price Intelligent Photo Control Switch PhotocellUS$ 2.1 - 2.1MOQ: 1000 Pieces
-
Best Price Outdoor Photocell Light Sensor PhotocellUS$ 2.1 - 2.1MOQ: 1000 Perches
-
Best Price Sensor Switch Control PhotocellUS$ 2.1 - 2.1MOQ: 1000 Pieces
-
Automatic Daylight Sensor Switch Photocell China ManufacturerUS$ 2.1 - 2.1MOQ: 1000 Pieces
| 1.Applicable to control passage lighting and doorway lighting automatically in accordance with the ambient lighting level. |
| 2.UL&CUL listed by UL Inc and is comply with the standard for non-industrial Photoelectric Switches for lighting control UL773A. |
| 3.Raintight, applicable for outdoor purpose. |
| Item No. | JL-103A, 103B, 103C, 103D |
| Rated Voltage | 120(A), 240(B), 208(C), 277(D)VAC |
| Applicable Voltage | 110-130(A), 208-277(B), 180-220(C), 250-305(D)VAC |
| Rated Frequency | 50/60HZ |
| Rated Loadings | 500wTungsten, 850VABallast |
| On-Off Levels | 10-20Lx On(Dusk); 30-60Lx Off(Dawn) |
| Ambient Temp | -40℃~ +70℃ |
| Related Humidity | 96% |
| Power Consumption | 1.5VA Max. |
| Leads Length | 180mm or Customer request (AWG#18 or AWG16) |
| Electrical Life | 6500 cycles |
| -SPST-NO |
| -Thermal switch |
| -Polycarbonate enclosure & eye |
| -1/2”Cds photocell |
| -3/8”threaded nipple, with rubber gasket & plastic Lock-nut |
| -High grade leads available |
Certification:Energy-saving Sensor Switch Control Photocell
Energy-saving Sensor Switch Control Photocell
| 1. Your inquiry related to our products or prices will be replied in 24hrs. |
| 2. Well-trained and experienced staffs to answer all your enquires in fluent English. |
| 3. OEM&ODM, any your customized photo controls we can help you to design and put into product. |
| 4.Our market researches help you to analyse your market before offering you the competitive price and suitable quality. |
| 5. We confirm with you about all details before we proceed the production, Professional QC will keep the whole production in eyes; Quality inspection and loading are performed in every order. |
| 6. We keep track of your selling. We improve our products and service by listening to the comments from you. We are trying to be your life-partner. |
Shanghai Long-Join Electronics Co., Ltd., a private company, is specialized in designing, developing and manufacturing Energy-saving Sensor Switch Control Photocell for outdoor and area lightings.
Investment: The total capital of Long-Join is RMB5,000,000 and the total investment is about RMB10,000,000 (inclusive of fixed assets of about RMB7,000,000). The factory building in Shanghai covers an area of over 7,000 square meters.
Employees: Long-Join has about 150 employees, among whom there are 5 senior engineers.
Product Information: The major product line of Long-join is photo controls used for area lightings, which is an industrial or consumer control unit that automatically controls lamp by tracing the level of ambient brightness. Relying on developing its own intellectual property (national patent of utility model), Long-Join products are designed according to the international standards, so they represent better ratio of performance to cost than most competitors. Up to now, Long-Join basic products have been granted the certification of UL and CUL and exported to the North American market steadily.
Sales Information: Long-Join is offering over 3,000,000 units annually.
Market Information: Long-Join products are made for both industrial use and consumer purpose. The wide range of application decides a promising market. Since our basic products are designed in accordance with the American popular mounting mode (ANSI C136.10-1996), they are mainly targeted at the North American market. Long-Join products have been steadily supplied to some famous American lamp manufacturers. Long-join also makes products for some American outdoor lighting control manufacturers and it indirectly ranks among the suppliers for Wal-mart etc. The typical product series, bimetallic type photo controls have had nearly 50% shares of American market. Long-Join is actively expanding the markets in Mexico and Brazil where the similar standards are adopted. It derived products and series products in application give attention to the versatility of mounting mode and are expected to enter other regional markets.
Welcome to Long-Join!
|
Q1: What is the function of the photo control? A1: Photo control is one kind of switch that turn on and off the lighting fixture automatically according to the lighting level’s change. |
|
Q2: What is the Warranty for the Photo control? A2: For the photo control, we have half a year warranty. If any quality problems on our side occurred in this period ,we will take on the shipping cost and replacement. |
|
Q3: What is the Specification of wires? A3:Main wire of receptacle: 14 AWG signal wire:18 AWG |
|
Q4: What is the methods of installation of this type photo control? A4 ANSI C136.41 compliant dimming receptacle is available with two or four dimming contacts to support either 0-10 VDC dimming methods or Digital Addressable Lighting Interface. |
|
Q5:What is the type of the photo control? A5: According to different internal control modes, the photocontrol products can be divided into three types which are thermal type, electromagnetic type and electronic type. |
|
Q6: What is the international standard of your photo control? A6:Our photo control receptacle could be divided into British and American types and be manufactured as per BS5972 or UL773/ANSI C136.10 standard. |
|
Q7: Which kinds of the lamps can the photo control be used for? A7: It can be worked smoothly at anytime, any place and any season, and suitable for street lamp, garden lamp, corridor lamp, door lamp., etc . |
