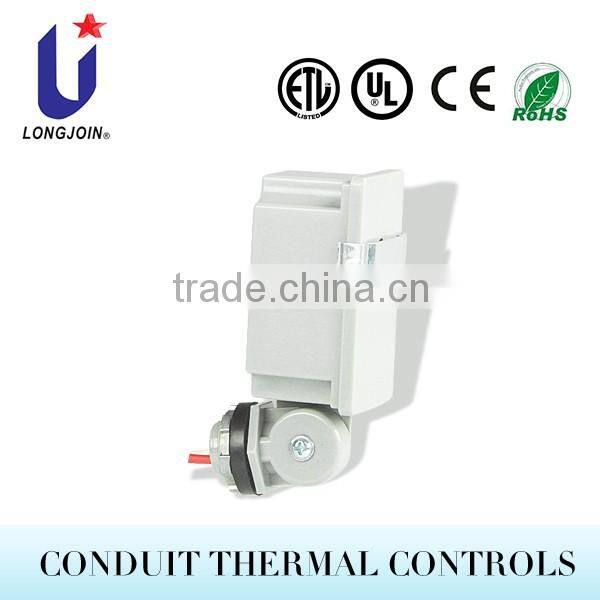

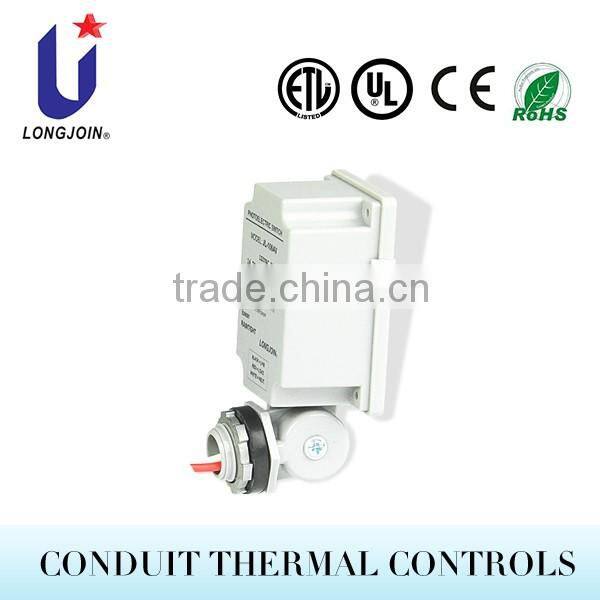

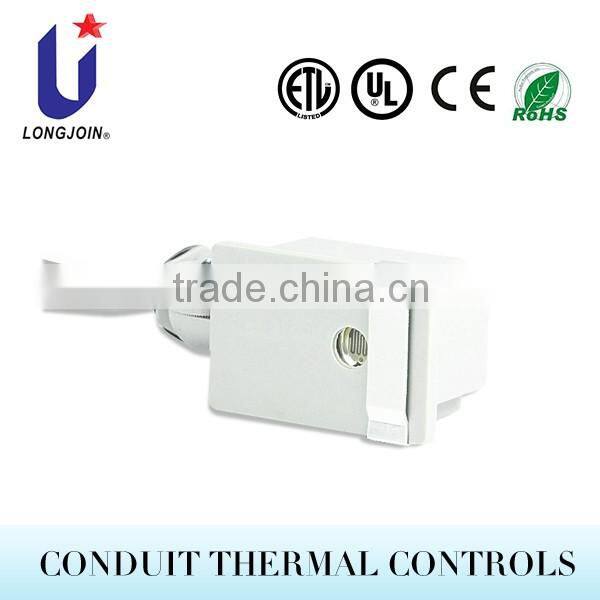

Newest Low Price Thermal Conduit Wire-in Photocells With Swivel For Streetlight

Newest Low Price Thermal Conduit Wire-in Photocells With Swivel For Streetlight photo-1
US$ 2.2 - 2.2 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
longjoin
Model Number:
JL-106
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai/qingdao
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shanghai, China
Brand Name longjoin
Model Number JL-106

Newest Low Price Thermal Conduit Wire-in Photocells With Swivel For Streetlight



Product Description
Newest Low Price Wire-in Photocells With Swivel:
Newest Low Price Thermal Conduit Wire-in Photocells With Swivel For Streetlight
Product features:
1. Time-delay of up to 30-60s, eliminate turning-off by headlights at night.
2. Die-cast enclosure for vandalism protection.
3. Waterproof,applicable for outdoor and underwater purpose.
4. Light shielding slide for field performance adjustment.
5. Optional swivel with the sensor/switch body for convenient direction adjustment after installation.
 Newest Low Price Thermal Conduit Wire-in Photocells With Swivel For StreetlightNewest Low Price Thermal Conduit Wire-in Photocells With Swivel For StreetlightNewest Low Price Thermal Conduit Wire-in Photocells With Swivel For Streetlight
Newest Low Price Wire-in Photocells With Swivel
Specifications:
Item No.JL-106A, 106B
Rated Voltage120VAC (A), 220VAC (B)
Applicable Voltage110-130VAC (A),200-240VAC (B)
Rated Frequency50/60HZ
Rated Loadings2000WTungsten (A) , 2000VA Ballast (B)
On-Off Levels10-20Lx On(Dusk); 30-60Lx Off(Dawn)
Ambient Temp-40~ +70
Related Humidity96%
Power Consumption1.5VA MAX.
Leads Length150mm or Customer request
Electrical Life6500 cycles
 Schematic diagram:
                               JL-106
More details (Newest Low Price Wire-in Photocells With Swivel)
-SPST-NO
-Thermal switch
-Polycarbonate enclosure & eye
-1/2”Cds photocell
-1/2”threaded conduit, with rubber gasket & Zinc alloy Lock-nut
-1/2”Cds photocell
-AWG#14leads





 Certification: Newest Low Price Wire-in Photocells With Swivel

Newest Low Price Thermal Conduit Wire-in Photocells With Swivel For Streetlight

Packaging & Shipping

 Newest Low Price Thermal Conduit Wire-in Photocells With Swivel For Streetlight



Newest Low Price Thermal Conduit Wire-in Photocells With Swivel For Streetlight





Our Services

Newest Low Price Wire-in Photocells With Swivel

1. Your inquiry related to our products or prices will be replied in 24hrs.
2. Well-trained and experienced staffs to answer all your enquires in fluent English.
3. OEM&ODM, any your customized photo controls we can help you to design and put into product.
4.Our market researches help you to analyse your market before offering you the competitive price and suitable quality.
5. We confirm with you about all details before we proceed the production, Professional QC will keep the whole production in eyes; Quality inspection and loading are performed in every order.
6. We keep track of your selling. We improve our products and service by listening to the comments from you. We are trying to be your life-partner.
Company Information

 Newest Low Price Thermal Conduit Wire-in Photocells With Swivel For Streetlight



Shanghai Long-Join Electronics Co., Ltd., a private company, is specialized in designing, developing and manufacturing Newest Low Price Wire-in Photocells With Swivel for outdoor and area lightings.

Investment: The total capital of Long-Join is RMB5,000,000 and the total investment is about RMB10,000,000 (inclusive of fixed assets of about RMB7,000,000). The factory building in Shanghai covers an area of over 7,000 square meters.

Employees: Long-Join has about 150 employees, among whom there are 5 senior engineers.

Product Information: The major product line of Long-join is photo controls used for area lightings, which is an industrial or consumer control unit that automatically controls lamp by tracing the level of ambient brightness. Relying on developing its own intellectual property (national patent of utility model), Long-Join products are designed according to the international standards, so they represent better ratio of performance to cost than most competitors. Up to now, Long-Join basic products have been granted the certification of UL and CUL and exported to the North American market steadily.

Sales Information: Long-Join is offering over 3,000,000 units annually.

Market Information: Long-Join products are made for both industrial use and consumer purpose. The wide range of application decides a promising market. Since our basic products are designed in accordance with the American popular mounting mode (ANSI C136.10-1996), they are mainly targeted at the North American market. Long-Join products have been steadily supplied to some famous American lamp manufacturers. Long-join also makes products for some American outdoor lighting control manufacturers and it indirectly ranks among the suppliers for Wal-mart etc. The typical product series, bimetallic type photo controls have had nearly 50% shares of American market. Long-Join is actively expanding the markets in Mexico and Brazil where the similar standards are adopted. It derived products and series products in application give attention to the versatility of mounting mode and are expected to enter other regional markets.

Welcome to Long-Join!





FAQ



Q1: What is the function of the photo control?

A1: Photo control is one kind of switch that turn on and off the lighting fixture automatically according to the lighting level’s change.

 Q2: What is the Warranty for the Photo control?

A2: For the photo control, we have half a year warranty. If any quality problems on our side occurred  in this period ,we will take on the shipping cost and replacement.

Q3: What is the Specification of wires?

A3:Main wire of receptacle: 14 AWG  signal wire:18 AWG

 Q4: What is the methods of installation of this type photo control?

A4 ANSI C136.41 compliant dimming receptacle is available with two or four dimming contacts to support either 0-10 VDC dimming methods or Digital Addressable Lighting Interface.

Q5:What is the type of the photo control?

A5: According to different internal control modes, the photocontrol products can be divided into three types which are thermal type, electromagnetic type and electronic type.

Q6: What is the international standard of your photo control?

A6:Our photo control receptacle could be divided into British and American types and be manufactured as per BS5972 or UL773/ANSI C136.10 standard.

Q7: Which kinds of the lamps can the photo control be used for?

A7: It can be worked smoothly at anytime, any place and any season, and suitable for street lamp, garden lamp, corridor lamp, door lamp., etc .
