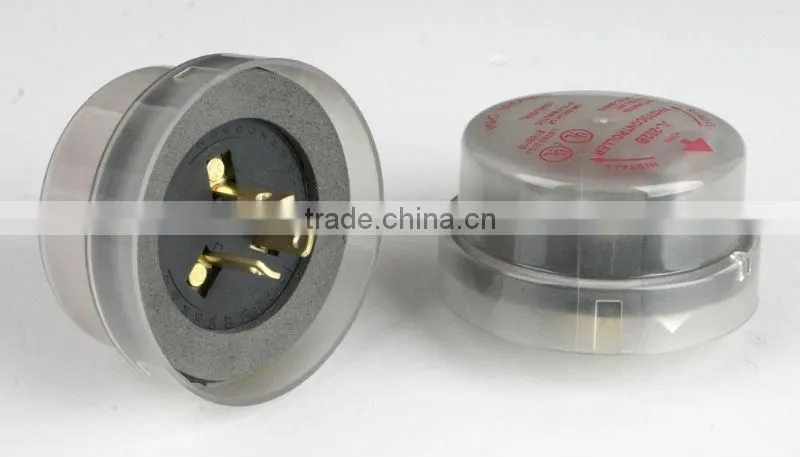

Help CenterJL-202 Electric Switch
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
longjoin
Model Number:
JL-202
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
JL-208 Shorting CapNegotiableMOQ: 1000 Pieces -
TWIST-LOCK PHOTOCONTROL RECEPTACLENegotiableMOQ: 1000 Pieces
-
Photo Control SwitchNegotiableMOQ: 1000 Pieces
-
Twist-Lock Thermal Control Photo Control (photocell)NegotiableMOQ: 1000 Pieces
-
Electronic Control Photoelectric Switch (photocell)NegotiableMOQ: 1000 Pieces
Place of Origin
Shanghai, China
Brand Name
longjoin
Model Number
JL-202
| Electric switch |
| 1, Thermal switch assembled with bimetal and ceramic elements, enclosure and lens made from polycarbonate, base made from PBT |
| 2, Thermal switch with ambient temperature compensator to illuminate temperature affects |
| 3, Intended to control outdoor lighting fixtures with natural lighting level. Time delayed to eliminate unexpected turning-off by head lights and lightning during night time |
| 4, CdS photocell, 1" deluxe photocell available |
| 5, Various enclosure can be chosen, terminals meeting ANSI C136.10 and UL773 for easier maintenance |
| 6, Rated voltage: 110-120V AC / 220-240V AC / 208V AC / 277V AC or as per customers' requests . Rated freq.: 50/60Hz Rated loading: 1,800W (tungsten) / 1,000VA (ballasted) Power consumption: <1.5VA On-off level: 10 - 20lux on (dusk), 30 - 60lux off (dawn) or customer's request Ambient temp.: -40 ~ +70° C . Related humidity: 96% |
| 7, UL and CUL listed (JL-202) |
| 8, Optional built-in MOV: 110J/3,500A (code: 12), 235J/5,000A (code: 15) or 460J/7,500A |
