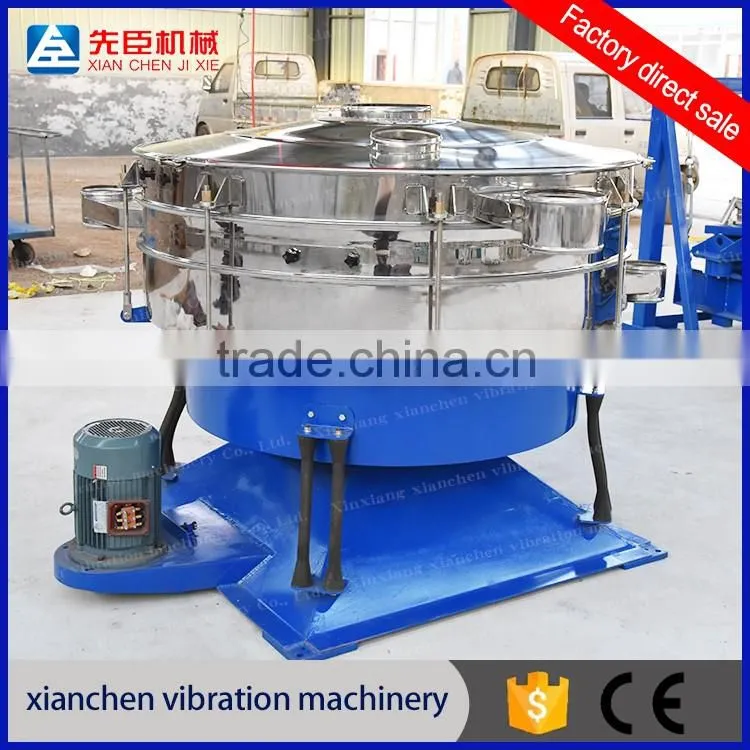

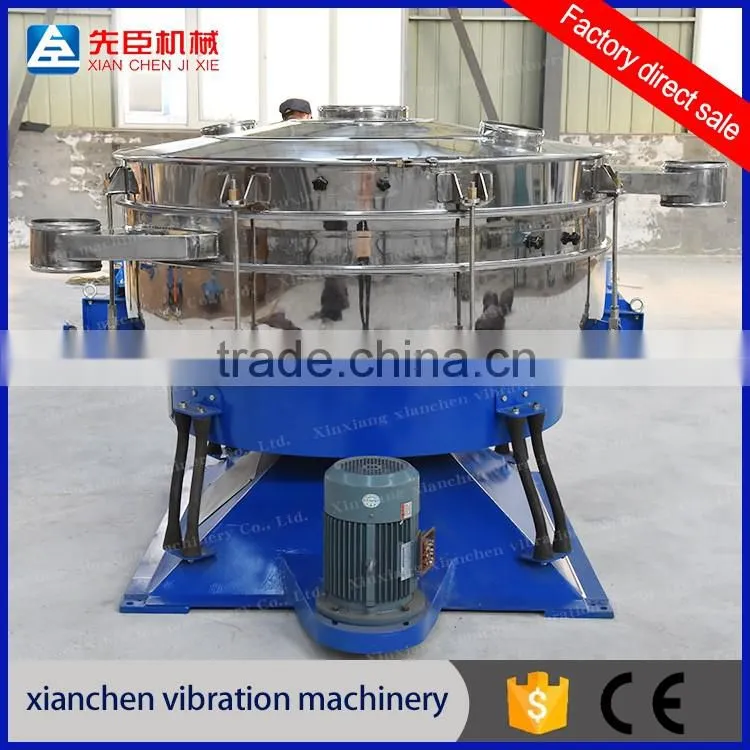

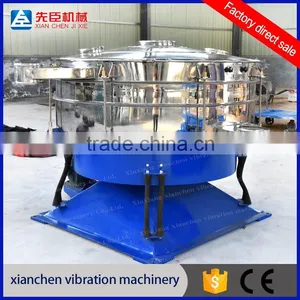

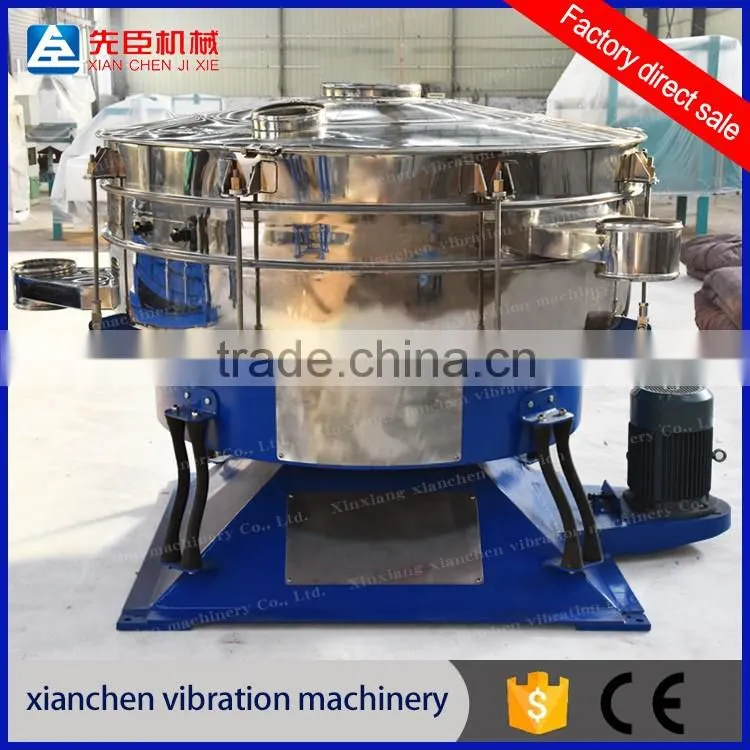

swing screen actual photos
Overview of swing sieve
XCYS series tumbler screen machine is a kind of inertial equipment with mature technology and classical application.Its new design Philosophy and unique structure making it the closest manual screen machine. The Tumbler screen have bright application prospects for its perfect screening effect. From the aspect of its trajectory, it is a non-linear inertial vibrating screen.
The Tumbler screen is particularly used to classify small materiels and fine powder according to its unique structure and working principle. It is not only apply to dry sieving, but also wet sieving.It is widely used in mine, building material, metallurgy, foundry, abrasive material, chemical, light industry, medical, food and other industry.
Swinging sieve structure principle
Because of the motion trajectory of the griddle box, the swing screen is also called compound circle screen. The vibration force produced by the drive system is a kind of inertia force which is circling the dead axle and changing regularly.
Intrinsically, it is a kind of centrifugal force given by the eccentricity mass circling around the dead axle. The sieve is ususlly installed horizontally or with tiny angle(0°-5°). The principle is:when you start the machine,the vibrating part---the screen box takes circling motion under the influence of the vibrating force.The screen box drive the sieve to take circling motion periodicity,so the material on screen surface take bounce motion,meanwhile,the material less than the aperture drop to the next deck,and the oversize are discharged by the outlet. Finally, the screening work is completed. From the aspect of its structure and working principle, the exciter can circumgyrate in two ways according to the motion of the material, uniformily or contrarily. As a result, we'd better make a choice between throughput and efficiency according to our practical demand.
. Swing vibrating screen Swing vibrating screen Swing vibrating screen Swing vibrating screen Swing vibrating

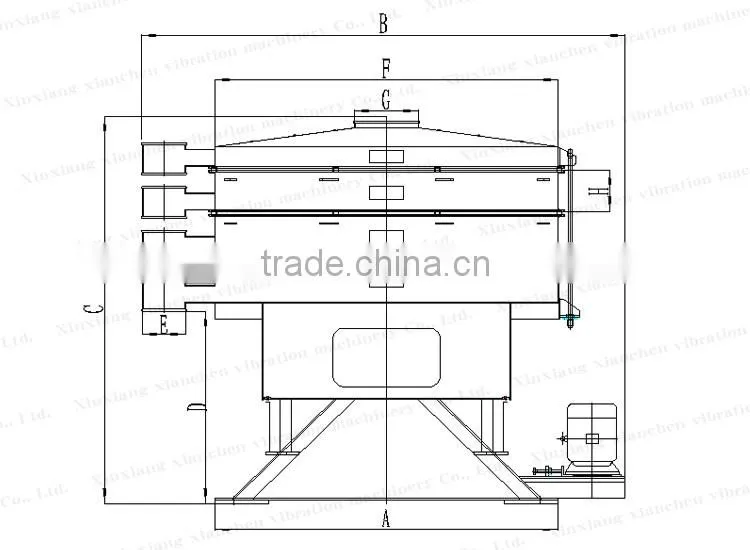

Dimensions ---swing sieve
| Model | Layer | Screen specifications | Screen box | motor | A | B | C | D | E | F | G | H | height | |
| each floor | Travel | power | Speed | |||||||||||
| (mm) | (kw) | (rpm) | (mm) | (kg) | ||||||||||
| XC1000 | 1S | 730 | 20-80 | 1.5 | 960 | 900 | 1550 | 1270 | 650 | 150 | 1000 | 200 | 140 | 490 |
| 2S | 1410 | 535 | ||||||||||||
| 3S | 1550 | 580 | ||||||||||||
| XC1200 | 1S | 1060 | 20-80 | 2.2 | 1000 | 1800 | 1320 | 700 | 150 | 1200 | 200 | 140 | 700 | |
| 2S | 1460 | 770 | ||||||||||||
| 3S | 1600 | 840 | ||||||||||||
| XC1600 | 1S | 2000 | 30-90 | 3 | 1450 | 2250 | 1500 | 830 | 200 | 1600 | 300 | 160 | 980 | |
| 2S | 1660 | 1060 | ||||||||||||
| 3S | 1820 | 1140 | ||||||||||||
| XC2000 | 1S | 3000 | 40-90 | 4 | 1600 | 2700 | 1630 | 950 | 250 | 2000 | 300 | 160 | 950 | |
| 2S | 1790 | 1140 | ||||||||||||
| 3S | 1950 | 1230 | ||||||||||||
| XC2600 | 1S | 5150 | 40-100 | 5.5 | 1950 | 3300 | 1870 | 1080 | 250 | 2600 | 400 | 180 | 1900 | |
| 2S | 2050 | 2000 | ||||||||||||
- Internal/external screen frame - Silicone sealing, mesh glue and flexible
Ultrasonic mesh cleaning device connection.
- Various mesh cleaning systems - Surface quality from glass bead blasted
- Dust and gas tight to electropolished.
- Quick-action clamps - Mild and stainless steel modification
Swinging sieve characteristics
Up to 5 times the output per unit area; Accurate to 6 level separation, screening efficiency as high as 90%-99%; The use of silicone rubber ball, ultrasonic high effect clear net device system, the mesh not blocked. Closed dust removal, operation safety; The acceleration is 4.5 times lower than that of the vibrating screen, the life of the screening part is improved, and the maintenance is reduced; Noise less than 70 dB. Optimal equilibrium, low dynamic load of foundation. Swing vibrating screen Swing vibrating screen Swing vibrating screen Swing vibrating screen
Swing sieve cleaning net way
Bouncing ball cleaning: meet the food grade rubber, silica-gel sphere beat in the punching plate screen, hit the metal net, reduce clogging of the mesh. This system is simple and easy to use, easy to maintain, and is suitable for most granular materials.
Rotary brush cleaning: The rotary drum brush is driven by a reduction gear arranged on the base plate, rotating brush under the sieve net, cleaning materials, suitable for screening spherical, crystallization and brittle material.
Ultrasonic cleaning: high frequency ultrasound is transmitted to the screen net, both to clean the screen, and significantly improve the production ability. Applicable to the most sophisticated, high yield, difficult screening material. Swing vibrating screen Swing vibrating screen Swing vibrating screen Swing vibrating screen Swing vibrating screen Swing vibrating screen Swing vibrating screen Swing vibrating screen Swing vibrating screen
Simulated artificial high efficiency screening
