Xianchen Swing Vibrating Screen
XinXiang Xianchen screening machinery Co.,Ltd is specialized in producing vibrating machinery manufacturers, with well-equipped, strong technical force, detection means complete, high-quality after-sales sevice being perfect cnditions. Advanced product design, production precision, reliable performance, with international advanced level, best-selling country, in the same industry enjoys high reputation and well received by the user's trust. The main products are rotary vibration screen, vertical screen, powder sieve, linear vibrating screen, vibrating sieve mining, cement, sieve, vibration to the hopper, vibrating feeder, conveyor motor vibration level, electrical vibration vertical lifting machine, warehouse wall vibration, vibration motors and screw conveyor and so on. swinging screen swinging screen swinging screen swinging screen swinging screen swinging screen swinging screen swinging screen swinging screen swinging screen swinging screen swinging screen

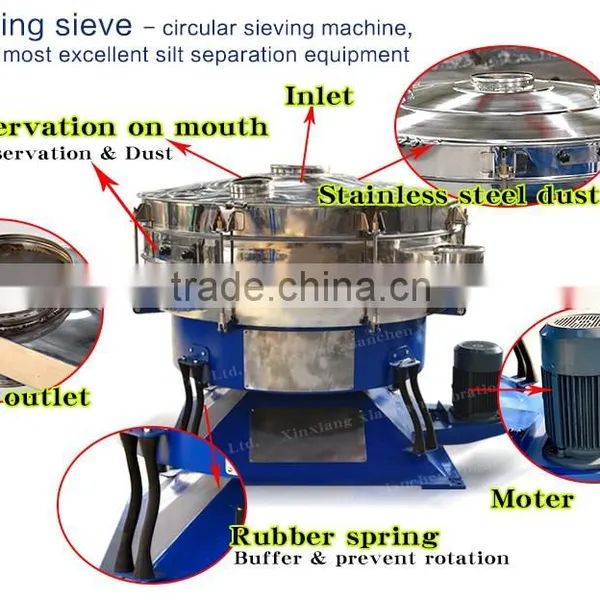

swing screen actual photos
Overview of swing sieve
Xianchen mechanical swing sieve is designed to meet the high output and high precision screening of manufacturers and special design of an efficient screening machine. The most simple screening is a binocular fixation and both hands screening. Swinging sieving machine is the simulation of this movement. At present, the most effective simulated artificial sieving movement effective principle (screening accuracy, efficiency, Screen life are 5-10 times than conventional round sieve). It meets all the fine and ultrafine particulate materials, especially for hard to process materials. Swing vibrating screen Swing vibrating screen Swing vibrating screen Swing vibrating screen Swing vibrating screen Swing vibrating screen
Swinging sieve structure principle
The basic rotary motion is similar to that of the artificial sieve, and the eccentricity ratio is adjustable from 25 to 40mm, and the low speed V type belt drive can be adjusted from 120 to 360rpm.
The residence time of each product can be adjusted by the radial direction and the tangential angle of the swinging screen.
Therefore, established the level and throwing three-dimensional tumbling motion. from the center to the outer edge in the sieve surface is uniformly dispersed, to in a spiral motion to the axial propagation. Thus fine particles complete the whole screening process.
Horizontal and vertical acceleration with the movement of the material increased, and close to the aperture size of particles subsequently successfully separated ;Larger particles were transported to the exit, the outlet is controlled by an adjustable guide device, which is another factor that controls the retention time of the material. Swing vibrating screen Swing vibrating screen Swing vibrating screen Swing vibrating screen Swing vibrating screen
The process is repeated among each layer of screen. Swing vibrating screen Swing vibrating screen Swing vibrating screen Swing vibrating screen Swing vibrating screen
Dimensions
| Model | Layer | Screen specifications | Screen box | motor | A | B | C | D | E | F | G | H | height | |
| each floor | Travel | power | Speed | |||||||||||
| (mm) | (kw) | (rpm) | (mm) | (kg) | ||||||||||
| XC1000 | 1S | 730 | 20-80 | 1.5 | 960 | 900 | 1550 | 1270 | 650 | 150 | 1000 | 200 | 140 | 490 |
| 2S | 1410 | 535 | ||||||||||||
| 3S | 1550 | 580 | ||||||||||||
| XC1200 | 1S | 1060 | 20-80 | 2.2 | 1000 | 1800 | 1320 | 700 | 150 | 1200 | 200 | 140 | 700 | |
| 2S | 1460 | 770 | ||||||||||||
| 3S | 1600 | 840 | ||||||||||||
| XC1600 | 1S | 2000 | 30-90 | 3 | 1450 | 2250 | 1500 | 830 | 200 | 1600 | 300 | 160 | 980 | |
| 2S | 1660 | 1060 | ||||||||||||
| 3S | 1820 | 1140 | ||||||||||||
| XC2000 | 1S | 3000 | 40-90 | 4 | 1600 | 2700 | 1630 | 950 | 250 | 2000 | 300 | 160 | 950 | |
| 2S | 1790 | 1140 | ||||||||||||
| 3S | 1950 | 1230 | ||||||||||||
| XC2600 | 1S | 5150 | 40-100 | 5.5 | 1950 | 3300 | 1870 | 1080 | 250 | 2600 | 400 | 180 | 1900 | |
| 2S | 2050 | 2000 | ||||||||||||
Swinging sieve characteristics
Up to 5 times the output per unit area; Accurate to 6 level separation, screening efficiency as high as 90%-99%; The use of silicone rubber ball, ultrasonic high effect clear net device system, the mesh not blocked. Closed dust removal, operation safety; The acceleration is 4.5 times lower than that of the vibrating screen, the life of the screening part is improved, and the maintenance is reduced; Noise less than 70 dB. Optimal equilibrium, low dynamic load of foundation. Swing vibrating screen Swing vibrating screen Swing vibrating screen Swing vibrating screen
swing sieve cleaning net way
Bouncing ball cleaning: meet the food grade rubber, silica-gel sphere beat in the punching plate screen, hit the metal net, reduce clogging of the mesh. This system is simple and easy to use, easy to maintain, and is suitable for most granular materials.
Rotary brush cleaning: The rotary drum brush is driven by a reduction gear arranged on the base plate, rotating brush under the sieve net, cleaning materials, suitable for screening spherical, crystallization and brittle material.
Ultrasonic cleaning: high frequency ultrasound is transmitted to the screen net, both to clean the screen, and significantly improve the production ability. Applicable to the most sophisticated, high yield, difficult screening material. Swing vibrating screen Swing vibrating screen Swing vibrating screen Swing vibrating screen Swing vibrating screen Swing vibrating screen Swing vibrating screen Swing vibrating screen Swing vibrating screen
Simulated artificial high efficiency screening
Application
FQA
1 sets is ok.
*What's the Payment?
L/C, T/T(30% as deposit, just pay remained 70% before shipping).
*How to pack it?
In normal, we packed it by wooden case.
And we accept your requirements.
*When will you shipping it after payment?
We will shipping it in 15-20 working days.
Waiting for your inquiry.
Xinxiang xianchen machine Ltd,Co
Welcome your inquiry!
