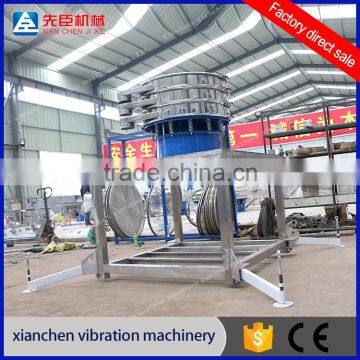

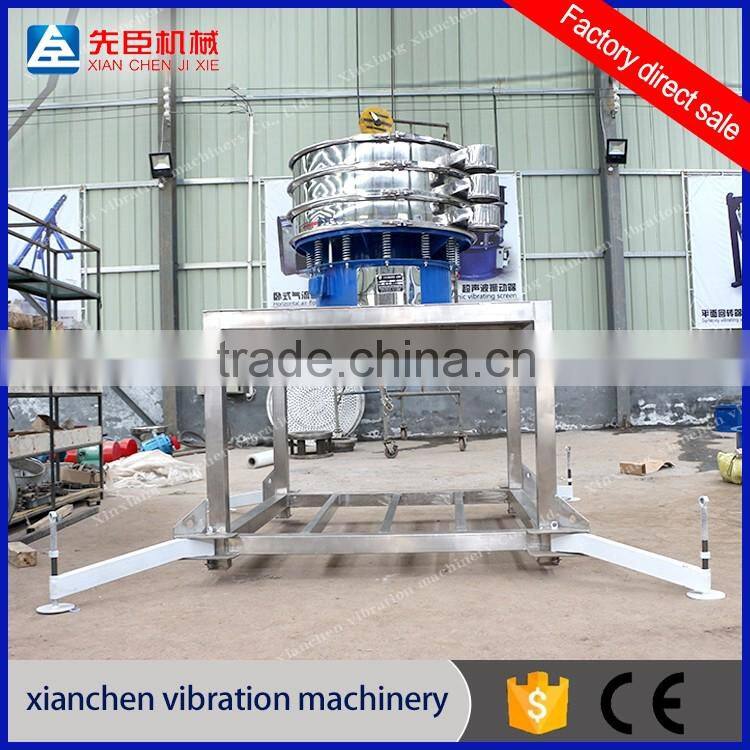

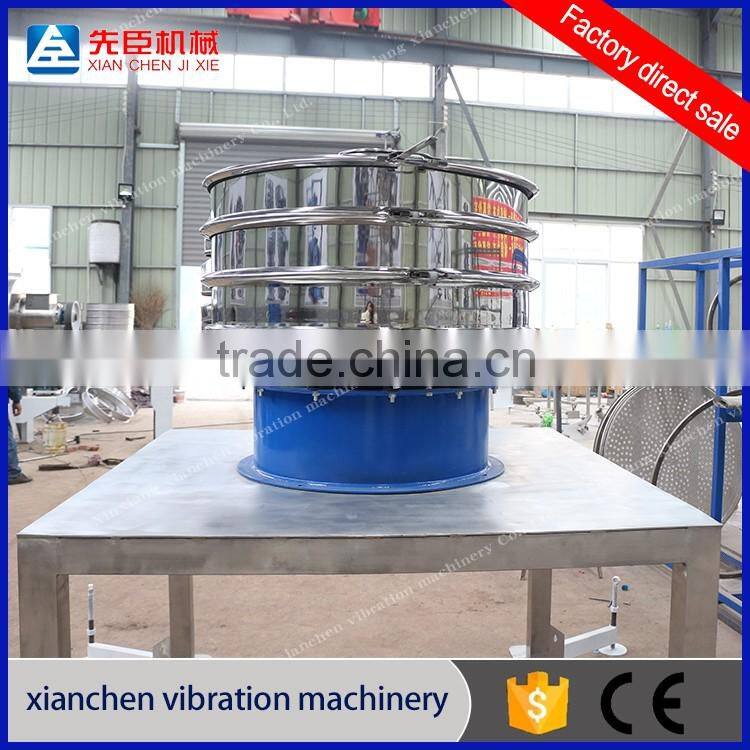

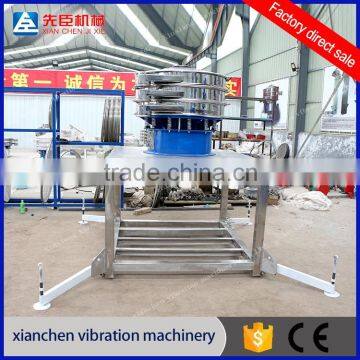

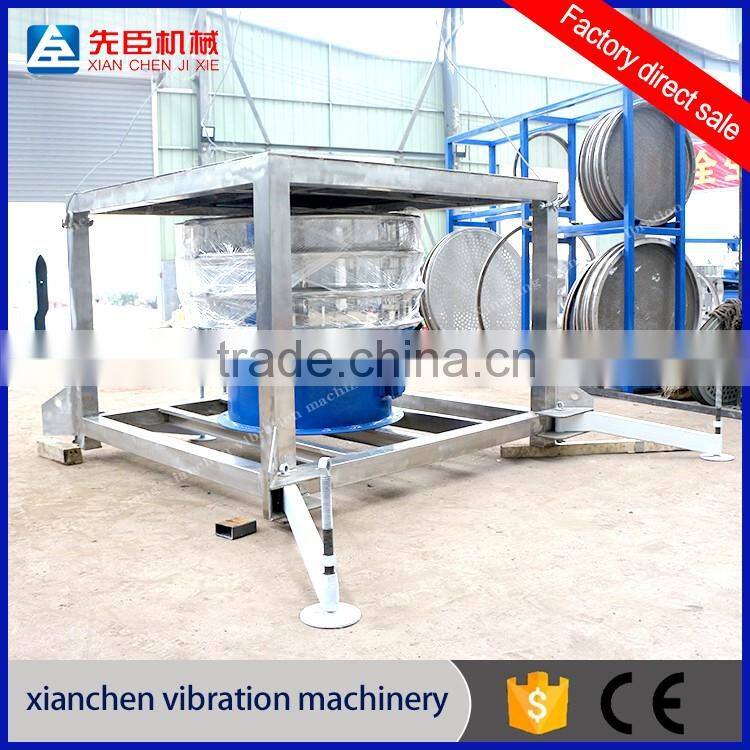

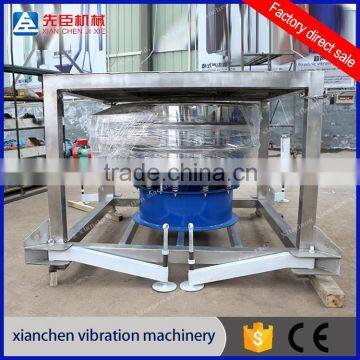

High screening efficiency vibrating screen machine for Pearl powder
High screening efficiency vibrating screen machine for Pearl powder
Rotary vibrating screen product description
Vibrating sieve use one set vertical vibration motor as the source of vibrating screen, equipped with hammer on the both sides of motor ,circumrotate to level, upright and incline movement, then pass these three movement to the surface of the screen .Adjust the phasic angle on the both sides of the top and bottom to change the movement orbits of the surface screen.
Rotary vibrating screen product Features
- Fully adjustable amplitudes of vibration.
- 25 µm to 25 mm aperture quick change mesh - frames.
- Automatic ejection of oversize materials.
- 304 / 316 L stainless steel contact parts as standard.
- Deep anti - splash top rims.
- Quiet operation from polyurethane suspension spring mounts.
Rotary vibrating screen dimensions
Rotary vibrating screen pecifications
Model | Power(KW) | Screen dish(φ) | effective area
| Layer |
XC-600-1S XC-600-2S XC-600-3S | 0.25 0.55 0.55 | 560 | 0.2375 | 1 2 3 |
XC-800-1S XC-800-2S XC-800-3S | 0.55 0.75 0.75 | 760 | 0.4416 | 1 2 3 |
XC-1000-1S XC-1000-2S XC-1000-3S | 0.75 1.1 1.5 | 930 | 0.6789 | 1 2 3 |
XC-1200-1S XC-1200-2S XC-1200-3S | 1.1 1.5 1.75 | 1130 | 1.0382 | 1 2 3 |
XC-1500-1S XC-1500-2S XC-1500-3S | 1.5 2.2 2.2 | 1430 | 1.6052 | 1 2 3 |
XC-1800-1S XC-1800-2S XC-1800-3S | 2.2 2.2 3.0 | 1730 | 2.3523 | 1 2 3 |
Application
- Chemical industry: resin, coatings, industrial medicine,cosmetics, paint, Chinese medicine powder and so on.
- The food industry: sugar, starch, salt, Rice noodles, milk powder, Soybean Milk, egg powder, soy sauce, juice and so on.
- The metal, mining and Metallurgy: aluminum powder, lead powder, copper powder ,mineral,alloy powder, electrode powder, manganese dioxide, electrolytic copper powder, electromagnetic materials,abrasive powder, refractory material, kaolin, lime, alumina, ground limestone,quartz sand and so on.
- Pollution treatment: waste oil, waste water, dyeing wastewater, additives, activated carbon and so on.
Workshop Process
Exhibition & Customers
Packaging & Shipping
How to provide us the detailed need
2. The necessary process quantity (per hour)
3. Material contact part, SS304, SS316L and Q235 for option.
4. The different dimension of the machine can be designed for you.
5. Additional parts, like the Mobil wheel and noise-proof base, can be easily fixed and maintained.
