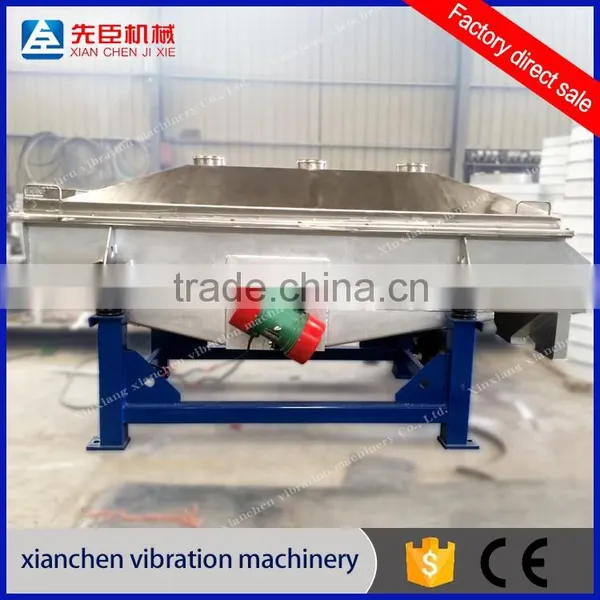

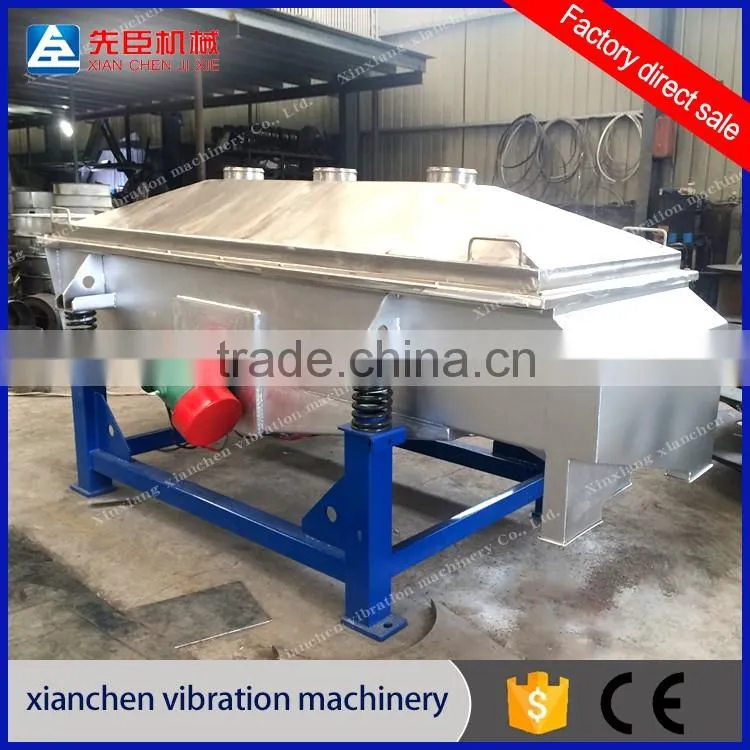

Xinxiang Fine Powder Rotary Vibration Screen/Separator Sifter/Powder Sieving machine

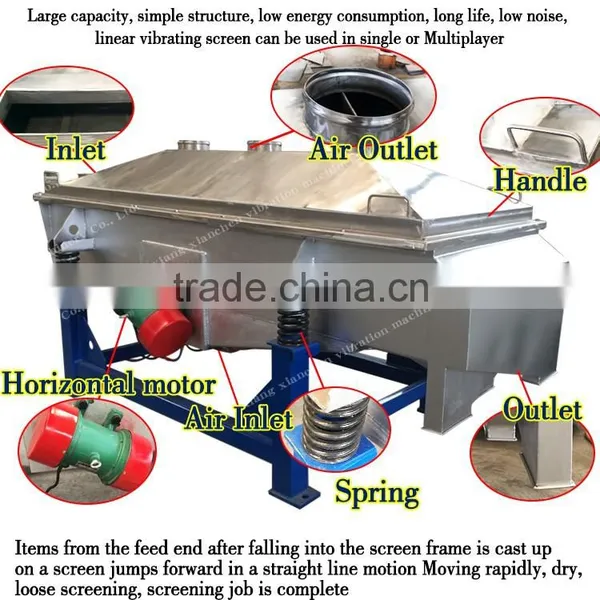

Working principle:
Linear vibrating screen dual vibration motor, vibration motor when the two do synchronized reverse rotation, the centrifugal force generated by its eccentric block cancel each other in parallel to the motor axis direction, In the fold is perpendicular to the direction of the motor shaft for a resultant force, so the trajectories of sieve machine for a straight line. Its two motor shaft relative screen surface has a dip at the joint effect of the exciting force and material selfgravity, The material on the sieve was thrown up by leaps and bounds ahead for linear motion, so as to achieve the purpose of the material screening and grading. With low energy consumption, high efficiency, simple structure, easy maintenance, fully enclosed structure no dust features.2to400 mesh sieve mesh, screening out nine different particle size of materials.
Technical parameters:
Model |
XC520 |
XC525 |
XC530 |
XC1020 |
XC1025 |
XC1030 |
XC1225 |
|||
Nominal Size |
500×2000 |
500×2500 |
500×3000 |
1000×2000 |
1000×2500 |
1000×3000 |
1200×2500 |
|||
Particle Size(mm) |
0.074-60 |
0.074-60 |
0.074-60 |
0.074-60 |
0.074-60 |
0.074-60 |
0.074-60 |
|||
Shake frequency |
960 |
|||||||||
Screen slope |
1°-7° |
1°-7° |
1°-7° |
1°-7° |
1°-7° |
1°-7° |
1°-7° |
|||
Swing |
1-4.5 |
1-4.5 |
1-4.5 |
1-4.5 |
1-4.5 |
1-4.5 |
1-4.5 |
|||
Layer |
1-6 |
1-6 |
1-6 |
1-6 |
1-6 |
1-6 |
1-6 |
|||
Power |
2(0.37-0.75) |
2(0.37-0.75) |
2(0.37-0.75) |
2(0.37-1.1) |
2(1.1-1.5) |
2(0.75-1.5) |
2(0.75-1.5) |
|||
Linear sieve using range:
Widely used in screening chemical, food, plastics, pharmaceuticals, metallurgy, glass, building materials, food, fertilizers, abrasives, ceramics, paint, food, mining and other industries in a dry powder or granular material.
Packaging & Shipping:
FAQ:
Customers who need us to choose the models, please follow the information, tell us:
1.Name and feature of the raw material?
•Aim of using: get rid of impurity, filtration, grading
• Handling capacity: kg /h, L/h
• The raw material size: (mesh or mm)
• How many final materials you want, or how many layer you need?
Note: You had better send us the relevant pictures about the details.
2.How many kinds of material are supported?
• All stainless steel (304, 316L)
• All carbon steel Q235A
• Contact part Stainless steel.
3.Is it special requirement available?
Yes, the equipment could be designed according to customer's using aim or special requirements.
Waiting for you to contact us!!!
