We promise 12 months warranty and return cargos if quality problem
1.Carefully designed particle largescale screening machine, there is a lot of screening area; Inthe huge amount of industrialization production of granular material screening, screening machine is the best. Sphere, strip, sheet, column, easily broken, irregular shape of the material screening, high precision and great deal, other screen do not compare.
2.Run stable precision rotary sieve, with a high screening efficiency. Highprecision, large capacity optimal level screening machine, the machine can not be analogies to other sieve.
3.By precision rotary sieve eccentric exercise produce cyclotron motion and transferred to the sieve surface, so that the material in the sieve machine front quickly dispersed, so as to achieve the purpose of efficient screening.

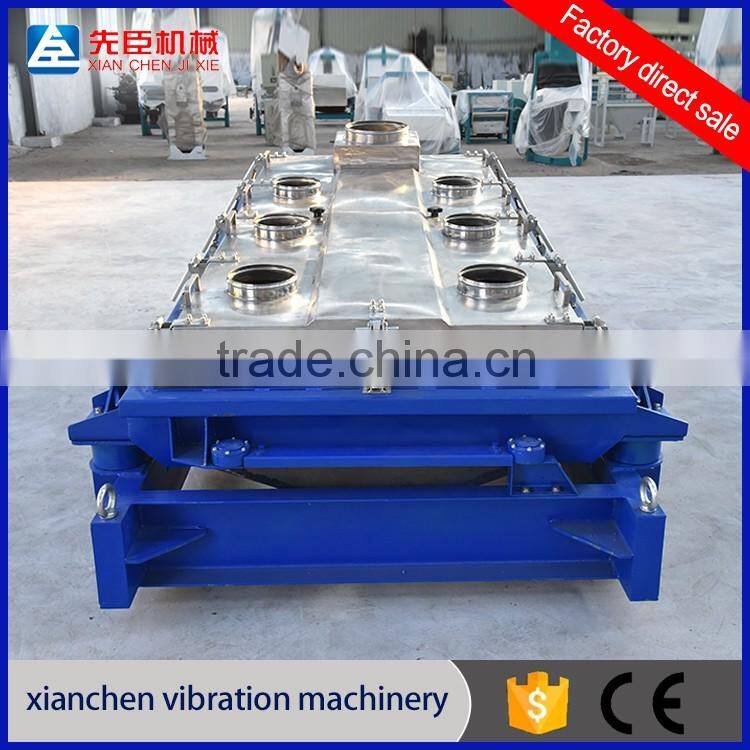

Actual photos- Gyratory screen
Working principle --- Gyratory screen
The unique gyratory motion imparts a combination of actions to the material as it passes along the screen surface. It begins with a horizontal circular motion at the feed end, gradually diminishing along the length of the machine to an elliptical path, and finally to an approximate straight-line motion at the discharge end. There is no vertical component to this motion thus keeping the material in constant contact with the screen surface.
Details --- Gyratory screen

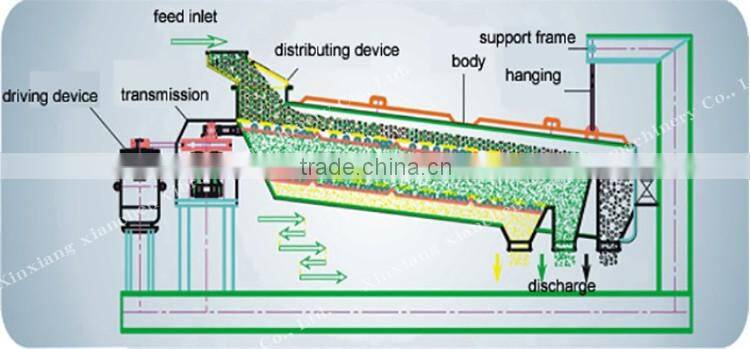

Structure diagram --- Gyratory screen
Feature --- Gyratory screen
Good sealing, balance weight can provide slight vibration and low noise,environmental protection.
No block,good self cleaning device
Combination of Circle, elliptic, linear motion, high screening effect .Suitable for various material screening
Equipped with automatic tension and automatic cleaning sieve net installation system which can make the screen mesh long service life and high efficiency , change the screen mesh conveniently.
Reinforced base ensure balance operation of the equipment.
Used for powder or granule feed screening and grade, can also be used for voidance of raw materials in feed factory.
Technical parameter --- Gyratory screen
Layer |
Model |
Screen surface: length*wide (mm) |
Screen box stroke (mm) |
Motor |
Weight (kg) |
|
|
Power (kw) |
Revolving speed (rpm) |
|||||
1 |
XC1000X1400 |
1000X1400 |
63.5 |
1.5 |
960 |
715 |
XC1000X2100 |
1000X2100 |
63.5 |
1.5 |
960 |
980 |
|
XC1000X3000 |
1000X3000 |
63.5 |
1.5 |
960 |
1200 |
|
XC1500X2100 |
1500X2100 |
63.5 |
1.5 |
960 |
1380 |
|
XC1500X3000 |
1500X3000 |
76 |
2.2 |
960 |
1340 |
|
XC1500X3600 |
1500X3600 |
76 |
5.5 |
960 |
2410 |
|
XC1200X3600 |
1200X3600 |
76 |
5.5 |
960 |
2020 |
|
2 |
2XC1000X2100 |
1000X2100 |
63.5 |
1.5 |
960 |
1400 |
2XC1000X3000 |
1000X3000 |
76 |
4 |
960 |
1840 |
|
2XC1500X2100 |
1500X2100 |
63.5 |
4 |
960 |
1710 |
|
2XC1800X3600 |
1800X3600 |
76 |
7.5 |
960 |
3880 |
|
2XC1500X3000 |
1500X3000 |
76 |
7.5 |
960 |
2780 |
|
2XC1500X3600 |
1500X3600 |
76 |
7.5 |
960 |
3180 |
|
3 |
3XC1000X2100 |
1000X2100 |
63.5 |
5.5 |
960 |
2150 |
3XC1500X3000 |
1500X3000 |
76 |
5.5 |
960 |
3200 |
|
3XC1800X3600 |
1800X3600 |
76 |
7.5 |
960 |
4170 |
|
3XC2000X5000 |
2000X5000 |
92 |
11 |
960 |
5500 |
|
Application --- Gyratory screen
About us
Xinxiang Xianchen Vibration Machinery Co,. Ltd ,which is established in the year of 2009, located in China biggest machinery manufacture base Henan province, is a professional vibration machinery manufactures which specializes in the production of sieving equipments, conveying equipments, crushing equipments and feeding equipments as well as relevant parts. we committed to solve all kinds of sieving problem.
Xianchen has professional engineers and experienced employees to provide the manufacture, design, customized solution and after service for worldwide customers.
Our tenet: "market oriented, technology based, quality of survival, innovation and development ".We have passed ISO9001:2008 certification. Under the guide of international quality management system, our products have won not only good reputation in china but also applauses by foreign clients like United States, Germany, Turkey, Indonesia and so on.
xianchen sincerely treat every customer, hope to make friends with people from all over the world, and very looking forward to establishing a long-term win-win partnership with you.
Application --- Gyratory screen
exhibition and visitors
It appreciate If you send us the pictures you have ever used.
b: Customers who need us to choose the models, please tell us follow the information, :
Name and feature of the raw material?
Aim of using: get rid of impurity, filtration, grading
The raw material size: (mesh or mm)
How many final materials you want, or how many layer you need?
It appreciate If you send us the relevant pictures about the details.
c: How many kinds of material are supported?
All stainless steel (304, 316L)
All carbon steel Q235A
Contact part Stainless steel.
d: Is it special requirement available?
Yes, the equipment could be designed according to customer's using aim or special requirements.
Q:What factors I need to get a quotation?
A: Material bulk density, mesh size,deck number & ideal capacity for proper type, granularity distribution is recommended. product material requirement (carbon steel Q235A, stainless steel SUS304 or SUS316,etc.) Voltage & Frequency(Hz) is also needed for a precise quotation.
Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.
Q: How do you ensure the quality of your products?
A: Generally, our equipments are the most durable type in the industry, this is also the feature of the label impression of DZJX for most of our customers at home or abroad.Skilled workers and strict quality control system can ensure every machine with best working performance.
Q: How do your after-sale service work if the product got damaged?
A: In the guarantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of cost.(note: Vulnerable parts do not include.)
Q: How could I trust your promise?
A: Firstly, you may check the assessment on our website certified by the appraisal agency Bureau Veritas;
secondly, we attend at least 4 to 6 international industry exhibitions held in China annually, like the Food Ingredients China, China International Battery Fair, CPhI, ICSE BioPh China, ICIF China, etc. We usually met our customers there for negotiation;
Thirdly, company inspection always available, if you have any representative or you would like to come to our site, we offer free shuttle from Zhengzhou airport to our company, welcome your visit.
Watting for your inquiry !!!
