We promise 12 months warranty and return cargos if quality problem
Brief Introduction of Screw feeder
This machine is mainly used in conveying powder, particles of ascension, suitable for food, chemical, pharmaceutical and other industries, or with a fully automatic, semi-automatic of injected powder packaging machine, form linkage, reduce the intensity of production operation and ensure accuracy of packaging, as a corollary equipment of choice.
Compared with other transportation equipment, screw conveyor with the machine section size small, reliable sealing performance is good, smooth operation, screw and feeding tube adopts new structure of subsection and demountable facilitate transport clean and safe operation, convenient maintenance, etc.
The vibrating screw feeder can improve a variety of powder materials;
to form a complete set of packaging machine;
to realize automatic level tracking feed;
And also can be used separately on other occasions in additionto the motor bearing frame the rest of stainless steel (can also be customized accordingto requirements;
Features of Screw feeder
Any material suitable for conveying screw situations can be transported by the models, regardless of the level, tilt or vertical state can be continuous conveyor, especially when it is inclined and vertical transportation it can be directly connected to the equipment., and does not need the foundation, make full use of space.
It has a good sealing, no dust and pollution leakage phenomenon, that no waste materials and create a good working environment.
The helical body is of small diameter, high rotating speed and large conveying capacity, and is especially suitable for inclined and vertical transportation. In view of the above structure characteristics and performance, XC type screw conveyor will be widely used, it is not only GX type screw conveyor replacement products, and can replace other forms of transport machinery in many occasions.

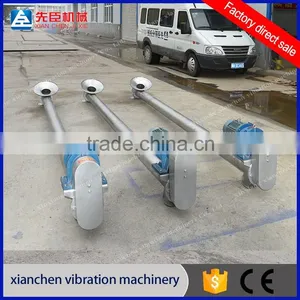

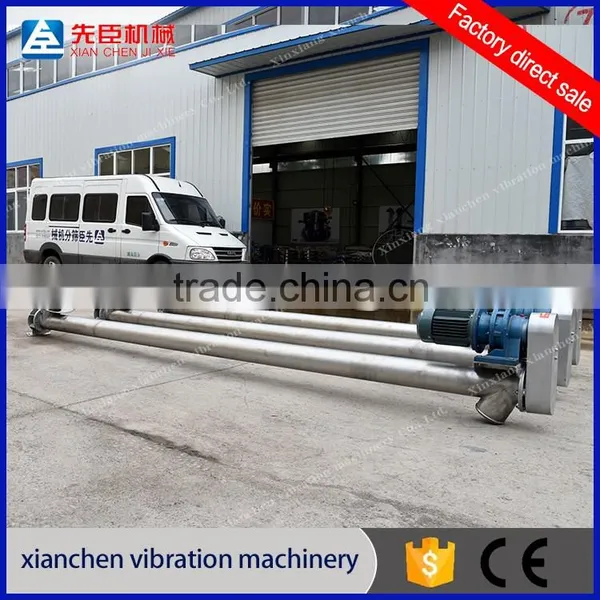

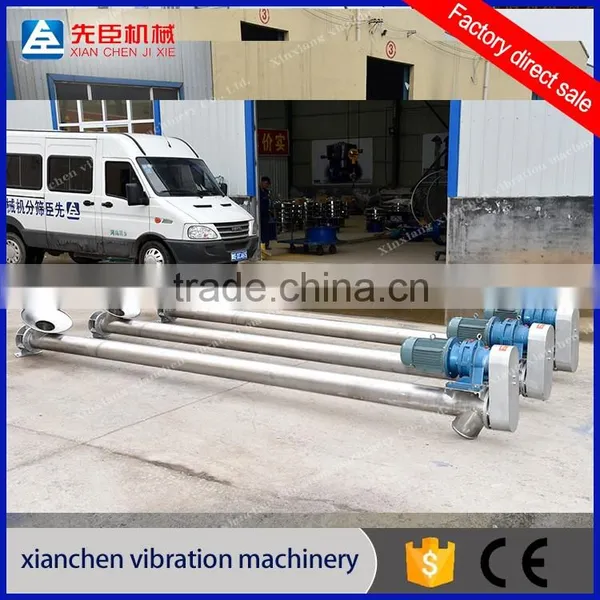

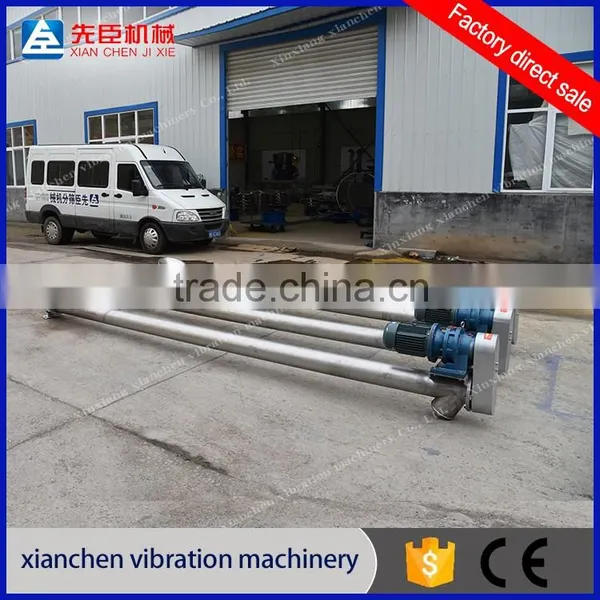

Actual photos of Screw feeder
Application of Screw feeder
The screw conveyor is suitable for the transportation of bulk materials in chemical industry, metallurgical industry, paper making, construction engineering and other industries. Such as cement, coal, carbon black, soda ash, flour, grain and paper pulp etc.
Because the machine can move freely and the level, tilt, vertical anywhere can continuous conveyor, so especially suitable for mobile field operations, such as concrete mixing station, bulk material storage and transfer etc. occasions especially to reflect the advanced and superior.
Technical parameter of Screw feeder
Model |
XC-FW2 |
XC-FW3 |
XC-FW5 |
XC-FW7 |
XC-FW8 |
XC-FW12 |
|
Charging capacity |
2 m3/h |
3 m3/h |
5 m3/h |
7 m3/h |
8 m3/h |
12 m3/h |
|
Total power |
0.78kw |
0.78kw |
1.53kw |
2.23KW |
3.03KW |
4.03KW |
|
Diameter of pipe |
Φ102mm |
Φ114mm |
φ141mm |
φ159mm |
Φ168mm |
Φ219mm |
|
Hopper volume |
100L |
200L |
200L |
200L |
200L |
200L |
|
Total weight |
100kg |
130kg |
170kg |
200kg |
220kg |
270kg |
|
Supply power |
3 phase 208-415V 50-60Hz |
||||||
Charging angle |
Standard 450 ,300 and 600 are also available |
||||||
Charging height |
Standard 1.8 meters,1-5 meters could be designed and manufactured |
||||||
Remark |
Other charging capacity could be designed and manufactured |
||||||
Exhibition and visitors of Screw feeder
Workshop process of Screw feeder
Sales Market of Screw feeder
Xinxiang Xianchen Vibration Machinery Co,. Ltd ,which is established in the year of 2009, located in China biggest machinery manufacture base Henan province, is a professional vibration machinery manufactures which specializes in the production of sieving equipments, conveying equipments, crushing equipments and feeding equipments as well as relevant parts. we committed to solve all kinds of sieving problem.
Xianchen has professional engineers and experienced employees to provide the manufacture, design, customized solution and after service for worldwide customers.
Our tenet: "market oriented, technology based, quality of survival, innovation and development ".We have passed ISO9001:2008 certification. Under the guide of international quality management system, our products have won not only good reputation in china but also applauses by foreign clients like United States, Germany, Turkey, Indonesia and so on.
xianchen sincerely treat every customer, hope to make friends with people from all over the world, and very looking forward to establishing a long-term win-win partnership with you.
Q: Are you factory or trading company?
A: We are factory focusing on manufacturing of vibrating screen.
Q: I need a video showing how your machine works, can you send it?
A: Certainly, we have made all machine's video and uploaded to Youtube.
Q: Do you make test before shipment?
A: Before shipment, we always test machine fully.
Q: How can I know that your machine is designed for my product?
A: You can send us samples and we do test on our machine.
Q: How can I pay my order?
A: We accept T/T, Western Union, MoneyGram, Alibaba Trade Assurance payments.For orders less than 1000USD, PayPal is acceptable.
This machine also could be customized by clients' specific production line requirement.
