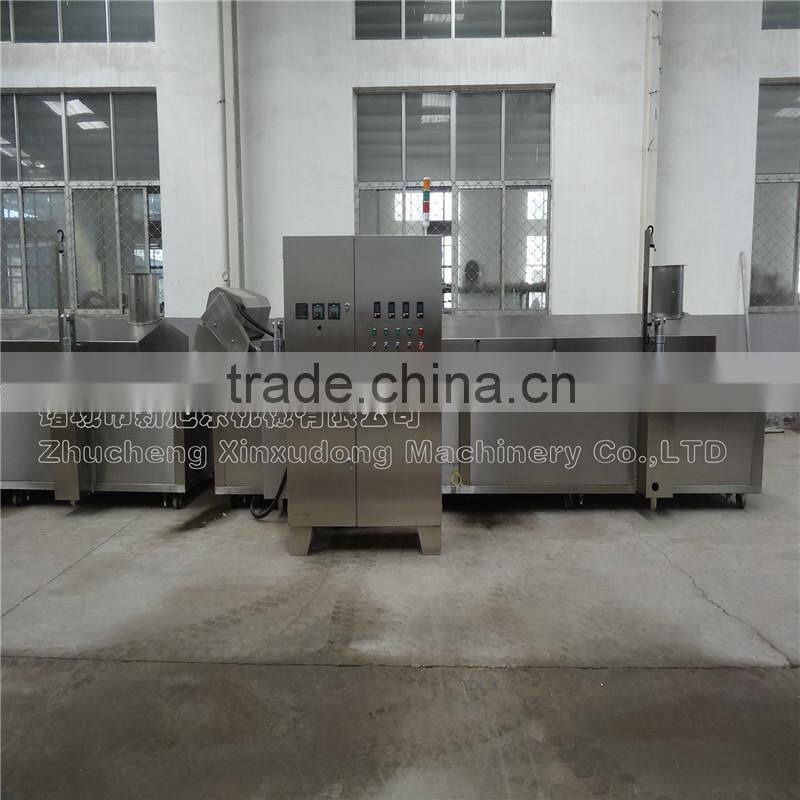

Help CenterAutomatic Ham, Sausage Boiling Machine; Boiler for Ham and Sausage
Related Products
-
All Kinds of ConveyorsUS$ 1,000 - 5,000MOQ: 1 Set -
Flat Flex Mesh Belt ConveyorUS$ 1,000 - 5,000MOQ: 1 Set
-
Stainless Steel Flat Flex Wire Mesh Belt ConveyorUS$ 1,000 - 5,000MOQ: 1 Set
-
Stainless Steel Flet Belt ConveyorUS$ 1,000 - 5,000MOQ: 1 Set
-
Stainless Steel Wire Mesh Belt ConveyorUS$ 1,000 - 5,000MOQ: 1 Set

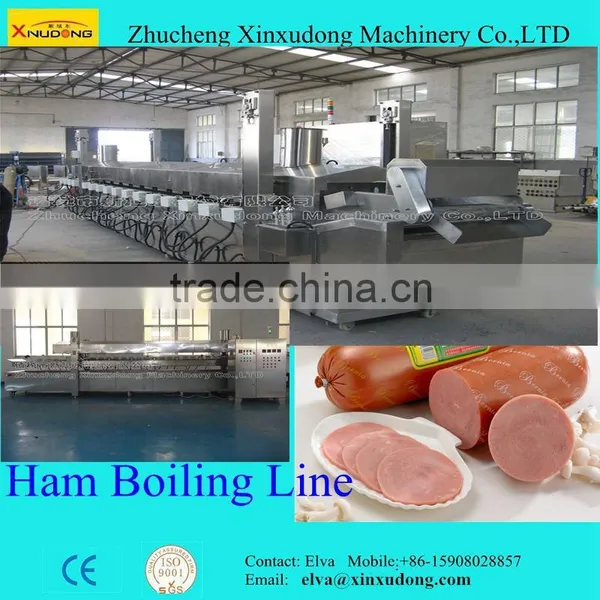

HAM BOILING PRODUCTION LINE
- 1. Requirement:
Ham capacity: 600kg/h
Boiled food: ham
Ham size: 1000*100*100mm
Ham weight: 7-8kg/ pcs
Boiling time: 20 minutes
- 2. Specification
1 |
Boiling product |
Ham |
2 |
Heating method |
Steam |
3 |
Steam cost |
500-600kgh |
4 |
Boiler length |
10m |
5 |
Width |
1.2m |
6 |
Boiling time |
20 minutes |
7 |
Speed |
1.5-7.5m/ min speed is frequency controlled |
8 |
Hoisting |
Chains hoisting |
9 |
Power |
Conveyor: 2.2kw+hoisting 2*0.75kw |
10 |
Steam supply |
0.2-0.4Mpa/ DN65 |
11 |
Heating |
PLC Control 3 points temperature control |
12 |
Mesh belt width |
1200mm |
- 3. DETAIL INFORMATION
No. |
Item |
introduction |
1 |
Continuous Boiling line |
Automatic continuously working; Pot body made of 4mm 304 stainless steel,baseboard is 5mm thickness. Pot body shell made of 1.5mm 304 stainless steel. Water leakage test to make sure the leakproofness after welding. Aluminum silicate insulation materials is filled between pot body and shell.Drain valve is installed on the bottom of fryer |
1.1 |
Hoisting system |
Use chains hoisting system. Can hoist the fume exhaust cover individually. Can hoist the cover, belt holder and heating tubes together Convenient to clean the mesh belt and fume exhaust cover. Use the safety bumper to make sure the belt holder can not fall down when it lifted. Automatically cut off heating tubes' power when hoisting the cover. |
1.2 |
Automatic control box |
oil temperature is tested by sensor and transfer to controller. It will stop heating after reaching the set temperature and alarm if beyond set temperature Three temperature measurement point, control temperature of each parts of fryer respectively. |
1.3 |
Mesh belt conveying system |
Belt speed is frequency controlled. chains mesh belt, stick diameter is 10mm, stick distance is 76.2mm, chains space: 38.1mm The exhaust cover and belt holder can be lifted individually, easy cleaning. The bearing and seat is made of stainless steel 304. Transmission use gear reducer with low noise. |
1.4 |
Lampblack exhausting system |
Exhaust cover is made of 1.5mm stainless steel 304. The cover and exhaust pipes have vapour extraction system. Two fume Exhaust pipes ,each is 6m long,made of 304 stainless steel. Axial flow fan installed on the end of each exhaust Control valve installed on the bottom of exhaust seat. |
