Specifications
1.304 stainless steel.2.efficient and energy saving
3.easy operation and cleaning
Automatic Multi Forming Machine AMF600-Ⅲ
Automatic Multi Forming Machine AMF600-Ⅲ
CXJ600 Automatic Multi Forming machine can automatically perform various procedures such as meat filling, forming and outputting, and combine a fully automatic prepared food line when connecting with the batter, preduster, fryer, cooker, instant freezer and packing machine. It adopts the method of four-screw feeding system, greatly reduces the cutting of the material, and has better features of high production capacity and stable quality.
Easy and convenient replacement of food and the accurate portion control realize the cost control of the production.
Widely handles in the forming procedure of meat, poultry, fish, shrimp and the potato, tuber crops. And it can be applied in the fields of all kind of minced/sliced products for premier meat texture taste.
Safe device:Magnetic protection switch (safe cover).
Technical parameter:
Width of the belt |
600mm |
Air /water pressure |
6Bar/ 2Bar |
Power |
15.12KW |
Production capacity |
About 500~1000kg/h |
Strokes |
15~60 strokes per minute |
The thickness of product |
6~40mm |
Weight Error |
≤1% |
The maximum diameter |
150mm (for round burger) |
Filling pressure |
3~15Mpa adjustable |
Overall dimension |
3170×1176×2636mm |

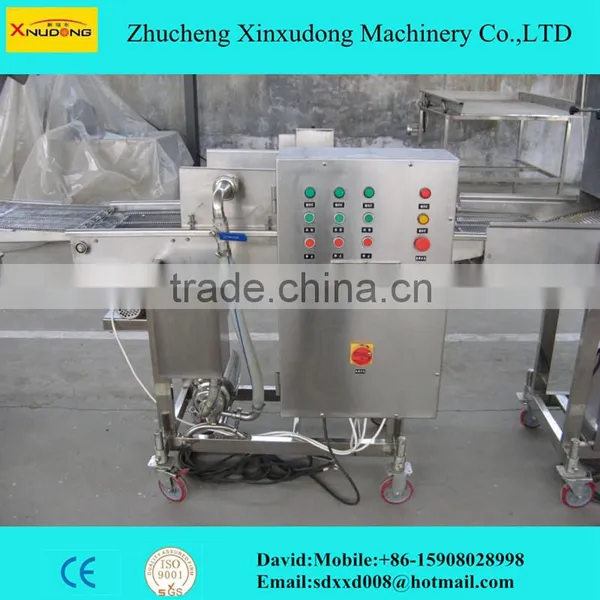

SJJ600-Battering machine
can offer a even coating of the chicken (poultry), beef, meat, seafood etc with a two-layer batter curtain on the top and a batter under-bath. It is suitable for the processing procedure before breading and predusting.
Special design of batter pump can greatly reduce the cutting of the batter.
Fast-combine design, easy to clean, less damage to the viscosity of the batter.
Easy and reliable adjustment.
Reliable protecting device.
Can be precisely combined to a forming machine, a breading machine or
a fryer to realize the continuous producing.
Stainless steel made, creative design, reasonable structure and reliable Ffeatures.
Technical parameter:
Speed of the belt |
3-15m/min adjustable |
Input height |
1050±50mm |
Output height |
1050±50mm |
Width of the belt |
400,600mm |
Power |
2.6KW |
Overall dimension |
1940*1030*1450mm |
Breading machine SXJ600
coats evenly the chicken, beef, meat and seafood a top layer by outpouring the crumbs from the hopper and a bottom layer while the products are passing the conveyer belt.
Excellent crumbs circulation system virtually reduce the cutting Ddamage of the crumb, easy to realize the standard production.
Reliable protection device.
Access to former, battering machine and fryer for a continuous
Pproduction line.
Stainless steel made, creative design, reasonable structure, and reliable characteristics.
Technical parameter:
Speed of the belt |
3-15m/min adjustable |
Input height |
1050±50mm |
Output height |
1050±50mm |
Width of the belt |
400,600 mm |
Power |
3.7KW |
Overall dimension |
2640*860*2250 mm |
Automatic continuous mesh belt frying machine
automatic temperature control,
automatic circulation filter system,
automatic sediment removal system,
automatic lifting system,
the frying time is adjustable,
frequency control of motor speed,
power leakage protection,
high oil temperature protection and alarm,
low oil level protection,
lifting warning and protection,
| Model | XDL-5500*1000 |
| Size | 5500*1250*2200MM |
| Effective fried area | 4300*1000MM |
| Oil capacity | 1000L |
| Heating power | 120kw/150kw |
| Electric power | 5.2kw |
| Total power | 125.2kw/155.2kw |
| Voltage | 380v |
|
Frequency
|
50Hz |
| Temperature | 80-300°C |
1, Supply all informaton about the machinery to seller if customer require, such as the price list, the operation instruction, the video or other.
2, we will prepare and send all documents before goods reaching destionation port. The documents include sales contract, Immercial invoice, Packing list and other certificate.
3, If customer can not install and operate the machine, we will show clients the install instruction or video. If cusotmer stil can not do it, we will send our engineer to install and teach them to use.
4, One year warranty. Within one year from the signed contract, we can provide free service.
Zhucheng Xinxudong Machinery Co.,Ltd is a professional manufacturer of frying machine and food processing machinery for more than 15 years and have a good reputation in China and word. The main products are following:
1, Various types of fryers: small deep fryers, medium and large continuation frying machine
2, potato chips / Frech Fries processing line
3, Hamburger patty/nuggets forming and coating processing line.
4, Pet food processing machinery
5, Bean and peanut processing machinery
6, vegetable and fruit processing machinery.
