Thin Film Solar Panel(55-85WP)

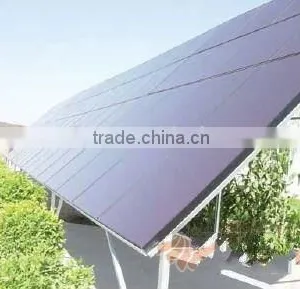

Thin Film Solar Panel(55-85WP) thumbnail-1

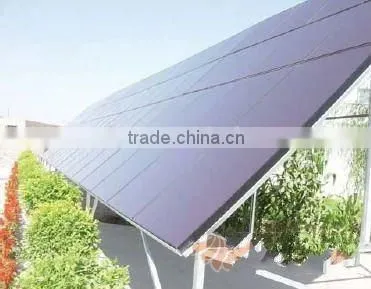

Thin Film Solar Panel(55-85WP) photo-1
US$ 0.98 - 1.35 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Hilight Solar
Model Number:
HS-A-55WP-85WP
Contact Supplier Request Quote Chat Now
Shandong Hilight-Solar Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name Hilight Solar
Model Number HS-A-55WP-85WP
Material Amorphous Silicon
Size 1400x745x7,1400x1100x20
Max. Power 100W

Specifications

Thin Film Solar Panel
Power: 1W-125WP
Thin Film Solar Panel:High performance
Warranty:25 years lifetime
Certificate:TUV,UL,

Amorphous silicon solar panels, a-Si solar panel, a-Si solar module,amorphous silicon solar pv module, a-Si thin film solar panel,amorphous silicon thin film solar panel power range from 1Watts to 125Watts

 Thin Film Solar Panel Product Description:

  1. The price of amorphous silicon solar panel is competitive than silicon solar panel. It can be promoted in large scale.
  2. Amorphous silicon solar panel has advantages as high voltage, good charging ability and workable under weak sunlight. In other words, it has good quality and competitive price compared with silicon solar panel.
  3. To actual test results, amorphous silicon solar panel can prduce more than 10% to 20% energy per year than silicon solar panel of the same power, especially in the area which has many overcast and rainy days

a-Si Thin Film Solar Panel/Module Technical Parameter:

 The hwarrant of the products life can reach 20 years. The maximum output power(pm) will not less



Solar Module

a-Si Thin Film Solar Panel/Module
Maximum power (Wp)

55 w

60 w

65 w

75 w

80 w

85 w
Maximum power voltage (V)   60.20 60.60 63.70 82.90 85.40 87.50
Maximum power current (A)   0.91 0.99 1.02 0.91 0.94 0.98
Open circuit voltage (V)   79.00 71.30 71.50 111.50 112.40 114.20
Short circuit current (A)  1.18 1.25 1.28 1.18 1.18 1.19
Size of module (mm)   1400x790x27 1400x745x7 1400x745x7 1400x1100x20 1400x1100x20 1400x1100x20
Type of Solar Cells

a-Si single junction
Maximum system voltage (V)

≤1000 VDC
Temperature coefficients of Isc (%)

+ 0.09/ °C
Temperature coefficients of Voc (%)

-0.28/ °C
Temperature coefficients of Pm (%)

-0.20/ °C
Temperature coefficients of Im (%)

+0.09/ °C
Temperature coefficients of Vm (%)

-0.28/ °C
Temperature Range

-40°C~+85°C
Surface Maximum Load Capacity

60m/s(200kg/sq.m)
Allowable Hail Load

steel ball fall down from 1m height
Weight per piece (kg)   19.60 15.70 15.70 26.20 27.60 28.30
Junction Box Type

Junction box with TUV certificate
Length of Cables (mm)

as customer's demand
Module Efficiency (%)   6.0% 6.0% 6.0% 6.0% 6.0% 6.0%
Output tolerance (%)

±5%
Frame (Material, Corners, etc.)

Aluminum Alloy Frame

Aluminum Alloy Frame  or frameless
Standard Test Conditions

AM 1.5,1000W/m2, 25°C
Warranty

5 years product warranty and 20 years 80% of power,25 years for lifetime
