Help CenterLow Price 235Wp Solar PV Panels
Related Products
-
Poly 225w-240w PV Solar Panel With TUV,CE,ISO,CECUS$ 0.53 - 0.7MOQ: 10 Pieces -
Poly 225w-240w Solar for Home Use With TUV,CE,ISO,CECUS$ 0.53 - 0.7MOQ: 10 Pieces
-
Grade A Cell Mono 5-40W Solar Panel With CE TUVUS$ 0.62 - 0.7MOQ: 25 Pieces
-
5W-300W Solar PanelUS$ 0.62 - 0.78MOQ: 10 Pieces
-
Polycrystalline 125W Solar Panel With CE TUVUS$ 0.65 - 0.72MOQ: 10 Pieces
Specifications
235Wp solar PV panels1.25 years lifetime
2.First-grade photovoltaic panel
3.Widely applicated
4.TUV/CE/CEC/ISO

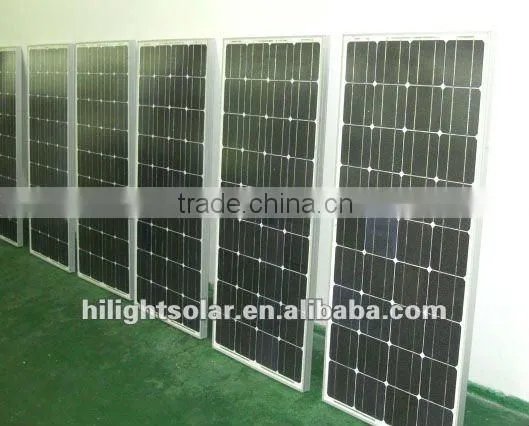

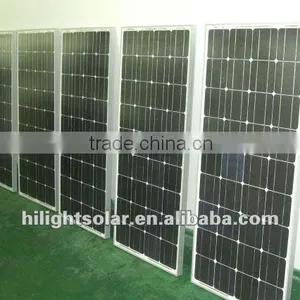

Low price 235Wp solar PV panels
Characters:
1. High cell efficiency with good-quality crystal silicon materials.
2. Long-term stability and reliability.
3. High transmit , low-iron tempered glass with enhanced stiffness and impact resistance.
4. Unique frame designed with high mechanical strength for easy Installation and durable requirement.
5. Advanced encapsulation materials to provide efficient protection from various environmental conditions.
6. Outstanding electrical performance under high temperature and low irradiance conditions.
Low price 235Wp solar PV panels
Quality and Warranty:
1. Peak power of each solar panel in guaranteed : +-3%power tolerance.
2. Average power of solar panel in single order is guaranteed not less than the peak power
3. Rigorous quality control meets the highest international standard
4. 5 years limited warranty on material and workmanship
5. 10 years and 20 years limited warranty for minimum power output. Detailed information, will check gaurantee book.
Low price 235Wp solar PV panels
Table:
Module Type |
HSPV-235Wp-156-66P |
HSPV-240Wp-156-66P |
HSPV-245Wp-156-66P |
HSPV-250Wp-156-66P |
HSPV-255Wp-156-66P |
HSPV-260Wp-156-66P |
HSPV-265Wp-156-66P |
HSPV-270Wp-156-66P |
HSPV-275Wp-156-66P |
HSPV-280Wp-156-66P |
HSPV-285Wp-156-66P |
|
Maximum power at STC (Pmax) |
235w |
240w |
245w |
250w |
255w |
260w |
265w |
270w |
275w |
280w |
285w |
|
Maximum power voltage (Vmp) |
32.5 |
32.6 |
32.7 |
32.8 |
32.9 |
33.0 |
33.0 |
33.1 |
33.2 |
33.3 |
33.3 |
|
Maximum power current (Imp) |
7.23 |
7.36 |
7.49 |
7.62 |
7.75 |
7.88 |
8.03 |
8.16 |
8.28 |
8.41 |
8.56 |
|
Open circuit voltage (Voc) |
39.0 |
39.2 |
39.4 |
39.6 |
39.7 |
39.8 |
40.0 |
40.0 |
40.2 |
40.2 |
40.3 |
|
Short circuit current (Isc) |
8.03 |
8.16 |
8.29 |
8.42 |
8.56 |
8.60 |
8.72 |
8.77 |
8.88 |
9.04 |
9.18 |
|
Nominal Operating Cell Temperature |
45 ± 2°C |
|||||||||||
Temperature coefficients of Isc |
+0.049% /°C |
|||||||||||
Temperature coefficients of Voc |
-0.340% /°C |
|||||||||||
Temperature coefficients of Pmax |
-0.430% /°C |
|||||||||||
Standard Test Conditions (STC) |
Irradiance 1000W/m2, Module temperature 25°C, Air Mass (AM)=1.5 |
|||||||||||
Power Production Tolerance |
± 3% |
|||||||||||
|
||||||||||||
The company has always been the attitude of loyalty,honesty,service more into the pursuit not only serve the purpose.
