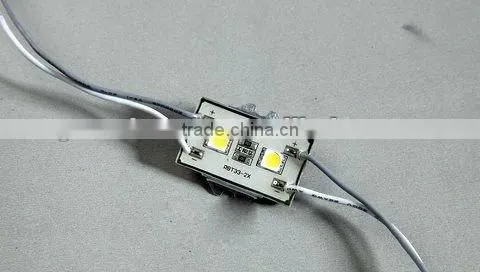

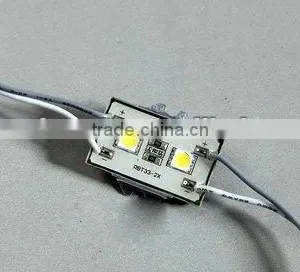

5050 pixel waterproofing rgb smd led module
Specifications
| Dimension | L35XW20XH4mm | ||||
| LED No | 2 pcs 5050 SMD LED | ||||
| Voltage | Input 12VDC | ||||
| View angle | 150 degree | ||||
| Current | 60mA | 60mA | 60mA | 60mA | 60mA |
| Watts | 0.72 | 0.72 | 0.72 | 0.72 | 0.72 |
| Lumen | 40 | 6.3 | 21.6 | 7.5 | 12.8 |
| Cover | Aluminum | ||||
| Life | 50,000 hrs. Lumen Maintenance:>95%@1,000hrs |
||||
| Color | White 3500~13000k |
Blue | Green | Yellow | Red |
| Operation Temperature | -40°C- 60°C (-40°F~140°F) | ||||
| Certificate | CE:BTRE0708181359 / RoHS: BTRS0708310889 | ||||
| Warranty | 36 months | ||||
| Weight | 6g/pc.360g/60pcs/bag | ||||
| IP | IP67 The PCB be covered by resin. | ||||
Features:
·Highest Brightness
5050 SMD LED Modules have best brightness among LED modules
·Easy Installation
LED Modules can be easily installed with 3M double-sided sticking tape and connectors.
·Extended Life
LED Modules have a life time of more than 50,000 hours.
·Totally waterproof
With IP67 protection degree, LED Modules can operate normally in cloudy, rainy, desert, and snowy weather conditions and pool. The LEDs are totally covered by resin.
·Friendly environment
Pb free. With CE/RoHS/SGS certificate, Waterproof LED Modules are up to 60% more energy efficient than neon.
·Safe Application
Low voltage DC12V, safety and stable. Free maintenance
