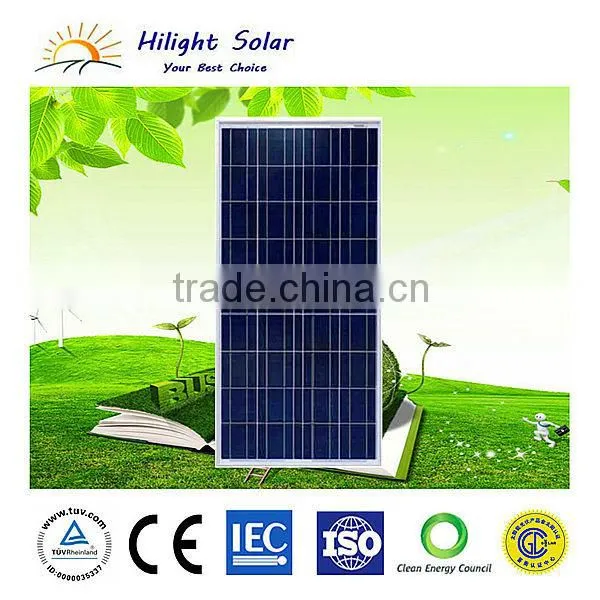

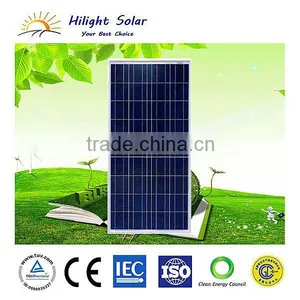

Grade A 150W Poly Solar Module With IEC,TUV,CE,ISO,CEC
- 10000000 Watt / Watts per Month
- Qingdao China
- T/T L/C D/P D/A Credit Card PayPal
- Economic price 100w 200w 300w 400watt ABS Housing Solar Cell All In One Integrated Solar Street Light
- Wall Mounted Lifepo4 51.2v 100ah 200ah Lfp battery for Solar System
- 10kwh 20kwh Home Solar Lithium 48v 200ah LiFePO4 Battery
- Residential 5kw Complete Solar Panel Kit For Home Solar Power System With Lithium Or Lead Acid Battery
- Home Hybrid Solar 10KW 40KW 50KW Whole Set Kit Solar Energy System Home Hybrid Solar Power System
- TENTEK TON-5150S stackable solid-state Lithium battery
Product Details
Place of Origin: | Shandong, China | Brand Name: | Hilight Solar | Model Number: | HSPV150Wp-156-36P |
Specification: | Normal | Application: | Home | Output Voltage (V): | other |
Load Power (W): | other | Solar Power (W): | 150W | Work Time (h): | 4-5 hours |
Product Description
Grade A 150W Poly Solar Module With IEC,TUV,CE,ISO,CEC
Who we are?
Shandong Hilight -Solar Co.,Ltd is located in Zouping ,Shandong, China.
Hilight solar PV modules got TUV, IEC 61215 & IEC 61730, CEC, CE, ISO etc. certificates. Hilight Solar are exporting to Europe, South America, Australia, Africa and Southeast Asia countries. We have flexible and timely after-sales services. We offer high quality products and sustainable service to our customer, establishing long-term cooperative relationship with them.
For more information, please enter Hilight Solar Power World.
Module Type | HSPV-130Wp-156-36P | HSPV-135Wp-156-36P | HSPV-140Wp-156-36P | HSPV-145Wp-156-36P | HSPV-150Wp-156-36P |
Maximum power at STC (Pmax) | 130w | 135w | 140w | 145w | 150w |
Maximum power voltage (Vmp) | 17.5 | 17.6 | 17.7 | 17.8 | 17.9 |
Maximum power current (Imp) | 7.43 | 7.67 | 7.90 | 8.15 | 8.38 |
Open circuit voltage (Voc) | 21.5 | 21.6 | 22.0 | 22.2 | 22.4 |
Short circuit current (Isc) | 8.06 | 8.33 | 8.48 | 8.59 | 8.81 |
Nominal Operating Cell Temperature | 45 ± 2°C | ||||
Temperature coefficients of Isc | +0.049% /°C | ||||
Temperature coefficients of Voc | -0.340% /°C | ||||
Temperature coefficients of Pmax | -0.430% /°C | ||||
Standard Test Conditions (STC) | Irradiance 1000W/m2, Module temperature 25°C, Air Mass (AM)=1.5 | ||||
Power Production Tolerance | ± 3% |

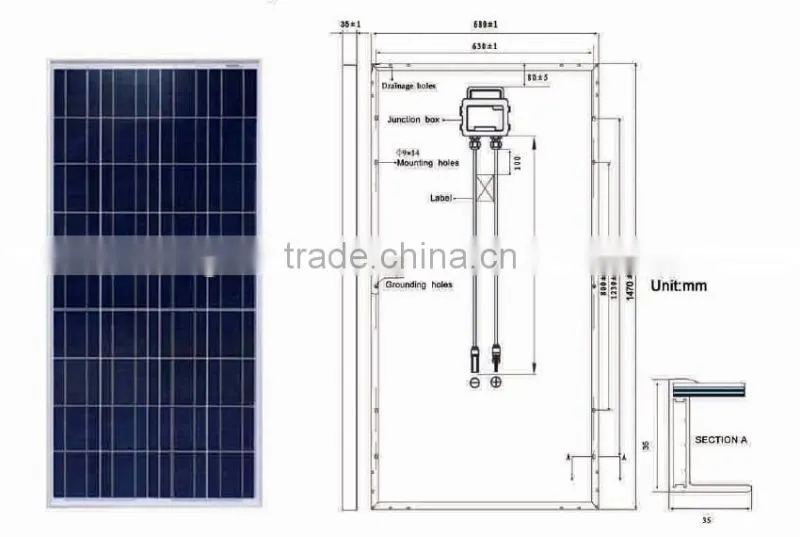

Mechanical Paramenters
Solar Cell | 36(4x9) poly solar cells 156 x 156 mm |
Front Cover | 3.2 mm thick, tempered glass |
Back Cover | TPT (Tedlar-PET-Tedlar) |
Encapsulant | EVA (ethylene vinyl acetate) |
Frame | Double-layer anodized aluminium alloy |
Junction Box | IP65 rated |
Cables/Connectors | 4.0 mm*mm 900mm / MC4 or compatible connectors |
1) Solar cell------conversion efficency of solar cells: 17%-18.5%, and ensures high performance and more power under same condition
2)Frontglass------3.2mm, high transmission, low iron, tempered glass,to enhanced stiffness and impact resistance
3) EVA ------excellent anti-aging EVA , to enhance the rigidity and stability of solar cells
4) TPT-------TPT hot seal made of flame resistance.
5) Frame------is equipped with drainage holes in order to eliminate the risk that rain or snow water may accumulate in the frame
6) Junction box------Ip65 rated, high quality, with diode protection
1. High cell efficiency with quality silicon materials for long term output stability and reliability.
2. Rigorous quality control to meet highest international standards.
3. High transmittance low iron tempered gloss with enhanced stiffness and impact resistance.
4. Unique frame design with high mechanical strength for easy installation.
5. Advanced encapsulation material with multiplayer sheet lamination to provide efficient protection from the severest environmental conditions.
6. Outstanding electrical performance under high temperature and low irradiance conditions.
Today is Solar Times, It’s your turn to cut your electric bill & enjoy clear energy.
1.Product Benefits:
1.Applies to commercial, residential and utility scale applications.
2. Easily installed ground, roof, building face or tracking system.
3. Smart choice for on-grid PV system applications.
4. Reduces electricity bill and creates energy independence.
5. Modular, no moving parts, fully scalable and easily installed.
6. Reliable and virtually maintenance-free power generation.
7. Helps environment by reducing air, water and land pollution.
8. Provides clean, quiet and reliable electricity generation.
9. Increases resale value of the property the day installed.
2.Module characteristic:
1. High efficiency solar cells ensure high performance of solar module and create more power in peak hours.
2. Bypass diodes to avoid hot-spot effect.
3. Pre-cable with fast-connecting systems for convenient installation.
4. Stable, heavy duty anodized aluminum frames with convenient mounting-access, for high wind-pressure and snow load.
5.The backside of frames is equipped with drainage holes in order to eliminate the risk that rain or snow water may accumulate in the frame through and freeze or even bend the frame in cold season.
6. Hilight PV modules offer industry leading high performance and are designed specifically to meet clients’ demand for residential, commercial and industrial use from small installations to multi-megawatt power plants.
Manufacturer Process
Certificates: TUV,IEC61215,IEC61730,CE,CEC,ISO,INMETRO.
Guarantee: 10 years for product defects in material & workmanship.
Warranty:10 years 90% power output, 20 years 80% of power,25 years lifetime.
Quality and Warranty:
1. Peak power of single module in guaranteed in +/-3% power tolerance
2. Average power of modules in single order is guaranteed not less then the peak power
3. Rigorous quality control meets the highest international standard
4. 10 years Limited warranty on materials and workmanship
5. Lifetime is 25years

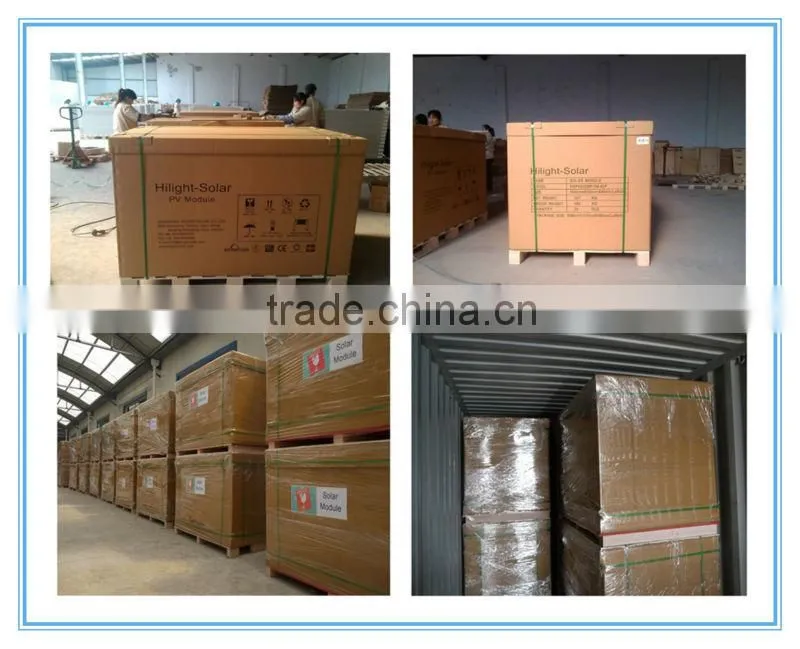

Packing: Carton + Pallet
Application
Our solar products is widely use for solar power system, solar street light, solar garden light, solar lawn light, solar pump and other solar correlative products.
1. Any large or small on -grid or off-grid solar power stations;
2. Commercial and industrial building roof-top systems;
3. Residential roof-top systems;
4. Any commercial or industrial ground mount systems;
5. Other industrial or commercial applications.
FAQ
If you do not find an answer to your inquiry below, we would still welcome the opportunity to answer your question. Please use the method of contacting us that best suits your needs by visiting the Contact area in the main navigation above.
1.When was HILIGHT founded?
It was founded in 2007.
2.What does HILIGHT Solar do?
HILIGHT Solar engaged in R&D, manufacture and sales of solar modules with an advanced semiconductor technology and provides comprehensive PV system solutions. By consistently driving down manufacturing costs, HILIGHT Solar is creating an affordable and environmentally responsible alternative to fossil-fuel generation.
3.Where is HILIGHT Solar?
HILIGHT Solar is headquartered in Zouping,Shandong, China.
4.How many associates does HILIGHT Solar have?
HILIGHT has more than 60 global associates and over 200 people are engaged in new energy department.
5.How do I purchase HILIGHT Solar modules for commercial and industrial installations?
HILIGHT Solar sells its solar modules to solar project developers and system integrators. Now we are recruit agent in other countries and areas. Please contact us directly about HILIGHT Solar product availability and agent issue. Contact us by email.
6.Does HILIGHT Solar offer PV solutions for commercial and industrial utilities?
Yes, HILIGHT Solar offers the most cost effective PV solutions for commercial and industrial utilities seeking to meet renewable portfolio standards requirements. Please contact our sales and product management team for more information.
7.Does HILIGHT Solar offer solar power systems for home use?
Yes, HILIGHT Solar offers solar power systems for home use with a competitive price. We have already developed new systems with portable solar modules and control-battery machine.
8.Does HILIGHT Solar sell to distributors or wholesalers?
Yes, HILIGHT Solar currently is selling its products through distributors, resellers, or wholesalers. And agent are wanted now. For more information, please contact our sales and management team.
9.What incentives are available to me in my area?
A database of federal, state, local, and utility incentives and policies promoting renewable energy and energy efficiency can all be found at your local government energy sector's website.
10.How much do HILIGHT Solar modules and systems cost?
HILIGHT Solar does not publish a price list for solar modules or PV solutions. Therefore any question about price and costs, please contact our sales team.
11.Are HILIGHT Solar modules available for low voltage photovoltaic applications?
HILIGHT Solar currently does not offer its module products for low voltage photovoltaic applications. Because we offer material and workmanship warranty of 10 years. Pease tell us your specific requirements and let us see what we can do to meet them.
12.Are HILIGHT Solar modules flexible?
HILIGHT Solar modules are manufactured on rigid glass and are not flexible. These modules are used for mostly on and off grid applications.
13.Does HILIGHT Solar offer a warranty for its solar modules?
HILIGHT Solar provides a power output warranty for 25 years subject to terms and conditions and a materials and workmanship warranty for five to ten years covering defects in materials and workmanship under normal use and service conditions.
14.Are HILIGHT Solar's PV modules certified by world's famous third certificate bodies?
Yes, currently HILIGHT Solar's products have CE, TUV, CEC certificates. And its factories are certified by ISO.
15.How well do solar panels work in the winter?
Solar panels work on light not heat. With shorter daylight hours in winter, solar panels produce proportionately less power. If the modules become covered with snow, they stop producing power, but snow generally melts quickly when the sun strikes the modules; if you brush the snow off, they resume operation immediately.
16.Can I use equipment directly from solar panels?
Yes. Solar panels will directly power equipment such as fans and pumps as long as the load is accounted for correctly. Equipment load that is greater than the output of the solar panel will weaken equipment efficiency, as overcast or cloudy days reduce output. Equipment that requires a more stable voltage should pair solar power with a battery backup.
17.What are the possible problems with solar panels and how can I prevent them?
Solar panel failure is most often caused by water damage to the panel, sealant, or connections. To prevent damage or failure, mount the panel carefully. Be sure not to fix it horizontally, which encourages water collection in the frame. Also, allow for a sufficient air gap beneath the panel. Keeping your panel dry and clean will ensure efficient, maximum output.
18.Are solar electric systems safe?
Yes. Solar cells are mostly silicon, the primary component of sand. There is no exhaust and no toxic materials to leak out of the system. The electricity coming through the inverter is just like the electricity coming from household wall sockets; you should use the same care you would with utility power. All components are approved for utility interconnection and are installed according to standard construction practices.
19.Are solar power systems good for the environment?
Energy created through our solar electric system produces no pollutants. Our smallest system typically cuts greenhouse gas emissions as effectively as 50 trees.
We hope these FAQ is have helped and please feel free to contact us via e-mail or telephone if you require any further assistants.
Shandong Hilight Solar Technical Team.
