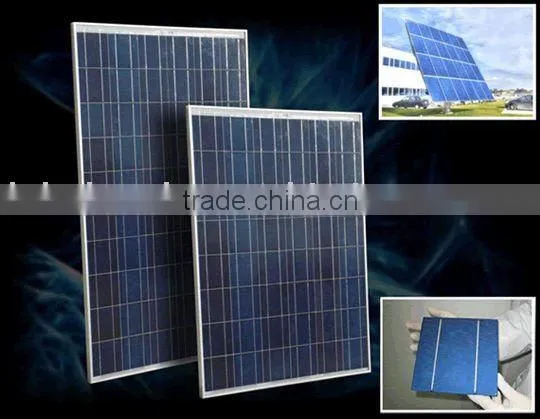

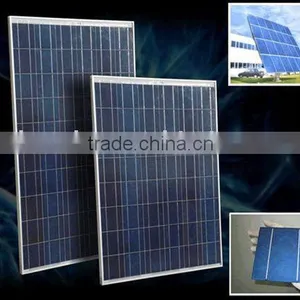

135W-190W Poly Solar Module

Name: 135W-190W Poly Solar Module
Brand: Hilight Solar
SKU: 127766095

US$ 0.9 - 1.3 MOQ: 2 Pieces

Key Specifications

Place of Origin:

China

Brand Name:

Hilight Solar

Model Number:

HS-P-135WP-190WP

Shandong Hilight-Solar Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name Hilight Solar

Model Number HS-P-135WP-190WP

Material Polycrystalline Silicon

Size 1482x675x35mm,1320x992 x40mm,1482x992 x40mm

Number of Cells 36,48,54 pcs

Max. Power 280 W

Specifications

Solar Module
Power range:1W-280W
Warranty:25 years lifetime
Good delivery time & Competitive Price
Certificate:TUV,UL,CE

Polycrystalline Silicon Solar Module/Solar Panel Technical Parameter

ITEM	Polycrystalline Silicon Solar Panel
Maximum power (Wp)	135w	140w	150w	160w	170w	175w	180w	185w	190w
Maximum power voltage (V)	17.70	18.30	22.70	22.90	23.50	23.90	25.68	26.10	26.50
Maximum power current (A)	7.63	7.65	6.61	7.00	7.20	7.32	7.01	7.08	7.17
Open circuit voltage (V)	21.30	21.95	28.20	28.80	29.00	29.00	32.51	32.54	32.56
Short circuit current (A)	8.68	8.25	7.40	7.60	8.00	8.05	7.70	7.80	7.97
Size of solar cells (mm)	156x156
Number of cells (Pcs)	36 PCS ( 4X9 )		48 PCS ( 6X8 )				54 PCS ( 6X9 )
Size of module (mm)	1482x675x35		1320x992 x40mm				1482x992 x40mm
Brand Name of Solar Cells	CEEG or JA SOLAR
Maximum system voltage (V)	1000
Temperature coefficients of Isc (%)	+ 0.1/ °C
Temperature coefficients of Voc (%)	-0.38/ °C
Temperature coefficients of Pm (%)	-0.47/ °C
Temperature coefficients of Im (%)	+0.1/ °C
Temperature coefficients of Vm (%)	-0.38/ °C
Temperature Range	-40°C~+80°C
Surface Maximum Load Capacity	60m/s(200kg/sq.m)
Allowable Hail Load	steel ball fall down from 1m height
Weight per piece (kg)	12.0		17.0	15.0	15.0		17.0
Junction Box Type	Junction box with TUV certificate
Length of Cables (mm)	900mm
Cell Efficiency (%)	15.40%	15.98%	14%	13.7%	14.55%	14.98%	13.70%	14.01%	14.46%
Module Efficiency (%)	13.50 %	13.99 %	13 %	12.2%	13.0%	13.36%	12.34%	12.68%	13.03%
