100% Guarantee Quality Solar Panel Price India 230w

Name: 100% Guarantee Quality Solar Panel Price India 230w
Brand: Hilight, Hilight
SKU: 127764993
Availability: InStock

US$ 0.45 - 0.69 MOQ: 10 Watts

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Hilight, Hilight

Model Number:

HSPV-P-230W, HSPV-P-230W

Shandong Hilight-Solar Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name Hilight, Hilight

Model Number HSPV-P-230W, HSPV-P-230W

Material Polycrystalline Silicon

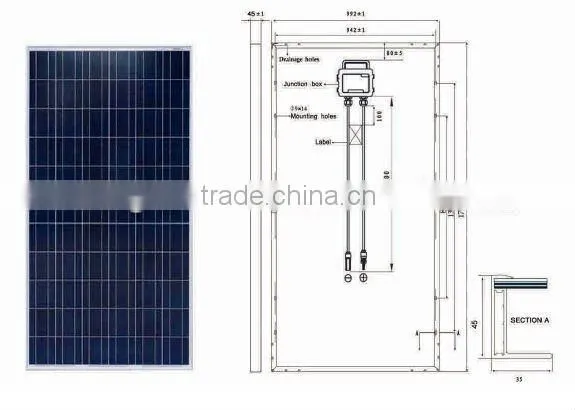

Size 1790*992*45mm

Number of Cells 66

Max. Power 235W

----- Why Choose HSPV Solar Panel Price India---------

A. Professional Manufacturers Of Mono & Poly Silicon PV Module

B. High Conversion Efficiency Solar Module

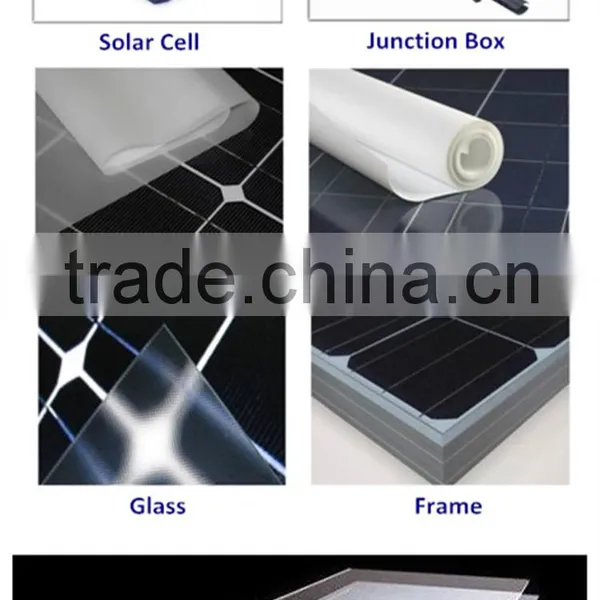

C. High transmission rate and low iron tempered glass

D. Anti-aging EVA, high frame resistant TPT to laminate and anodized aluminum alloy frame

E. Long life, Easy installation, high wind and hail impact resistance etc advantage.

F. Be resistant to atmospheric exposure and effects of delamination

G. Strict quality control and power classification of modules

H. Ready to use with junction box, cabling and connectors

I. ISO,CEC, CE , TUV ,IEC/EN61215 IEC/EN61730

J.25years Warranty , 90% of original efficiency in 10years, and 80% in 25years.

----- Specification of 230w Solar Panel Price India-------

Module Type	HSPV225Wp-156-60P	HSPV230Wp-156-60P	HSPV235Wp-156-60P
Maximum power at STC (Pmax)	225w	230w	235w
Maximum power voltage (Vmp)	29.5	29.6	29.7
Maximum power current (Imp)	7.63	7.77	7.91
Open circuit voltage (Voc)	35.8	35.8	35.8
Short circuit current (Isc)	8.34	8.57	8.70
Nominal Operating Cell Temperature	45 ± 2°C
Temperature coefficients of Isc	+0.049% /°C
Temperature coefficients of Voc	-0.340% /°C
Temperature coefficients of Pmax	-0.430% /°C
Standard Test Conditions (STC)	Irradiance 1000W/m2, Module temperature 25°C, Air Mass (AM)=1.5
Power Production Tolerance	± 3%
