Polycrystalline 235w60p Solar Module/solar Panels

FOB Price

US$ 0.52 - 0.78 / Watt

50 Watts(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

-----Why Choose 235Wp Polycrystalline Solar Panel---------

A. Professional Manufacturers Of Mono & Poly Silicon PV Module

B. High Conversion Efficiency Solar Module

C. High transmission rate and low iron tempered glass

D. Anti-aging EVA, high frame resistant TPT to laminate and anodized aluminum alloy frame

E. Long life, Easy installation, high wind and hail impact resistance etc advantage.

F. Be resistant to atmospheric exposure and effects of delamination

G. Strict quality control and power classification of modules

H. Ready to use with junction box, cabling and connectors

I. ISO,CEC, CE , TUV ,IEC/EN61215 IEC/EN61730

J.25years Warranty , 90% of original efficiency in 10years, and 80% in 25years.

----- specification of 235Wp Polycrystalline Solar Panel------

Module Type	HSPV230Wp-156-60P	HSPV235Wp-156-60P	HSPV240Wp-156-60P
Maximum power at STC (Pmax)	230w	235w	240w
Maximum power voltage (Vmp)	29.6	29.7	29.8
Maximum power current (Imp)	7.77	7.91	8.05
Open circuit voltage (Voc)	35.8	35.8	36.0
Short circuit current (Isc)	8.57	8.70	8.72
Nominal Operating Cell Temperature	45 ± 2°C
Temperature coefficients of Isc	+0.049% /°C
Temperature coefficients of Voc	-0.340% /°C
Temperature coefficients of Pmax	-0.430% /°C
Standard Test Conditions (STC)	Irradiance 1000W/m2, Module temperature 25°C, Air Mass (AM)=1.5
Power Production Tolerance	± 3%

All the photos are live-action shooting !

-----Our Products---------

-----Our factory--------

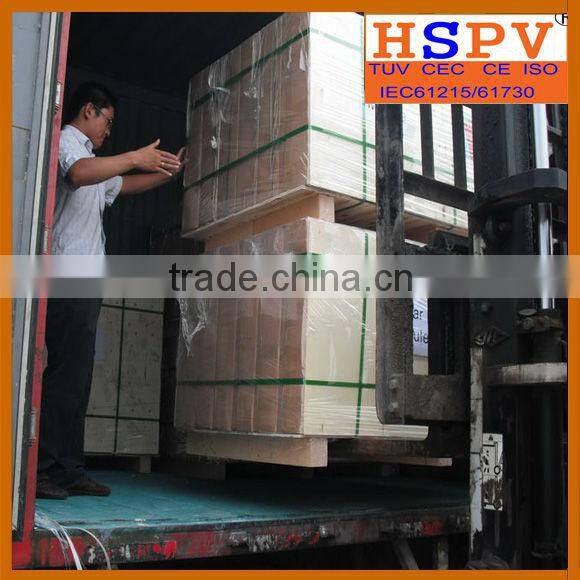

-----Package---------

----- Certificates of 235Wp Polycrystalline Solar Panels---------

-----Kindly contact me if there is any question---------
