Most Popular DC12v-24v 2.4g Host Wifi Controller led master controller zigbee controller
Summarization
Zigbee master controller is the major part of the multiple point controller system, it adopts Zigbee intelligent ad-hoc network, technology for recovery by self and Zigbee standard protocol. Through the Android and iOS system client software, it can achieve the whole controller synchronization controlled or single point controlled.
The controller has various of static and dynamic modes, not only can be controlled by the client software, but also can achieve light dimming by button control, with the characteristic of simple operation, flexible control and convenient installation. This mades the LED control more convenient, more humanized, to provide users with colorful intelligent lighting experience.
Technical Parameters
Software Parameters
a) Name: Touch Home+
b) Operation platform: ios(iphone, ipad), Android ( phone, pad)the device must with wifi function
c) Language: English, Chinese
d) Category: communication
Controller Technical Parameters
Working voltage: DC12~24V
Working temperature: -20-60°C
Load: <1W (12V)
MAX nodes:200
Communication distance: Less than 50m
WiFi: 2.4G 802.11 b/g/n TX Max.+20dBm RX Max.-89dBm
ZigBee: 2.4G 802.15.4 TX Max.+1dBm RX Max.-91dBm
Net weight:50g
Gross weight :160g
External dimension: L80 * W35 * H80 (mm)
Package size: L105 * W64 * H40 (mm)

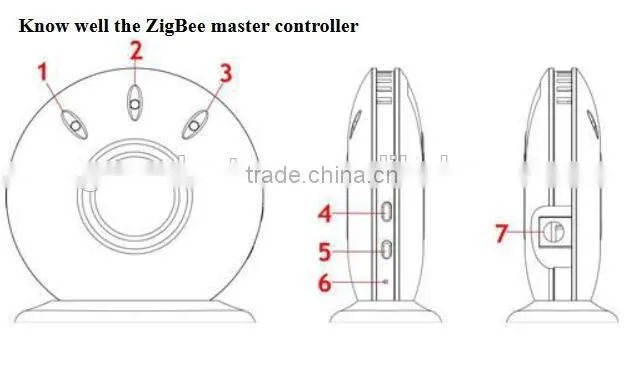

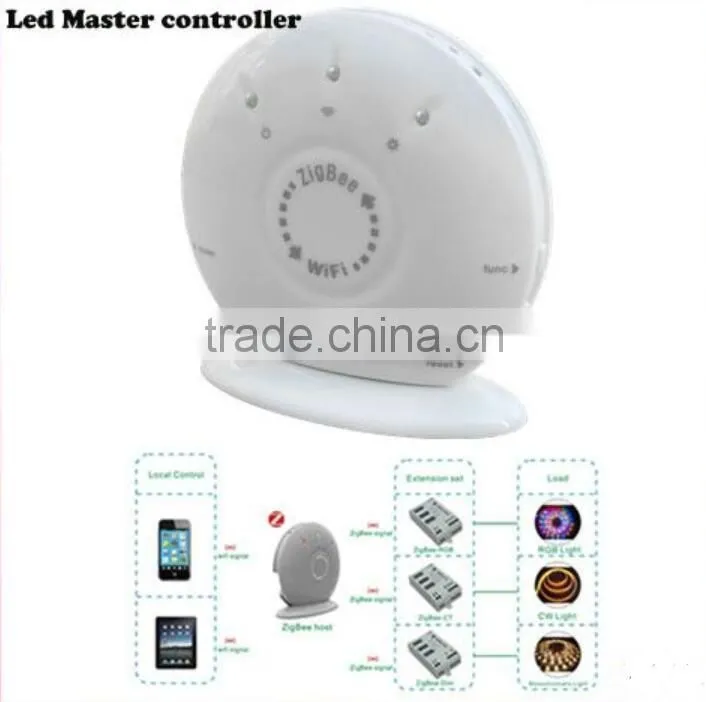

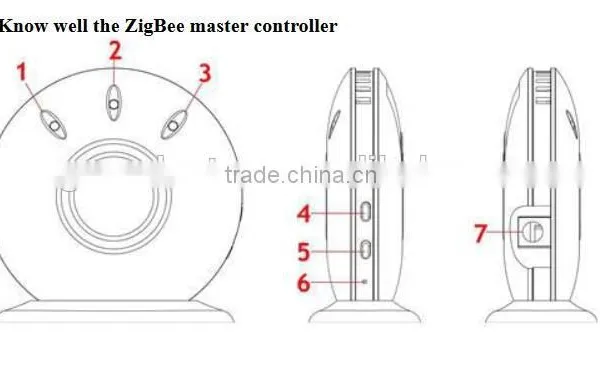

Product pictures for DC12-24V Zigbee Master Wifi Controller For Led Bulb Strips Light
1.Payment terms: 30% TT before production, full payment before delivery.
2.Delivery time:5-30days after payment.
3.Shipping port: Shenzhen or buyer’s customized port.
4.Tracking number will be sent to you once we ship out the goods.
5.Disounts are negotiable according to large quantities.
6. 1piece/color box,then seveval in export carton . led
1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English.
3.OEM&ODM, any your customized lightings we can help you to design and put into product.
4.Distributoership are offered for your unique design and some our current models.
5.Protection of your sales area, ideas of design and all your private information.
Delivery time:
1. Samples: 3-7 working days;
2. Bulk order: 7-15 working days.
Warranty:
2-3 years warranty
Shipping Method:
1. By Express: DHL, UPS, Fedex, a fast and safe way for shipping, normally 3-5 working days for delivery;
2. By Air: In some area, the shipping cost by air is more favorable than by Express; 5-7 days for delivery;
3. By Sea: the most economic shipping method, but cost longer shipping time; large quantity, heavy and not
urgent goods can choose this way.
4. Your shipping agent or forwarder.
After-Sale Service:
1. Quick reply on customers'questions;
2. If anything goes wrong with the products'quality, we will replace for you free and undertake the shipping cost.
3. Make you a happy ordering.
Quality Control:
100% of the lamps will be tested and keep lighting for 24 hours to test its quality reliability , and we will also test its;
temperature after 24 hours’ lighting.Then after it is cool we again test 100% of the lamps to see if it still work well;
Each lamp should pass all these QC procedures before shipping to customer.
Delivery Detail:
We ship goods by UPS/DHL/FEDEX/TNT express which takes 3~ 5 days to arrive, or by air cargo which takes about one week to arrive .
or by sea which takes about one month to arrive , depending on your actual requirements.
Our services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours;
2. We own well-tranied and passional sales & after- sale services who can speak fluent Engligh language;
3. We offer OEM services. Can print your own logo on product , can customize the retail box pack
ndl
