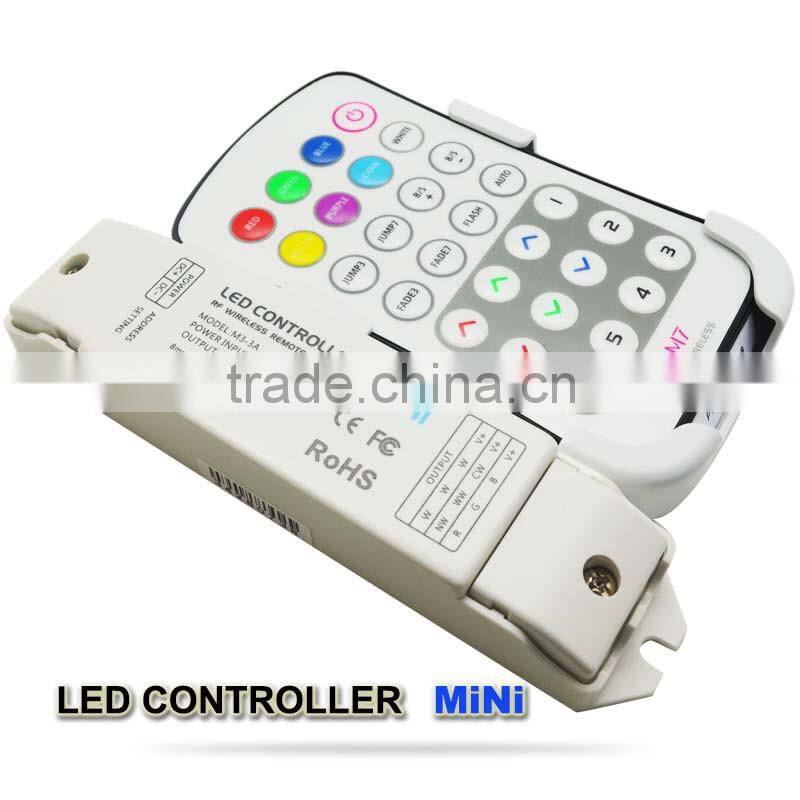

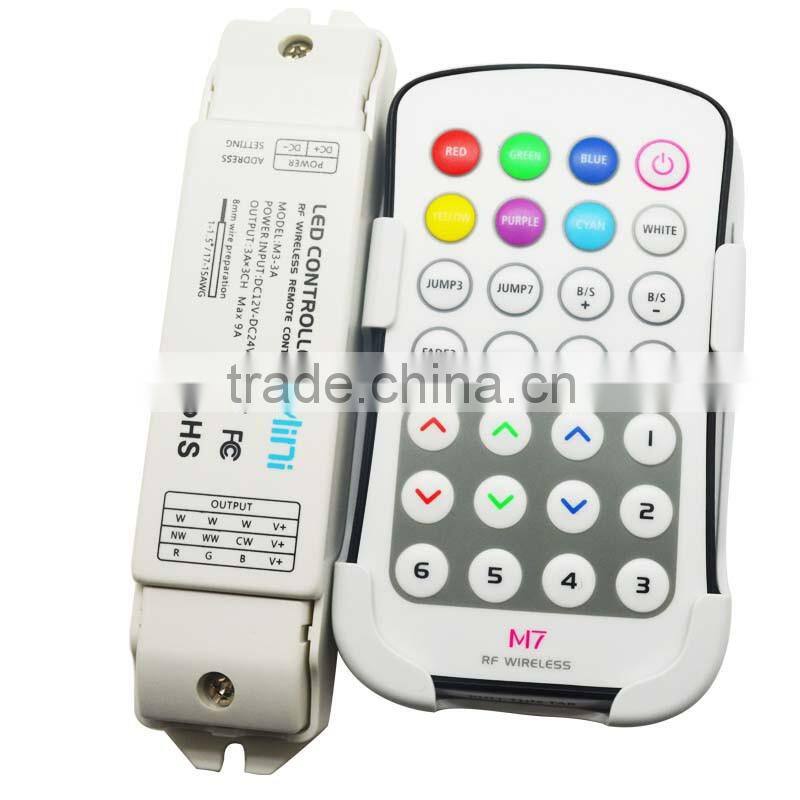

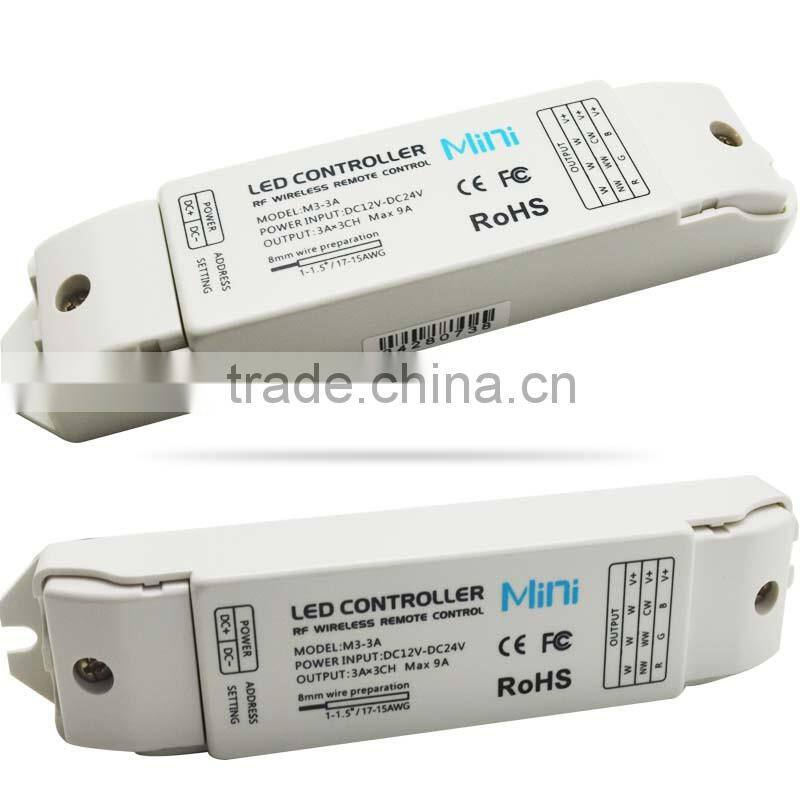

Hot sale Mini  RGB led strip Controller M7 remote with M3-3A Receiving controller

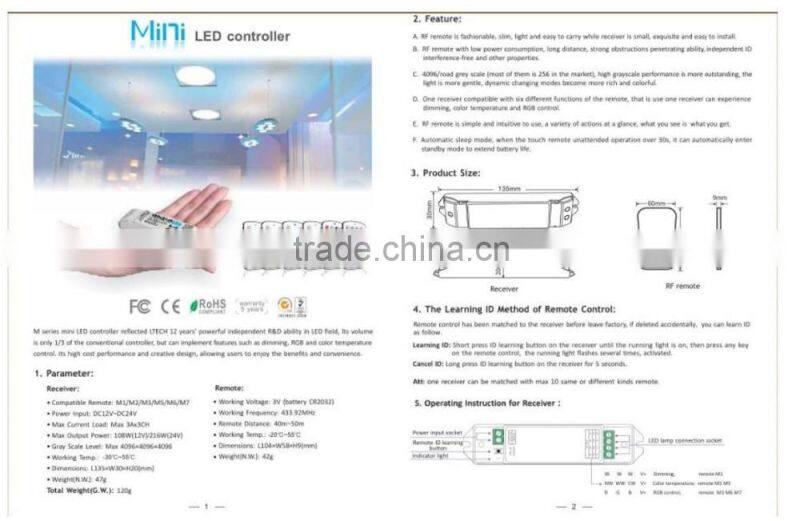

Product introduction:

• Extended new series products are based on the Mini series controllers, increase RGBW 4CH control, workable for dimming, Color temperature, RGB and RGBW. And the output power of receiver is higher.
• 4096 / road grey scale (most of them is 256 in the market), high grayscale performance is more outstanding, the light is more gentle, dynamic changing modes become more rich and colorful.With innovative technology design: One receiver compatible with seven different functions of the remote control (patent technology), that is use one receiver can experience dimming, color temperature and RGB controlled, which can satisfied the different demands of client.
•  series with extremely high performance and creative design. They can experience humanized design concept when traders in sales, engineers in installation and the clients in using.

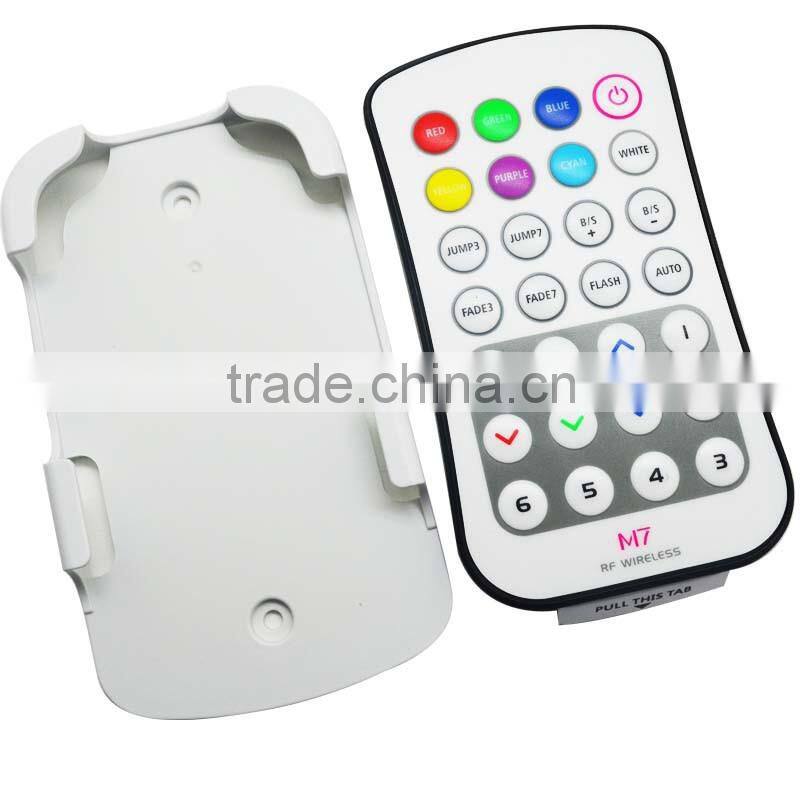

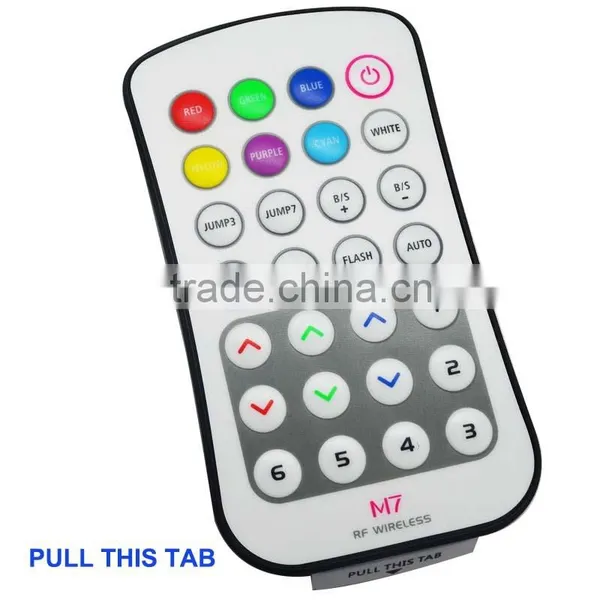

M1, M2, M3, M4, M6, M7 ,M8 Remote Control

• Working voltage: DC3V(Battery CR2032,NOT INCLUDED )
• Working Frequency:433.92 MHz
• Remote Distance:40-50m
• Working Temp:-20℃~55℃
• Dimensions:L104×W60×H9mm
• Weight (N.W.):42g

M4-5A CV Receiving controller

• Power input:DC5V-DC24V
• Max Current load:5A ×4CH Max 20A
• Max Output power:100W/240W/480W(5V/12V/24V)
• Compatible remote:M1/M2/M3/M4/M6/M7/M8
• Working Temp.:-30℃~55℃
• Dimensions:L175×W44×H30mm
• Weight (N.W.):125g
