Product Details
| Place of Origin | Shandong, China | Brand Name | Hilight or OEM | |
| Model Number | HSPV100Wp156-36P | Material | Polycrystalline Silicon | |

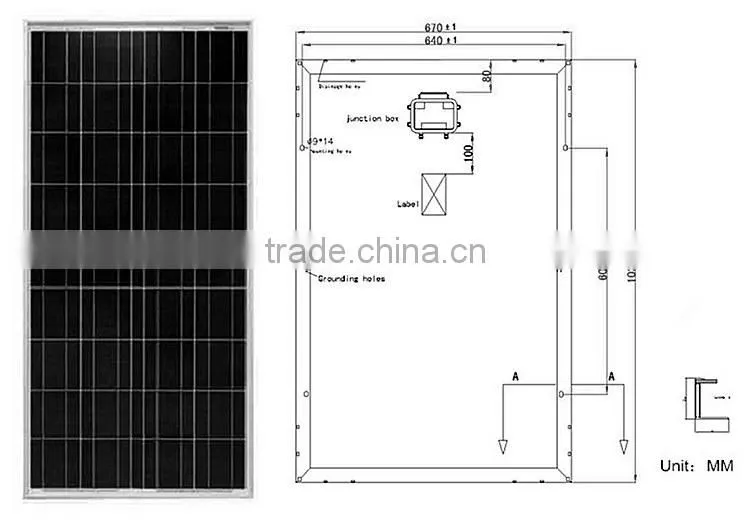

| Size | 1030X670X35 mm | Number of Cells | 36PCS(4X9) | |
| Max. Power | 100Wp |
Product Description

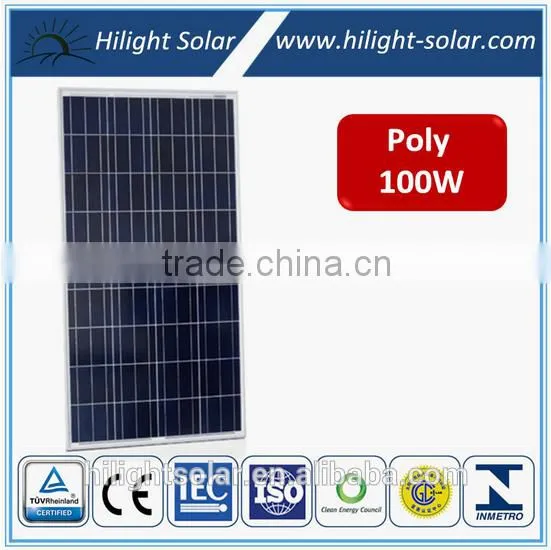

Hilight poly 12v best price power 100w solar panel 100w with TUV IEC CE CEC INMETRO ISO certificates
Solar panel, Panel Solar , Solar Panel price, Solar panel system,
Solar panel manufactures in China, 1000 watt solar panel,
500 watt solar panel, Solar panel price India, Solar panel price list, Monocrystalline solar panel, low price mini solar panel
| Module Type | HSPV100Wp156-36P ( solar panel manufacturers in China ) |
| Maximum power at STC (Pmax) | 100w |
| Maximum power voltage (Vmp) | 17.6 |
| Maximum power current (Imp) | 5.68 |
| Open circuit voltage (Voc) | 21.8 |
| Short circuit current (Isc) | 6.12 |
| Nominal Operating Cell Temperature | 45 ± 2°C |
| Temperature coefficients of Isc | +0.049% /°C |
| Temperature coefficients of Voc | -0.340% /°C |
| Temperature coefficients of Pmax | -0.430% /°C |
| Standard Test Conditions (STC) | Irradiance 1000W/m2, Module temperature 25°C, Air Mass (AM)=1.5 |
| Power Production Tolerance | 0~ +5W |

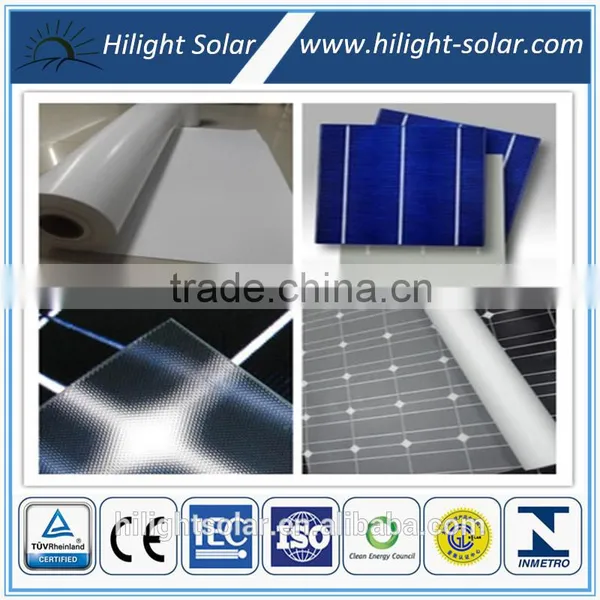

| Solar Cell | 36(4x9) Poly solar cells 156 x 52 mm |
| Front Cover | 3.2 mm thick, tempered glass |
| Back Cover | TPT (Tedlar-PET-Tedlar) |
| Encapsulant | EVA (ethylene vinyl acetate) |

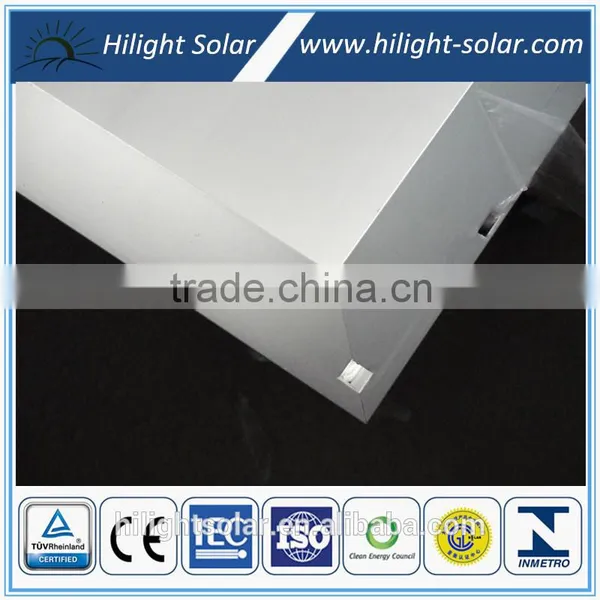

| Frame | Double-layer anodized aluminium alloy |
| Junction Box | IP65 rated |
| Cables/Connectors | 4.0 mm*mm 900mm / MC4 or compatible connectors |
| Maximum System Voltage | DC1000V (IEC) |
| Maximum Series Fuse | 15 A |
| Operating Temperature | -40℃~+85℃ |
| Storage Temperature | -40℃~+85℃ |
| Max. Wind Load / Max. Snow Load | 2400Pa / 5400Pa |
| Application Class | Class A |
| Module Area (m*m) | 0.69m*m |
| Packing configuration | 700 Pcs./ 20GP; 1540 Pcs./ 40GP |

Customers packing requirement is acceptable.
1.Does HILIGHT Solar offer PV solutions for commercial and industrial utilities?
Yes, HILIGHT Solar offers the most cost effective PV solutions for commercial and industrial utilities seeking to meet renewable portfolio standards requirements. Please contact our sales and product management team for more information.
2.Does HILIGHT Solar sell to distributors or wholesalers?
Yes, HILIGHT Solar currently is selling its products through distributors, resellers, or wholesalers. And agent are wanted now. For more information, please contact our sales and management team.
3.Does HILIGHT Solar offer a warranty for its solar modules?
HILIGHT Solar provides a power output warranty for 25 years subject to terms and conditions and a materials and workmanship warranty for five to ten years covering defects in materials and workmanship under normal use and service conditions.
4.What are the possible problems with solar panels and how can I prevent them?
Solar panel failure is most often caused by water damage to the panel, sealant, or connections. To prevent damage or failure, mount the panel carefully. Be sure not to fix it horizontally, which encourages water collection in the frame. Also, allow for a sufficient air gap beneath the panel. Keeping your panel dry and clean will ensure efficient, maximum output.
5.Are solar electric systems safe?
Yes. Solar cells are mostly silicon, the primary component of sand. There is no exhaust and no toxic materials to leak out of the system. The electricity coming through the inverter is just like the electricity coming from household wall sockets; you should use the same care you would with utility power. All components are approved for utility interconnection and are installed according to standard construction practices.
