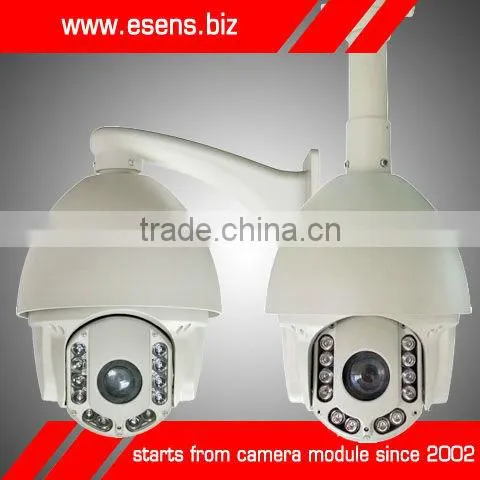

Help Center150m IR Network High Speed Dome, IP PTZ Camera
Related Products
-
Onvif 2.1 Megapixel 1080P 4X IR Dome IPCUS$ 60 - 100MOQ: 1 Piece -
2.7" Touch Screen LCD, 1080P HD, 145 Degree View Angle 14M Lens Car Blackbox DVR Dash Camera With GPS ECC93US$ 300 - 400MOQ: 5 Sets
-
Good Price IP66 Weather Proof High Speed PTZ CameraUS$ 100 - 150MOQ: 1 Unit
-
36X Optical CCTV CameraUS$ 88 - 100MOQ: 1 Unit
-
ESENS 18X AF Lens 1080P HD no Latency Video HD-SDI Box CameraUS$ 100 - 150MOQ: 1 Piece
Since 2005. Quality approved by over 100 clients. With monthly output of 10,000pcs.
18X Zoom Lens
IR CUT
SONY CCD+ TI DSP : 720P HD (TI Davinci DM365); 1080P HD (TI Davinci DM368)
| Model | EIPD06T |
| Pan Range/Speed | 360° endless @ 0.6°-200°/s |
| Tilt Range/Speed | 0°-90°(Auto Flip) @ 0.8°-75°/s |
| Manual Speed | Support, Hi-Low-Middle adjustable |
| Optical Zoom | Support |
| Programmable Preset Position | 220 |
| Patrol | 8 |
| Pattern | 4 |
| Scan between two presets | Support |
| PTZ Position Display | ON/OFF switchable |
| Park Action | Support |
| Alarm | (optional) 2 inputs, 2 outputs |
| Monitor Output | 1Vp-p Composite Output(75Ω/BNC) |
| Menu | English |
| RS485 Protocols | PELCO-D, PELCO-P, HIKVISION, self-adaptive |
| CCD Automatic Diagnosis | Support Sony, Hitachi, LG, CNB, Canon |
| Power Supply/Consumption | DC 24V, Max. 27W in night; 6W Max. in daytime |
| Working Temperature/Humidity | -40°C ~ 65°C, ≤90%RH (frostless) |
| Protection Grade | TVS3000V, lightning protection, surge protection and voltage transient protection; Outdoor dome camera: IP66 |
| Dimension | 300x300x450 mm |
| Weight | 5.5KG |
| Main Features | ||
| 1. 1/3" SONY 1.3M pixels and 2.1M pixels HD CMOS, Progressive Scan | ||
| 2. 1/3" HD Lens, Auto IRIS, IRCUT Day & Night Auto Switch | ||
| 3. Automatic slow shutter, 2D noise reduction | ||
| Specification | 1/3" CMOS 18X HD Zoom Camera Module | |
| Zoom Camera | 720P | 1080P |
| Model | FTZ18H72 | FTZ18H108 |
| Communication mode | RS232 | |
| Port | LVDS-30p (6300 compatible) | |
| LVCMOS-36pFPC (YCbCr 4:2:2) 110 120 compatible | ||
| Communication Protocol | HITACHI / SONY VISCA | |
| Image sensor | 1/3" CMOS | |
| Effective pixels | 1.3M 1280*720 pixels | 2.1M 1920*1080 pixels |
| Scan Mode | progressive scan | |
| Day & Night Switch | Colour/ B&W /Auto | |
| Mini.Illumination | Color: 0.1Lux W&B: 0.01Lux | |
| Sync System | Inter-sync | |
| Video output | Digital Signal | |
| SNR | >=50dB(AGC OFF) | |
| Lens | ||
| IRCUT | Day/Night Auto Switch | |
| AUTO IRIS | Support | |
| FNO./Focal Length | 18X, f=4.7mm~84.6mm F1.6(W)~2.7(T) | |
| FOV | H: 54.8°(W)~3.4°(T) V: 41°(W)~2.5°(T) | |
| Functions | ||
| Exposure Mode | Auto/Manual | |
| AWB | Auto/Indoor/Outdoor/Manual | |
| Focus Mode | Auto/Manual | |
| AGC | Auto/Manual | |
| Picture Effects | Auto/Color/B&W/Negative | |
| Digital Zoom | -- | |
| Backlight Compensator | ON/OFF | |
| Freeze | -- | |
| Mirror Image | Support(MIR and MIV) | |
| Rollovers | Support | |
| Black screen | -- | |
| WDR | D-WDR | |
| DNR | 2D digital noise reduction | |
| Electronic Shutter | 1/30s~1/10,000s | |
| Digital Slow Shutter | -- | |
| Contrast | Adjustableable | |
| Saturation | Adjustableable | |
| Through Fog Function | Support | |
| Motion Detection | -- | |
| Privacy Shelter | -- | |
| Edge Ill. Compensation | Support | |
| General Specifications | ||
| Unit size (W*H*L) | 50*60*90 mm | |
| Working condition | -10°C~50°C, 10%RH~60%RH | |
| Reserve condition | -20°C~60°C, 10%RH~80%RH | |
| Power Supply | DC 12V±10% | |
| Power consumption | 4W MAX | |
| Net Weight | 270g | |
We are professional manufacturer for these products:
1. Zoom Camera Module
2. PTZ Dome Camera
3. Video Conference Camera
4. IP Camera
5. Car Blackbox DVR Camcorder
Backuped by a group company with yearly turn over more than RMB 800 million, we invested heavily in security camera business since year 2003. As the pioneer of zoom camera module, we are well named in this industry in China.
We have long time OEM & ODM experience. Our products are well known for stable quality and good price. Quality is our top priority for production.
As a solution provider, manufacturer and distributor, with more than 20+ engineers, we are not like the screw-driver powered factories. You no need to be tired for quality problems and unprofessional communications.
Fitech invested companies:
- Guangzhou ESENS Electronic Co., Ltd.
- Shenzhen Union Digital Technology Co., Ltd.
- Chiptown International (Holdings) Limited
We already invested more than USD 6.5 Million on the camera business, so you no need worry about to have trouble to trade with a short life company.
