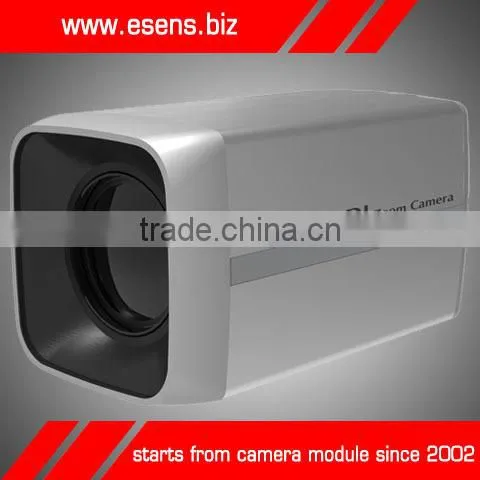

Help CenterESENS 18X AF Lens 1080P HD no Latency Video HD-SDI Box Camera
Related Products
-
SONY Effio CCD 650TVL 36X AF Zoom Camera Module for PTZ Camera / CCTV Camera / High Speed DomeUS$ 50 - 100MOQ: 5 Units -
Good Price Low Price 1.0 Megapixel 720P IP Network HD PTZ Camera, HD IP PTZ CameraUS$ 100 - 2,000MOQ: 1 Piece
-
2.0 Megapixel 1080P 50M IR HD-SDI PTZ Camera, HD SDI IR High Speed Dome CameraUS$ 200 - 350MOQ: 1 Piece
-
18X 720P 50FPS 60FPS SONY Exmor CMOS Zoom Camera Module for PTZ Dome Camera / PTZ Camera / High Speed Dome Camera / CCTV CameraUS$ 40 - 60MOQ: 10 Pieces
-
Sony CMOSHD SDI Camera ,10x Optical,1080p HD SDI Box CAMERA in Cctv CameraUS$ 50 - 100MOQ: 1 Piece
We offer HD/FHD video solution as below:
1. IP HD Video
2. HD-SDI
3. HD-SDI to HDMI
Refer to us for more info
4 options for Internal module as below
| Specification | 1/3" CMOS 10X HD Zoom Camera Module | 1/3" CMOS 18X HD Zoom Camera Module | ||
| Zoom Camera | 720P | 1080P | 720P | 1080P |
| Model | FTZ10H72 | FTZ10H108 | FTZ18H72 | FTZ18H108 |
| Communication mode | RS232 | |||
| Port | LVDS-30p (6300 compatible) | |||
| Communication Protocol | HITACHI / SONY VISCA | |||
| Image sensor | 1/3" CMOS | |||
| Effective pixels | 1.0M 1280*720 pixels | 2.1M 1920*1080 pixels | 1.0M 1280*720 pixels | 2.1M 1920*1080 pixels |
| Scan Mode | progressive scan | |||
| Day & Night Switch | Colour/ B&W /Auto | |||
| Mini.Illumination | Color: 0.1Lux W&B: 0.01Lux | |||
| Sync System | Inter-sync | |||
| Video output | Digital Signal | |||
| SNR | >=50dB(AGC OFF) | |||
| Lens | ||||
| IRCUT | Day/Night Auto Switch | |||
| AUTO IRIS | -- | Support | ||
| FNO./Focal Length | 10X F/2 f=5mm~50mm | 18X, f=4.7mm~84.6mm F1.6(W)~2.7(T) | ||
| FOV | H: 51.8°(W)~5.86°(T) V: 39.1°(W)~4.4°(T) | H: 54.8°(W)~3.4°(T) V: 41°(W)~2.5°(T) | ||
| Functions | ||||
| Exposure Mode | Auto/Manual | |||
| AWB | Auto/Indoor/Outdoor/Manual | |||
| Focus Mode | Auto/Manual | |||
| AGC | Auto/Manual | |||
| Picture Effects | Auto/Color/B&W/Negative | |||
| Digital Zoom | -- | |||
| Backlight Compensator | ON/OFF | |||
| Freeze | -- | |||
| Mirror Image | Support(MIR and MIV) | |||
| Rollovers | Support | |||
| Black screen | -- | |||
| WDR | D-WDR | |||
| DNR | 2D digital noise reduction | |||
| Electronic Shutter | 1/30s~1/10,000s | |||
| Digital Slow Shutter | -- | |||
| Contrast | Adjustableable | |||
| Saturation | Adjustableable | |||
| Through Fog Function | Support | |||
| Motion Detection | -- | |||
| Privacy Shelter | -- | |||
| Edge Ill. Compensation | Support | |||
| General Specifications | ||||
| Unit size (W*H*L) | 38.6*41*64.6 mm | 50*60*90 mm | ||
| Working condition | -10°C~50°C, 10%RH~60%RH | |||
| Reserve condition | -20°C~60°C, 10%RH~80%RH | |||
| Power Supply | DC 12V±10% | |||
| Power consumption | 4W MAX | |||
| Net Weight | 100g | 270g | ||
Visit for more info. We are professional manufacturer for these products:
1. Zoom Camera Module
2. PTZ Dome Camera
3. Video Conference Camera
4. IP Camera
5. Car Blackbox DVR Camcorder
Backuped by a group company with yearly turn over more than RMB 800 million, we invested heavily in security camera business since year 2003. As the pioneer of zoom camera module, we are well named in this industry in China.
We have long time OEM & ODM experience. Our products are well known for stable quality and good price. Quality is our top priority for production.
As a solution provider, manufacturer and distributor, with more than 20+ engineers, we are not like the screw-driver powered factories. You no need to be tired for quality problems and unprofessional communications.
Fitech invested companies:
- Guangzhou ESENS Electronic Co., Ltd.
- Shenzhen Union Digital Technology Co., Ltd.
- Chiptown International (Holdings) Limited
We already invested more than USD 6.5 Million on the camera business, so you no need worry about to have trouble to trade with a short life company.
