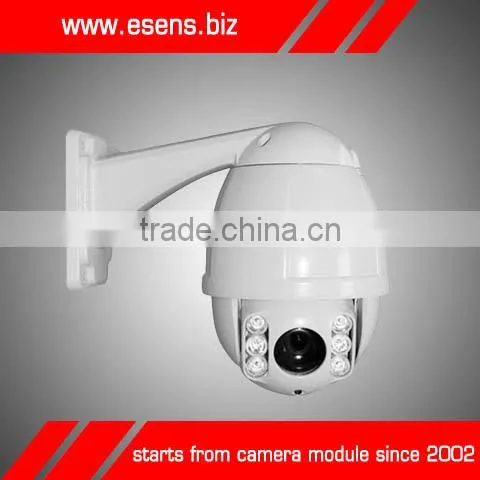

2.0 Megapixel 1080P 50M IR HD-SDI PTZ Camera, HD SDI IR High Speed Dome Camera

2.0 Megapixel 1080P 50M IR HD-SDI PTZ Camera, HD SDI IR High Speed Dome Camera thumbnail-1
2.0 Megapixel 1080P 50M IR HD-SDI PTZ Camera, HD SDI IR High Speed Dome Camera photo-1
US$ 200 - 350 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
ESENS
Model Number:
ESD80T-10H108
Contact Supplier Request Quote Chat Now
Guangzhou Panyu Pearl Clock & Watch Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name ESENS
Model Number ESD80T-10H108
Type Digital Camera
Style Dome Camera
Sensor CMOS
Technology Pan / Tilt / Zoom
Special Features Other, HD-SDI
• SDI output support SMPTE 292M standard
• Smart IR enable the picture free of noise for distance as long as 10m.
• Max. 48 centigrade internal temperature after 4 hours working.
• Build-in radiator reduced the temperature greatly and enhanced anti-fog ability
• Stable current and smart temperature control tech extended the IR LED working life to be as long as 40 thousand hours and infrared attenuation to be 5% only in 3 years.
• Operation protection in low temperature, specially designed for cold area.
• External DIP configuration for add. & bps setting
• IP66, 4000V lighting proof, wave proof & surge-proof
• Configuration auto save function on power OFF

Model    ESD80T
Senser    1/3" SONY CMOS
FPS    29.97fps@1080P/59.94fps@1080i
DAY/NIGHT Mode    IR-CUT COLOR/B&W
Pan/Tilt Range    PAN 0°~360° continously; Tile 0°~92°
Pan/Tilt Speed    Pan(0.01°~180°/S) Tilt(0.01°~120°/S)
Preset    220
Auto Scan    4
Patrol    4
Communication Protocol    RS485 Protocols Pelco-P/Pelco-D auto config.
Video OUT    1*HD-SDI,SMPTE274 standard
POWER Supply    DC15V/4A
Consumption    Max. 50W

Internal is moduel #FTZ18H108, the 18X 1080P HD Module. Other options as below.

Model No. FTZ10H72 FTZ10H108 FTZ18H72 FTZ18H108
Resolution 720P 1080P 720P 1080P
Communication mode RS232 RS232
Interface YUV-36pFPC(YCbCr 4:2:2)/LVDS-30p YUV-36pFPC(YCbCr 4:2:2)/LVDS-30p
Communication Protocol HITACHI / SONY VISCA HITACHI / SONY VISCA
Day & Night Color / B&W / Auto Color / B&W / Auto
Sync System Inter-sync Inter-sync
Mini.Illumination Color: 0.1 Lux; IR B&W: 0.01 Lux Color: 0.1 Lux; IR B&W: 0.01 Lux
Video output YCbCr 4:2:2 YCbCr 4:2:2
SNR ≥50dB(AGC OFF) ≥50dB(AGC OFF)
Image Sensor 1/3" SONY CMOS 1/3" SONY CMOS
Effective pixels 1.0M 720P 2.1M 1080P 1.0M 720P 2.1M 1080P
Scan Mode progressive scan progressive scan
IRCUT Day/Night Auto Switch Day/Night Auto Switch
AUTO IRIS -- Support
FNO./Focal Length F/2 f=5mm~50mm f=4.7mm~84.6mm F1.6(W)~2.7(T)
FOV (W~T) H:51.8°~5.86° V:39.1°~4.4° H:54.8°~3.4° V:41°~2.5°
OSD Menu English English
Exposure Mode Auto/Manual Auto/Manual
AWB Auto Auto
Focus Mode Auto/Manual Auto/Manual
AGC Auto Auto
Picture Effects Auto/Color/B&W/Negative Auto/Color/B&W/Negative
Mirror Image Support Horizental + Vertical Support Horizental + Vertical
Image Rollovers Support Support
WDR D-WDR D-WDR
DNR 2DDNR 2DDNR
Electronic Shutter 1/30s~1/10,000s 1/30s~1/10,000s
Contrast Adjustable Adjustable
Saturation Adjustable Adjustable
Fog-through Support Support
Edge Ill. Compensation Support Support
Unit Size 38.6(W)* 41(H)* 64.6(L) mm 50(W)* 60(H)* 90(L) mm
N.W. 100g 270g
Working Condition -10°C~50°C,10%RH~60%RH -10°C~50°C,10%RH~60%RH
Power Supply DC 12V±10% DC 12V±10%
Power consumption 2.0W MAX 2.5W MAX
