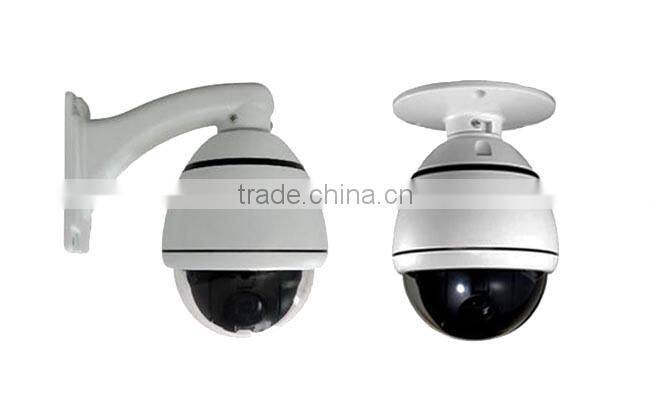

milestone compatible PTZ Camera 10X optical zoom camera 600tvl 4-inch Mini High-speed Dome PTZ Cameras,CCTV CAMERA indoor / outdoor installations 12V DC/1A Power Supply
♣.Aluminium alloy Shell,Size: 4 inch.Indoor Camera
♣.Built-in Full Screen Chinese/English OSD Menu,Camera Name and Preset Name can be setted,
coordinate display, support Site Address modification
♣.Auto focusing and auto BLC
♣.DC12V2A±10%,
♣.ONE years Warranty
High Speed Dome |
|
Item |
|
Dome Model |
ESD04H |
Camera Module |
|
Featuers |
* 4" metal case |
Pan |
360° endless @ 0.6-200°/s |
Tile |
0-90°(Auto Flip) @ 3.5-60°/s |
Manual Operat. |
High / Middle / Low |
PTZ position display |
ON / OFF |
Digital Zoom |
Support, change speed based on zoom |
2 presets Scan |
Support |
Preset |
220 |
Patrol |
8 |
Pattern Scan |
4 |
Park action |
Support |
Private Zone |
YES |
A/V output |
CVBS (1Vp-p-p 75 Ω BNC) |
OSD Menu |
English |
RS485 protocol |
Pelco-D/P |
Alert |
-- |
Power Supply |
DC 12V 2A |
Power Consumption |
20W Max |
Working Condition |
-20°C~60°C,less than 90%RH (frostless) |
Weather Proof |
TVS3000V lightning protection, surge protection and voltage transient protection, IP66 outdoor |
Bracket Options |
Wall-mount / Hanging-mount |
Package Size |
240*240*245 |
G.W. (kgs) |
1.5 |
Equiped with 10X optical zoom 650tvl camera module;
Model No. |
FTZ10P60 |
Resolution |
600TVL |
Communication mode |
RS232C |
Signal system |
PAL/NTSC |
Communication Protocol |
SONY VISCA / SAMSUNG / Pelco.D/P |
Day & Night |
Color / B&W / Auto |
Sync System |
Inter-sync |
Mini. Illumination |
Color: 0.1 Lux; IR B&W: 0.01 Lux |
Video output |
CVBS (1Vp-p-p 75 ohm) |
SNR |
≥48dB |
Image Sensor |
1/3" SONY CCD |
Effective pixels (H*V) |
PAL:960*582 / NTSC:967*494 |
IRCUT |
Optional IRCUT |
AUTO IRIS |
-- |
FNO./Focal Length |
f=5mm~50mm F/2 |
FOV (W~T) |
H:51.8°~5.86° V:39.1°~4.4° |
OSD Menu |
Support |
Lens Initialization |
Auto |
CameraID SET |
SONY Protocol 0~6553 / SAMSUNG Protocol 0`255 |
Exposure Mode |
Auto/Manual |
AWB |
Auto/Indoor/Outdoor/Manual |
Focus Mode |
Auto/Manual |
Picture Effects |
Auto/Color/B&W/Negative |
Backlight Compensator |
Support |
Contrast |
Adjustable |
Saturation |
Adjustable |
Mirror Image |
Support Horizontal |
Digital Zoom | DSS |
-- |
Image Freeze |
-- |
Image Rollovers |
-- |
WDR |
D-WDR |
DNR |
2D DNR |
Unit Size |
38.6(W)* 41(H)* 64.6(L) mm |
N.W. |
100g |
Working Condition |
-10°C~50°C, 10%RH~60%RH |
Power Supply |
DC 12V±10% |
Power consumption |
2.5W MAX |
